TourGo Aluminum Stage Lighting Truss Trolley / Truss Cart for 400mm Truss Transporting

The Truss Dolly Kit is a complete solution for transporting straight sections of 400mm truss properly and easily. The Truss Dolly Kit includes (2) two wheel dollies with heavy duty polyurethane coated casters, (10) ten truss spacers with plastic coated saddles, and (2) two ratchet straps. The Truss Dolly Kit can accommodate up to (12) sections of straight truss of any length. Used properly, there is no metal to metal contact between truss sections, preventing scratches, wear, and extending the life of the truss. The Truss Dolly Kit is also compatible with other brands of 290mm box truss.





Truss Dolly Specifications:

Capacity: 12 straight truss sections, any length

Fits: 2 in (50 mm) chord truss

Total kit weight: 35.7 lb. (16.2 kg)

Dolly Dimensions: 25.5 in. x 2.3 in. x 9.85 in (650 mm x 60 mm x 250 mm)

Truss Spacer Dimensions: 24.8 in. x 2 in. x 3.4 in. (630 mm x 50 mm x 85 mm)

Ratchet Strap Dimensions: 19.7 ft. x 1 in. (6,000mm x 25 mm)

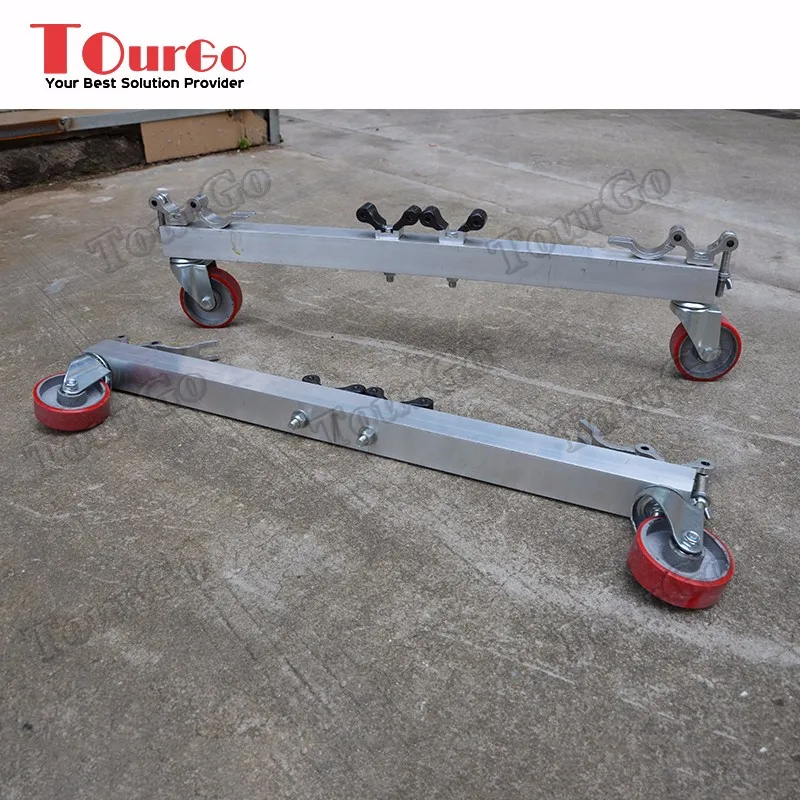

Truss Dolly:

Truss Spacers:

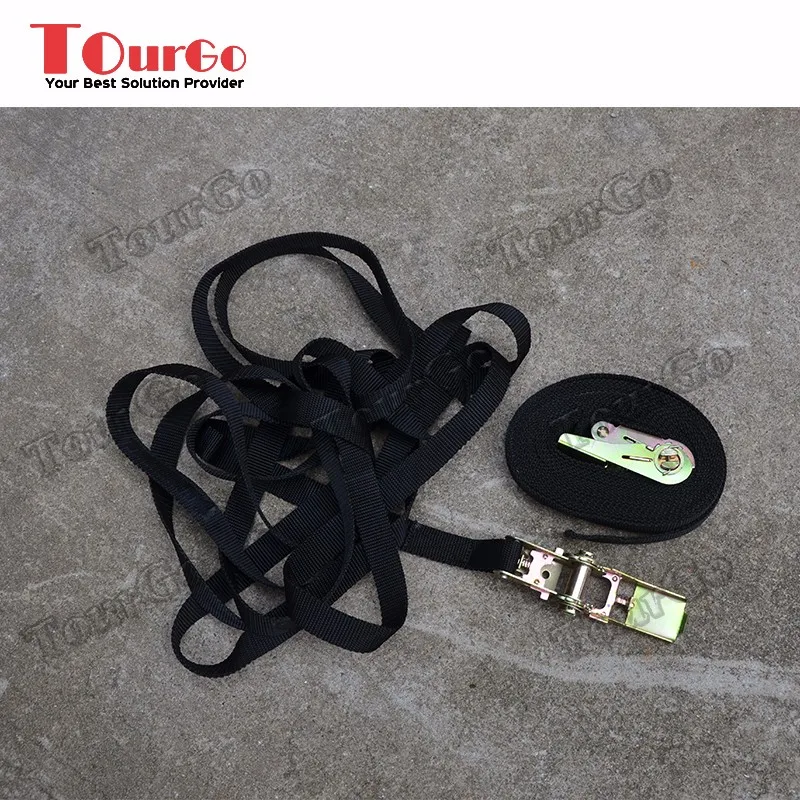

Ratchet Straps:

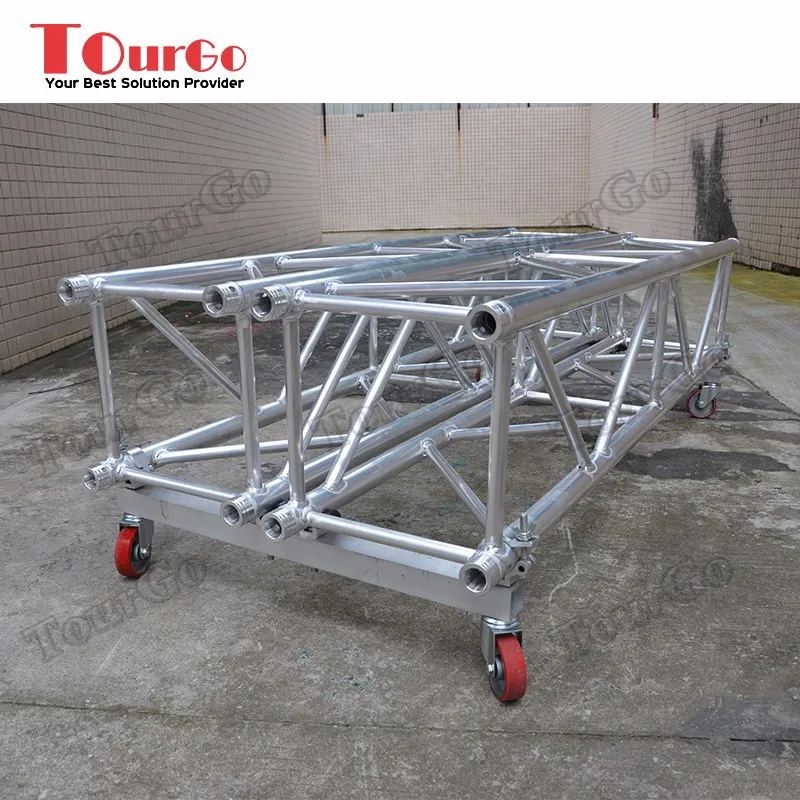

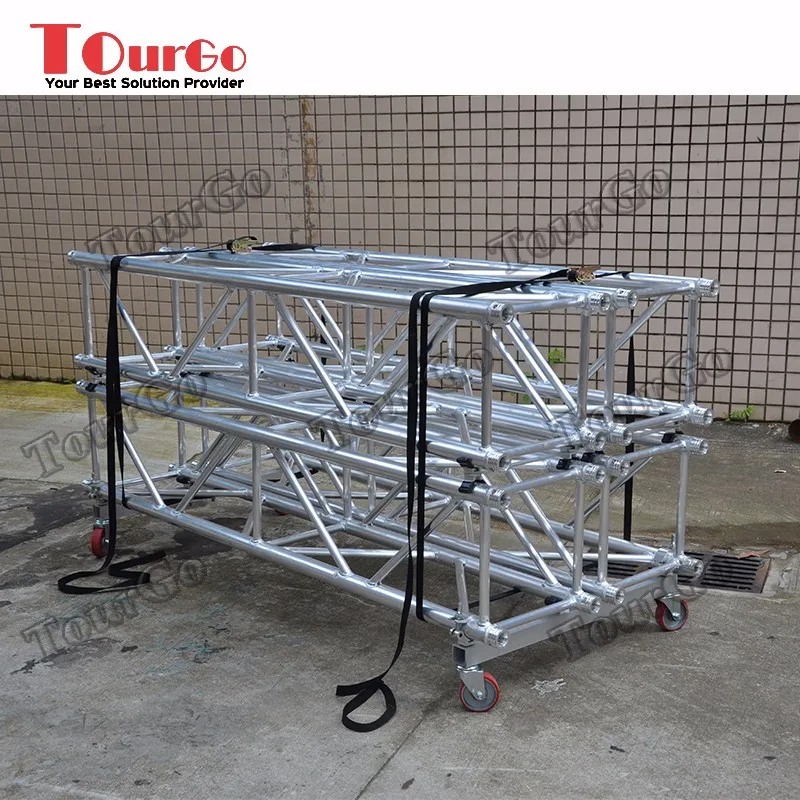

For Transporting Truss:
