Product Model : TG-Big wheel

Product Features :


  • captcha

Product Detail



Product Tags

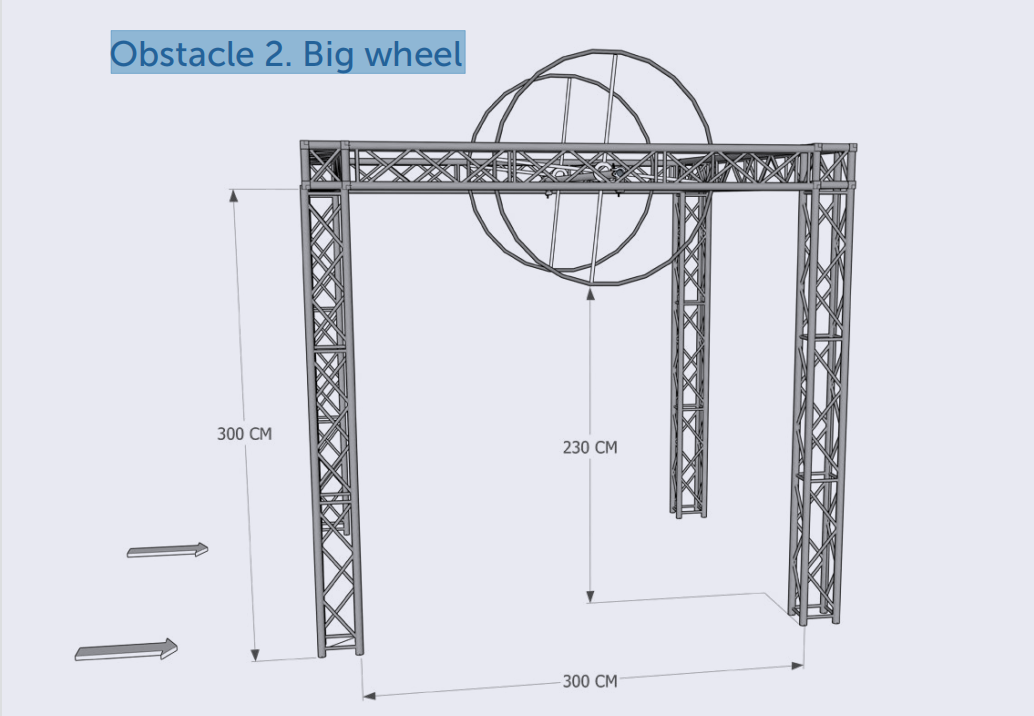

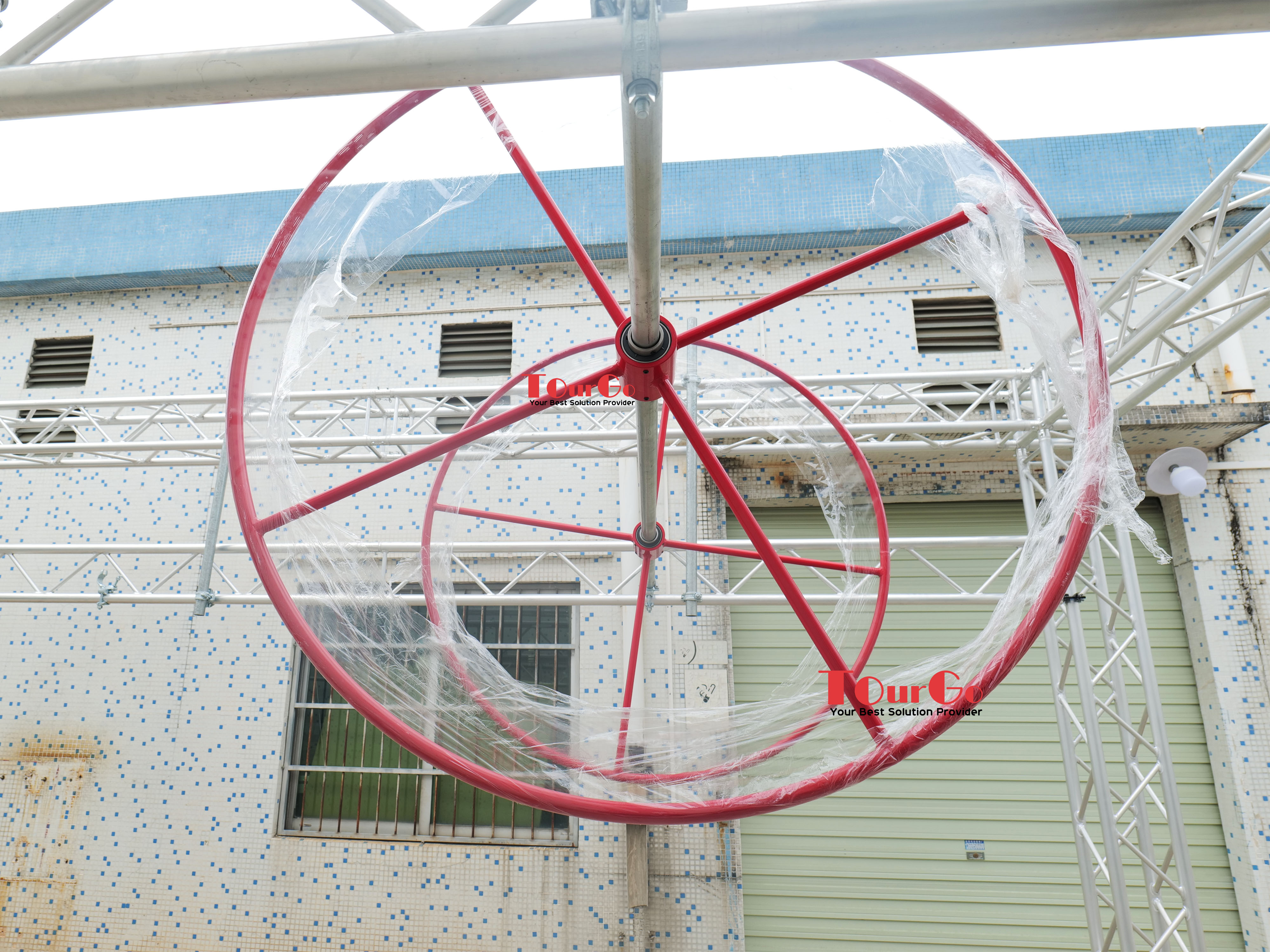

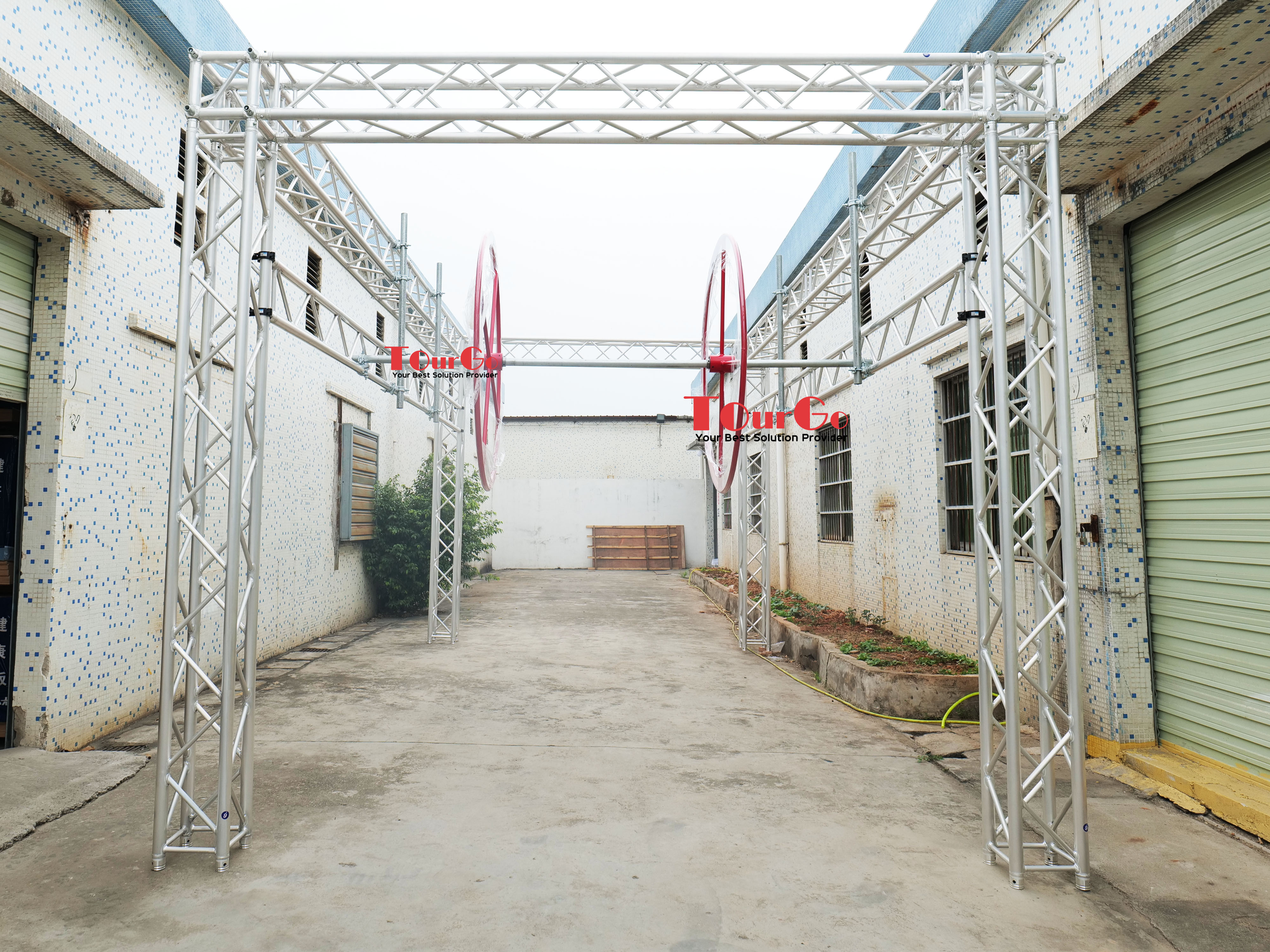

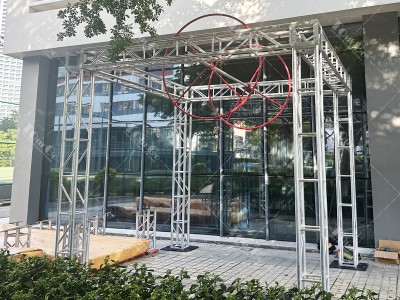

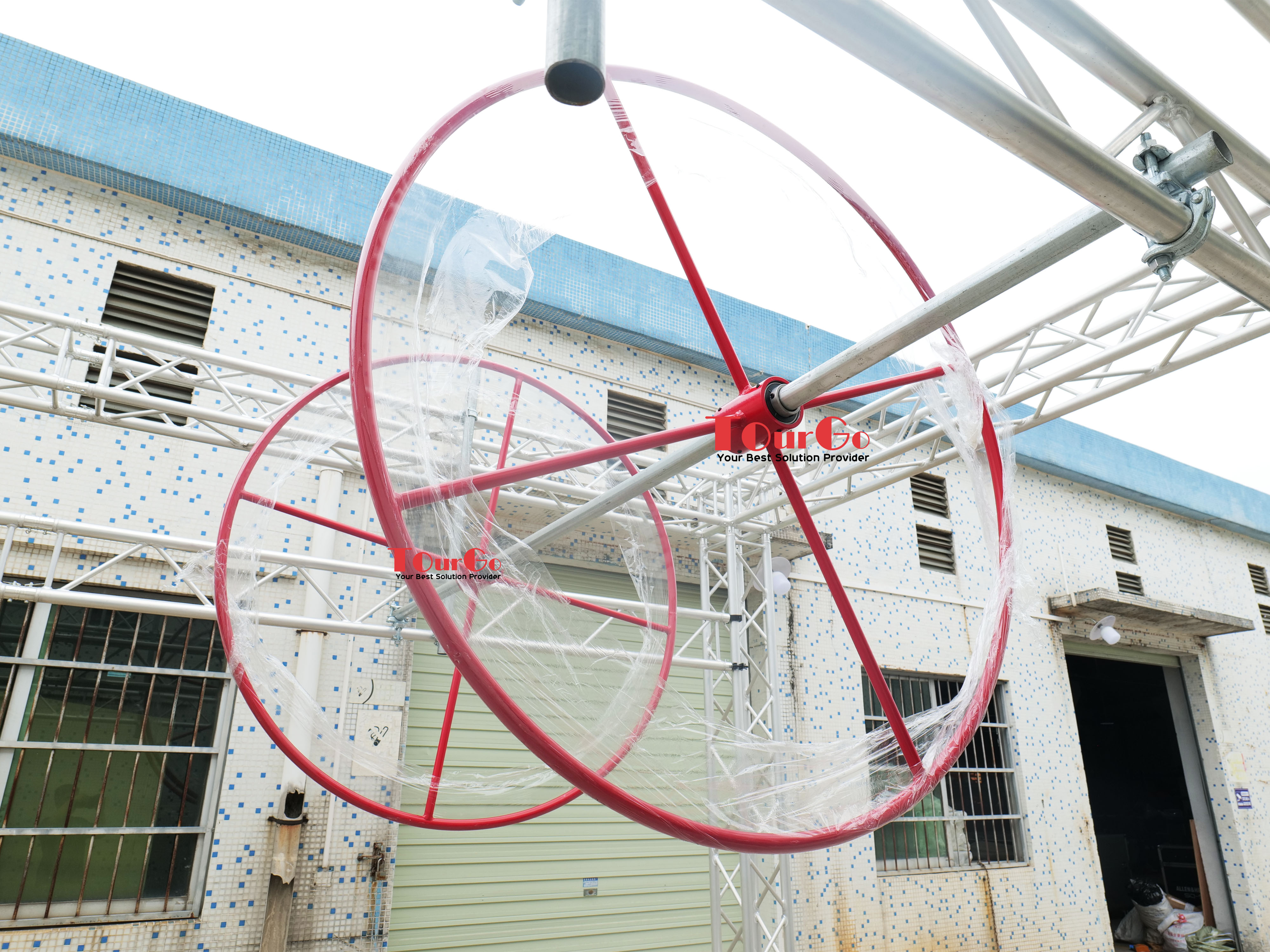

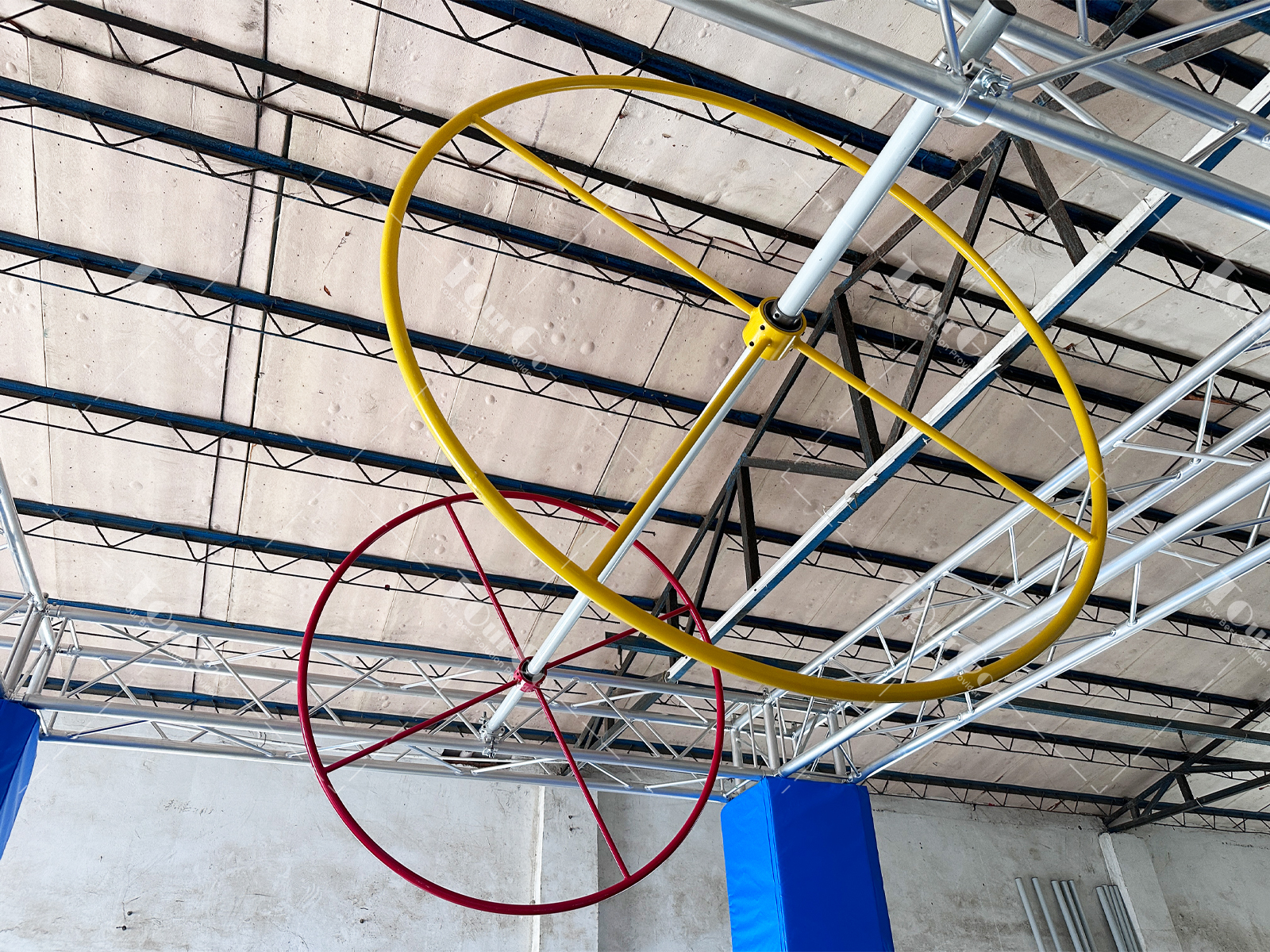

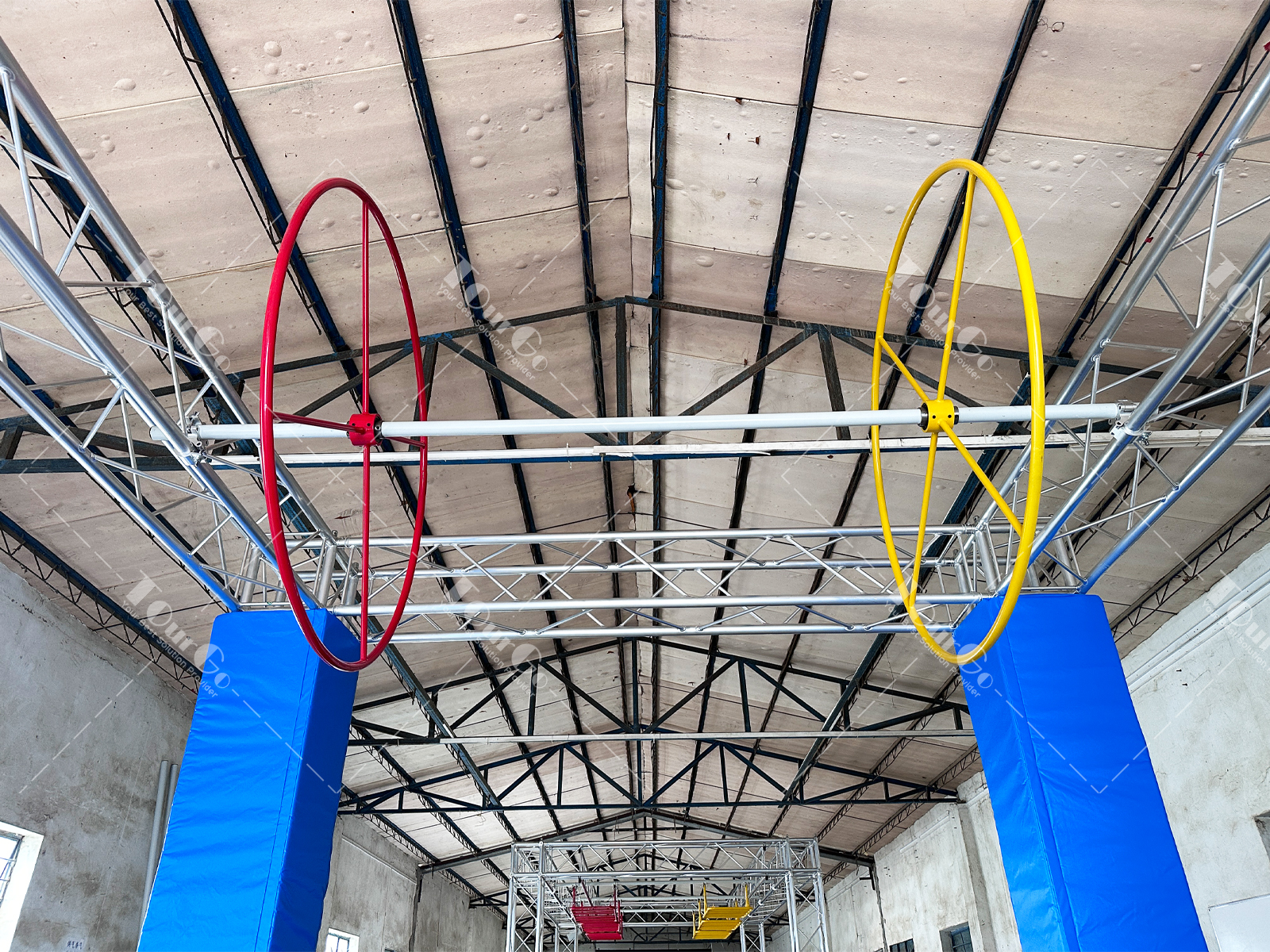

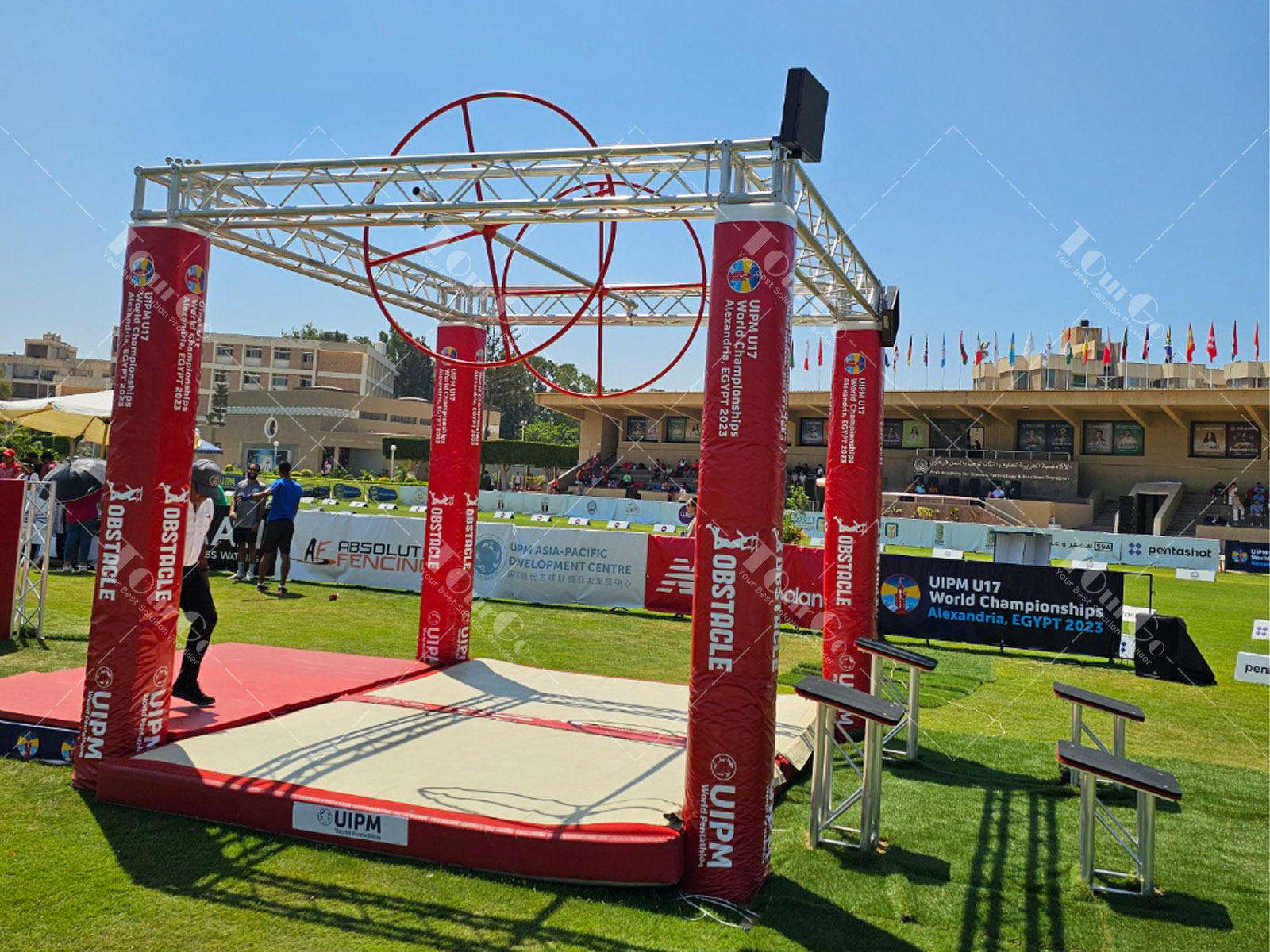

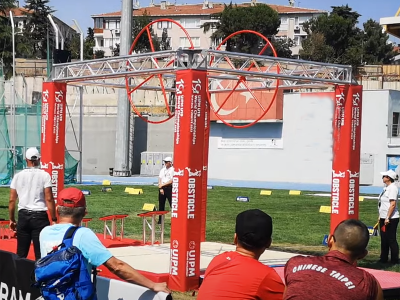

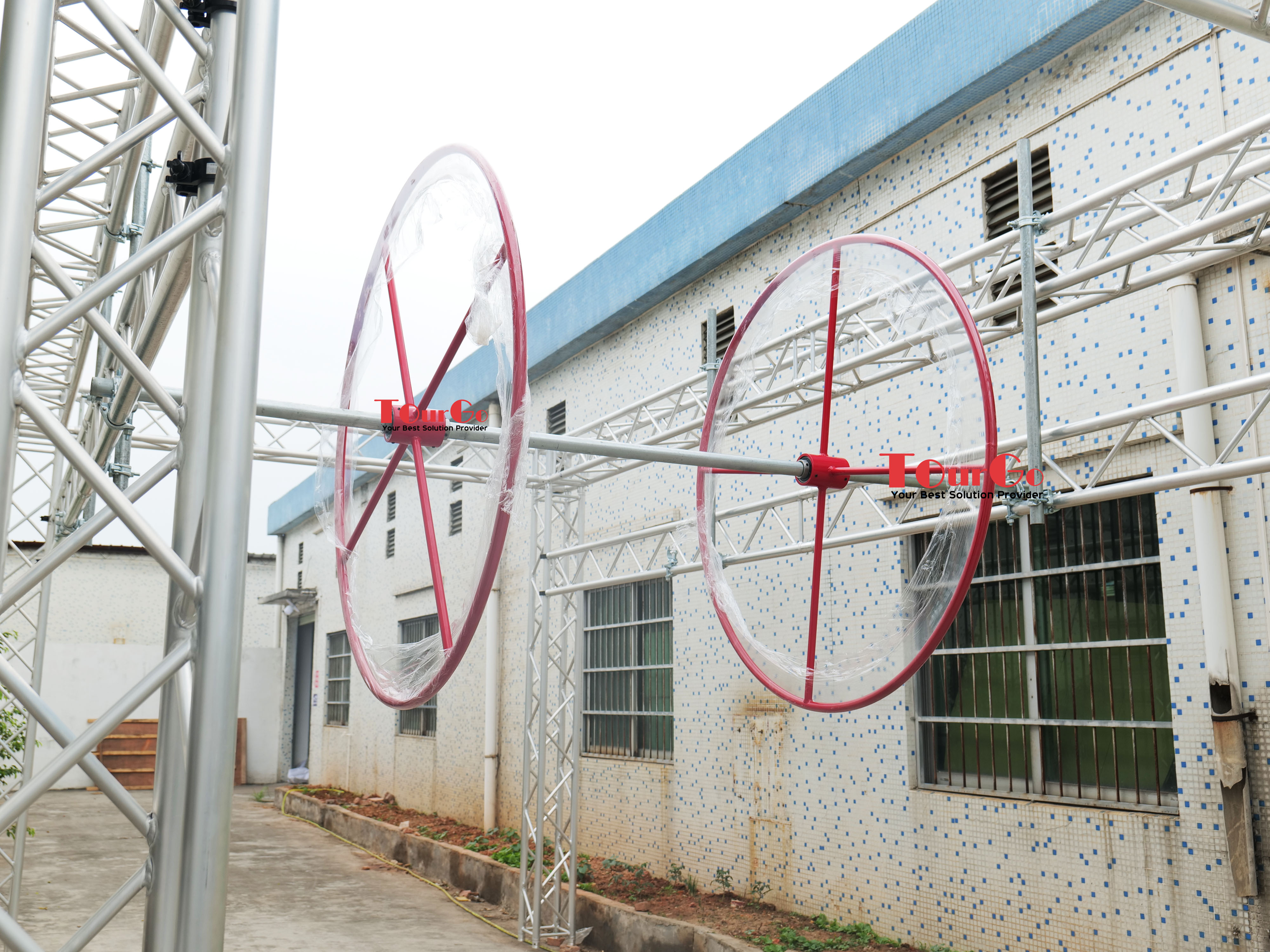

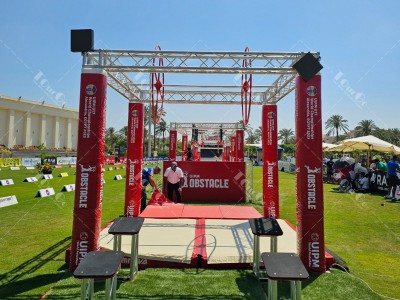

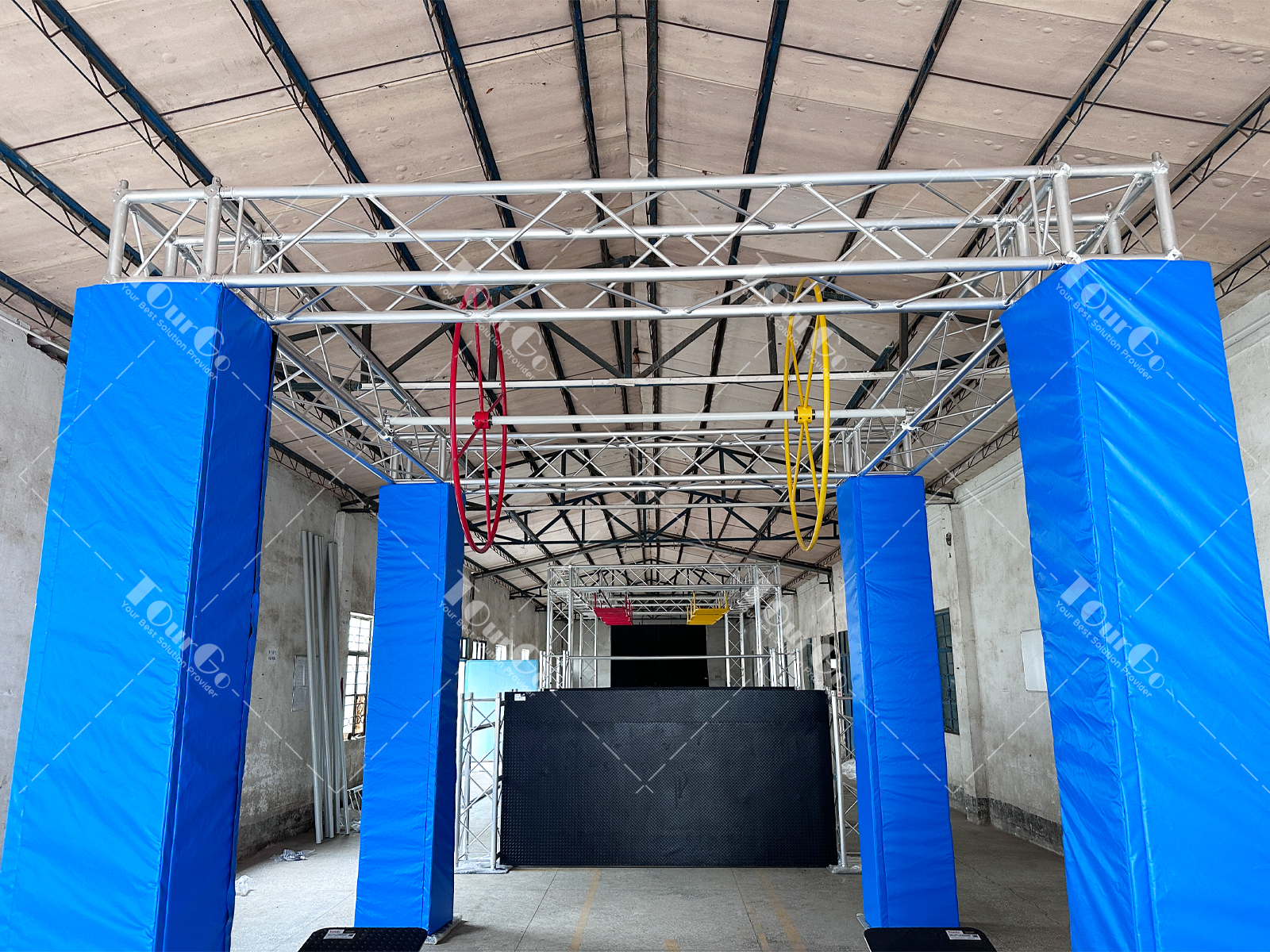

UIPM Obstacle 2. Big wheel
UIPM Obstacle 2. Big wheel
UIPM Obstacle 2. Big wheel

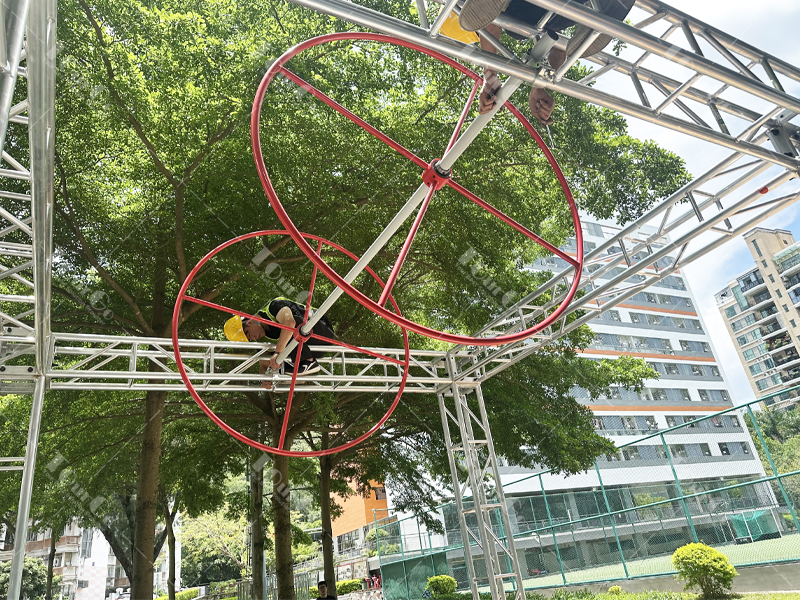

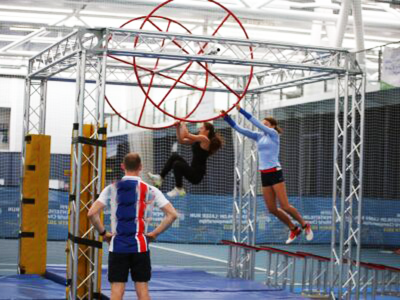

Jump from the previous obstacle or platform, grasping
the wheel and swinging forward. Touching the ground
between the platforms (or start/finish lines) is forbidden.
Lateral elements spacing……………………………………… 180cm
Support bar at ………………………………………………………..170cm
Wheel diameter ………………………………………………….. Ø160cm
Wheel height (lowest part) ……………………. 230cm (+/-5cm)
Wheel spoke diameter ………………………………………………3cm
Bar wall thickness (steel) …………………………………………..1mm
Wheel wall thickness (6082 T6 Aluminium) ………….. 2mm
