Ground Support Stabilizing 1M / 3.28ft T-Base for LED Screen Wall Stacking for F32 or 12-inch Bolt Truss Segments
Product Detail
Specifications
FAQ
Product Tags

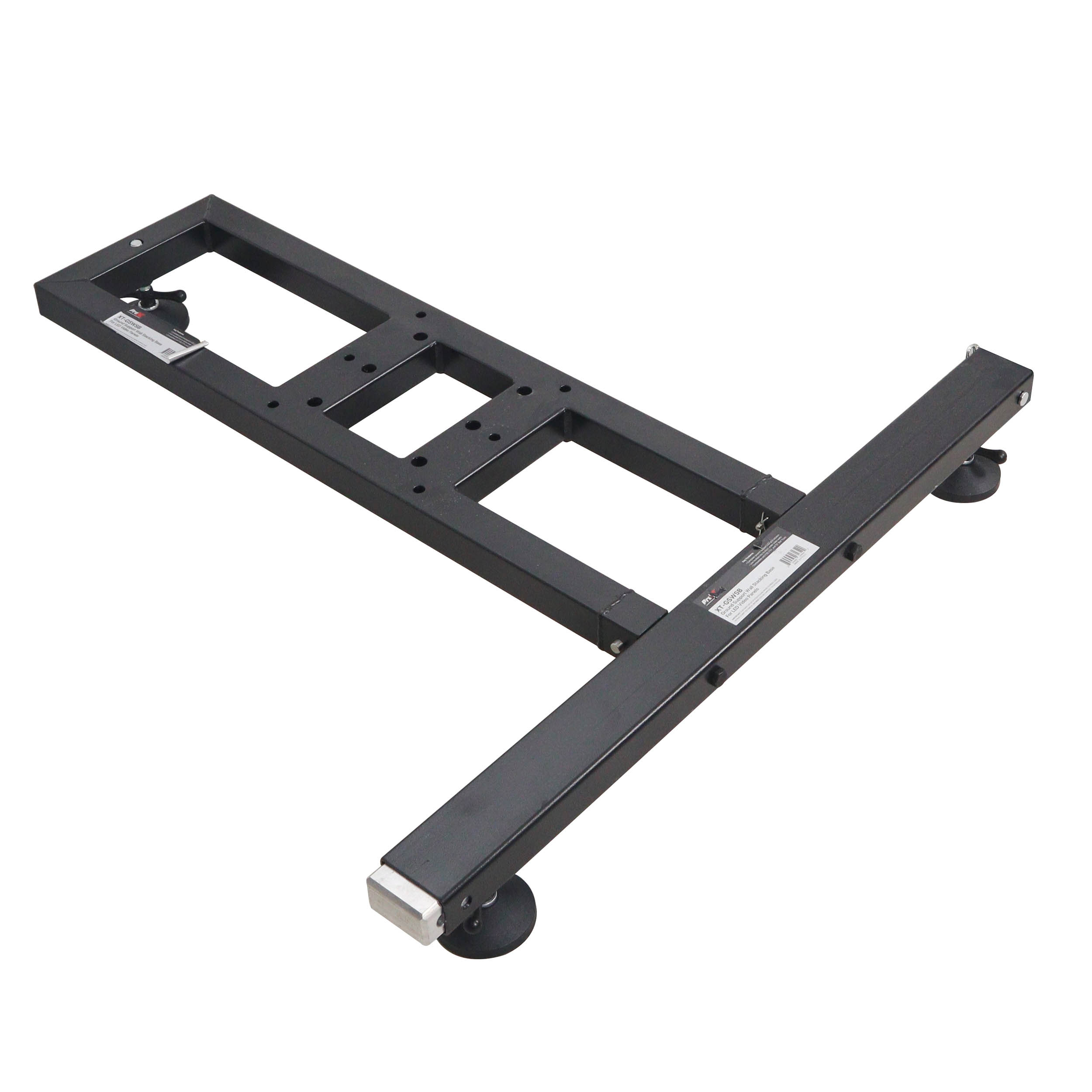

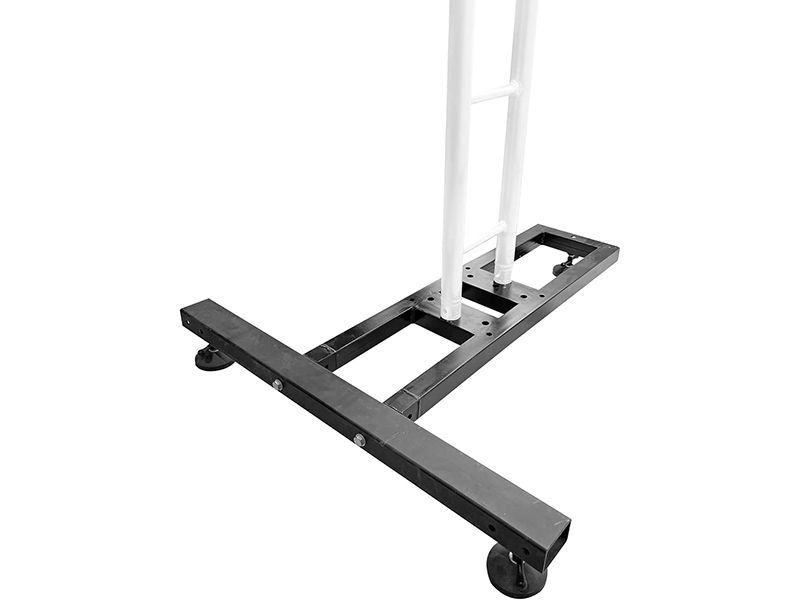

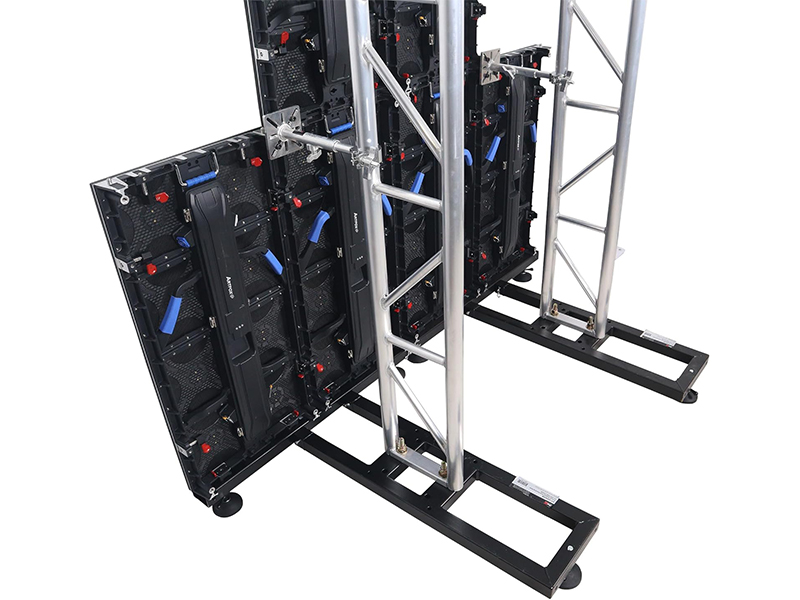

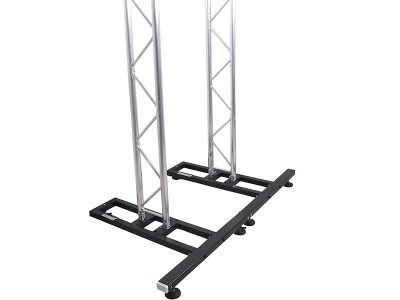

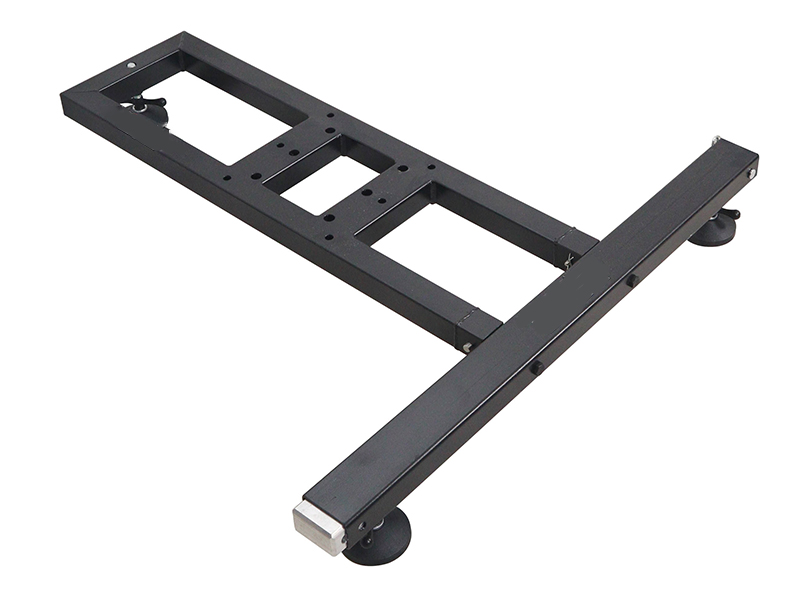

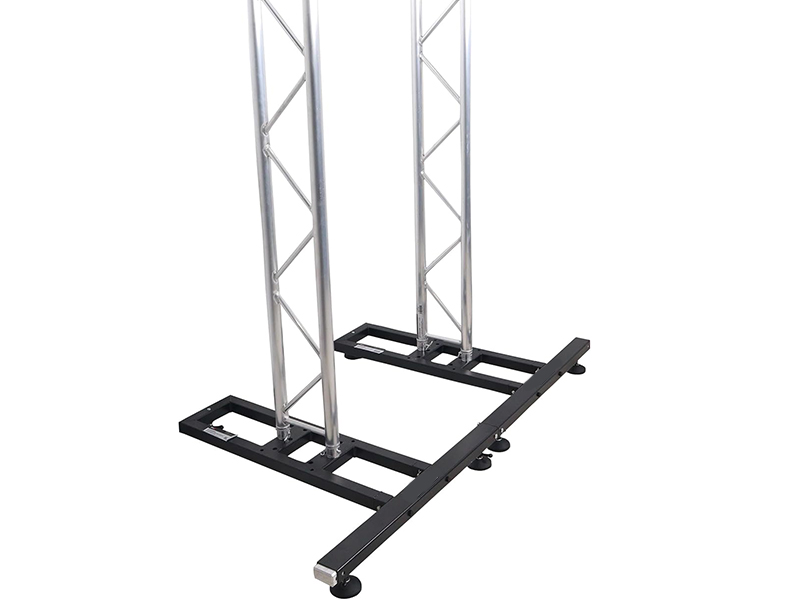

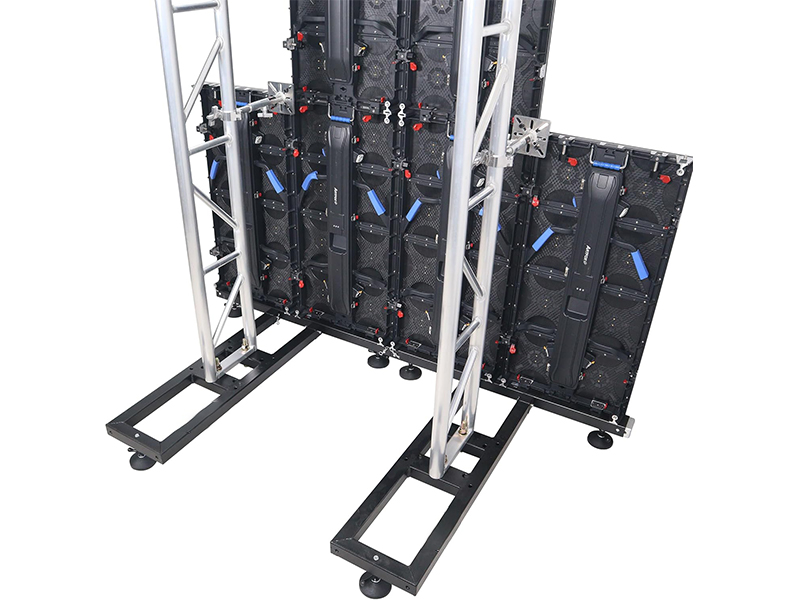

TourGo TG-GSWSB Ground Support Stabilizing T-Base for LED Wall Stacking is ideal when you need a base that takes up a minimal amount of storage and cargo space. This allows easy and quick setup for LED panel walls, saving time and effort rather than most conventional and cumbersome mounting stands. This Ground Support T-Base supports a single F32 or 12-inch bolt on the I-Beam Truss Segment that can be mounted to the center of the base. Each Ground Support T-Base can be linked with multiple units to support lengthier LED stage setups.
The Ground Support Base is rugged and indestructible made from steel materials. Each T-Base is equipped with three height-adjustable leveling feet (that can be removed) when you want to bolt the hardware into the floor for permanent installations. This base can be supported by TG-TC5LEDPA Telescoping LED Wall Panel Pole Clamps (Sold Separately).
DISCLAIMER: It’s recommended that they be weighted down at the rear of the base as a safety measure to prevent accidents.Truss, clamps, video panels, and any other third-party products shown are for display purposes only and are not included. To secure your system and prevent falling over of your led support system ballast is needed on every base unit (each meter). The amount of ballast is depending on the height and weight of your screen.
Recommended Ballast loading per base unit every Meter (TG-GSWSB):
Height Screen Ballast LBS
2.00 Meter 25 lbs
2.50 Meter 50 lbs
3.00 Meter 75 lbs
3.50 Meter 125 lbs
4.00 Meter 150 lbs
1. Why your factory provide not only lighting truss, but also flight case, portable stage, pipe and drape ,ect ?
Actually, the reason is very simple. All our product need the similar raw material , like plywood, aluminum alloy tube. We just need buy the professional machines, hire the skillful workers and enhance the R& D Team. We hope we could provide “ One-Stop service” for our clients.
Our concept is “ Tourgo , Build your dream” Our goal is to win the bright future and be the No. 1 Pro sound & Light equipment manufacturer.
2. Does Tourgo company provide the OEM service?
Yes, Tourgo could provide the OEM service according to your request.
We have the ten-year designers team, the customized flight case, portable stage, and lighting truss also is available, just need your idea!
3. Does Tourgo company offer warranty for the sold products?
Only if your products are purchased from Tourgo company, we promise life time warranty. In other words, if your products are purchased directly from us or our dealers, you can enjoy such warranty.
4. Do you provide the flight cases parts for replacement I purchased from Tourgo company ?
Well, almost all our flight cases parts are replaceable. You can replace them yourself. If you want to get them, you can contact us soon.
5. What is the mean of Alphabet “U” in rack case catalog?
For rack case, we offer 2U, 4U, 6U, 8U and other models of “U” cases. “U” here is a unit referring to inner height of the rack case . Usually, 1 U equals 1.75” (4.45cm).
6. I want to distribute your products in my country. How can I become a distributor ?
Tourgo has searched global deals for all our products. We will provide preferential offers for all deals, especially those in large amount. For most information about dealership, please visit our Distributor Wanted.
7. What is the MOQ for your products?
Tourgo requires no minimum order quantity, and we can ship single item samples or large orders worldwide for any clients who are in need of our products
8. Can I get any discount for my order?
Yeah, you can contact our sales team, depending on the amount of your order
- The products you need
- The exact desired order quantity
- Your desired time frame
- Any special packing instructions
With this information we will get back to you with a quotation.
We also offer limited time promotion, please notice our post in our website.
9. What is your payment term, delivery time? Do you have the reliable freight agent?
The payment term is T/T, Western Union.
Delivery time is 7 – 15 days after we get the payment. Surely, if you need the goods urgently, we try our best to meet your demand. Moreover, we will send your goods pictures to you before the shipping
Yes, as a leading manufacturer, we have the reliable freight agent and has done the business with them for many years. If you have your own agent, we would like to coordinate with them fully.
10. Will you send the drawing of the custom product for our confirmation before the production?
Yes, Absolutely! Like custom flight case, lighting truss project, portable stage project. We will provide the professional drawing for your confirmation before our production.
