5-Channel Left Turn Guardian Cable Protector for 1.5″ diameter cables

5-Channel Left Turn Guardian Cable Protector for 1.5″ diameter cables
  • rubber-cable-protector-left
  • Guardian-Cable-Protector
  • cable-protector-left
  • cable-protector
  • 5-Channel-Cable-Protector

Product Model : TG-CP-2L

Product Features : Attaches to the Rubber Cable Protector with interlocking tabs to curve up to 5 cables around warehouse racking, poles, and other objects
Creates a 22.5° left curve
Can be joined with multiple turn sections to create larger curves (4 corner sections needed to make a 90° curve)
(4) 38mm x 38mm cable channels and a (1) 41mm x 41 mm center channel for various size cables and hoses
Heavy duty rubber base and yellow PVC lid provides a 9,000lb capacity
18,000 lbs. per axle capacity
Raised tread to aid traction
Includes a 1 year manufacturer warranty

INQUIRY DETAILS *

INQUIRY DETAILS
  • captcha

Product Detail

Specifications

FAQ

Product Tags

5-Channel Left Turn Guardian Cable Protector for 1.5″ diameter cables

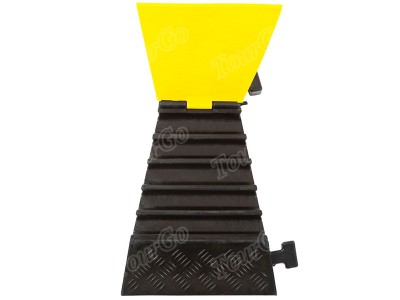

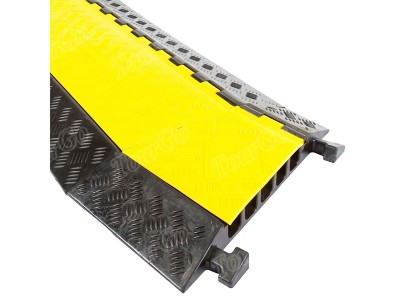

Curve your cable protector system around warehouse racking, machinery, or other obstacles with our 22.5° left-turn curve section. It is designed to protect up to five 1.5″ diameter cables from being damaged by vehicles weighing up to 18,000 lbs per axle. Connect this Guardian five-channel right-turn cable protector to other straight and turn sections using their built-in T-connectors to create a compete cable protection and management system.

  • Protects 1.5″ diameter cables and wires
  • Withstands up to 18,000 lbs per axle
  • Protects up to five cables or wires from any type of traffic
  • Heavy-duty rubber construction weighs just 9 lbs
  • Pair with straight and right-turn Guardian cable protectors to create a complete cable management and protection system

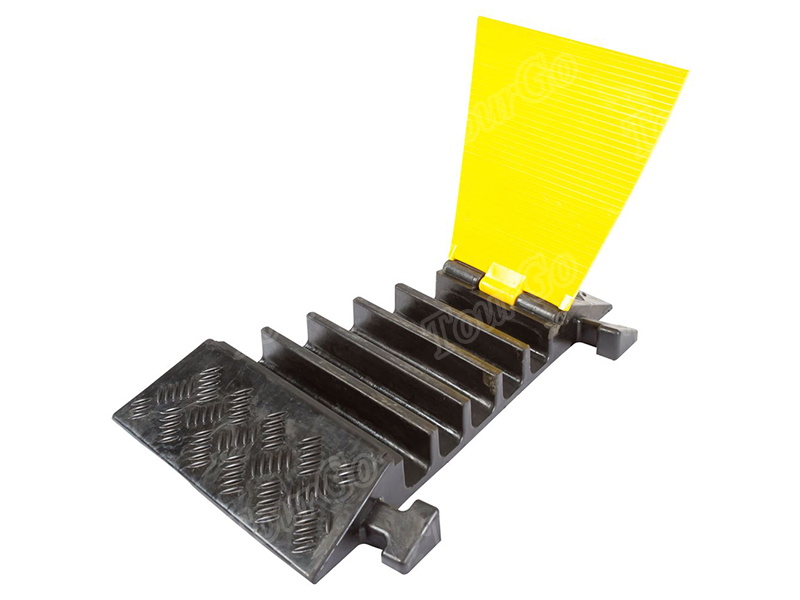

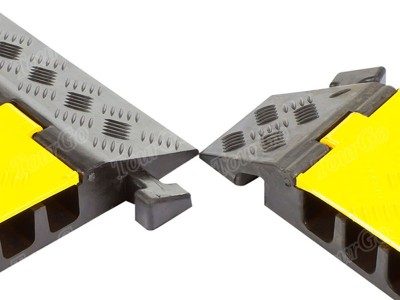

Curve cables around racks, poles, or other objects with these left-turn sections for the Guardian five-channel rubber cable protectors. Each left-turn piece attaches to the rubber cable protector using their built-in interlocking T-connectors. The left-turn pieces can be joined with multiple curve pieces to create larger curves (four sections are required to make a 90° turn), or used alone to create a 22.5° bend. As with the standard Guardian rubber cable protector, these left-turn sections have four 1.5″ diameter channels and a larger 1.625″ diameter center channel, allowing them to protect various size hoses and cables. With a heavy-duty commercial-grade rubber base and a yellow PVC lid, the rubber cable protector left-turn sections can hold up to 18,000 lbs per axle. A raised tread surface on both the base and the lid of the rubber cable protector turn section provides enhanced traction for vehicle and pedestrian traffic. The five-channel rubber cable protector left curve sections are backed by a one-year manufacturer’s warranty.

Features

  • Attaches to the Rubber Cable Protector with interlocking tabs to curve up to 5 cables around warehouse racking, poles, and other objects
  • Creates a 22.5° left curve
  • Can be joined with multiple turn sections to create larger curves (4 corner sections needed to make a 90° curve)
  • (4) 38mm x 38mm cable channels and a (1) 41mm x 41 mm center channel for various size cables and hoses
  • Heavy duty rubber base and yellow PVC lid provides a 9,000lb capacity
  • 18,000 lbs. per axle capacity
  • Raised tread to aid traction
  • Includes a 1 year manufacturer warranty
  • Previous:
  • Next:

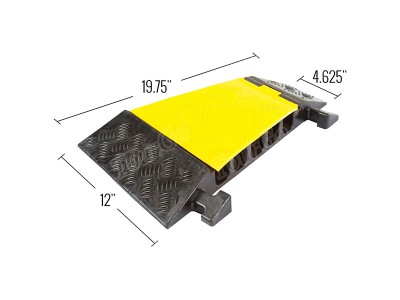

  • 5-Channel Left Turn Guardian Cable Protector for 1.5″ diameter cables Specifications

    1.5″

    18,000 lbs per axle

    5

    9 lbs

    Rubber

    12″

    19.75″

    2″

    T
