TourGo U-Torm Modular Truss / U Frame Truss

TourGo U-Torm Modular Truss / U Frame Truss
  • U-Torm Modular Truss

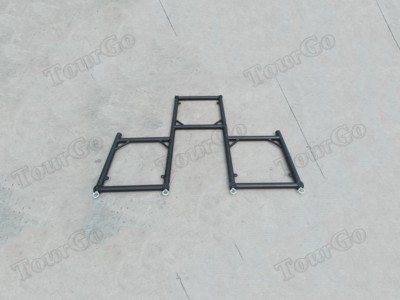

  • U Torm U Top Hang Lights (1)

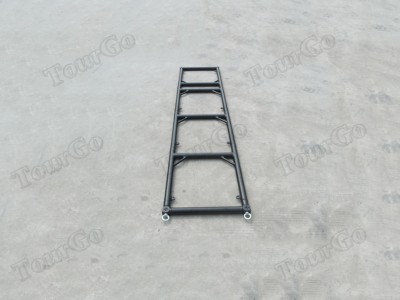

  • U Torm U Top Hang Lights (2)

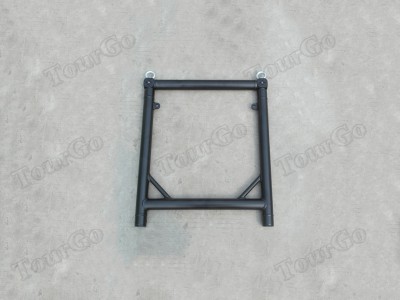

  • U Torm U Top Hang Lights (3)

Product Model : TG-UT02

Product Features :
1).EN AW 6082-T6 aluminum alloy
2).onical connecting element with pin and safety clip

INQUIRY DETAILS *

INQUIRY DETAILS
  • captcha

Product Detail

Specifications

FAQ

Product Tags

The TourGo Truss U-Torm is a flexible solution to hanging drop positions for lighting fixtures. As well as projection or other equipment in a completely modular design.

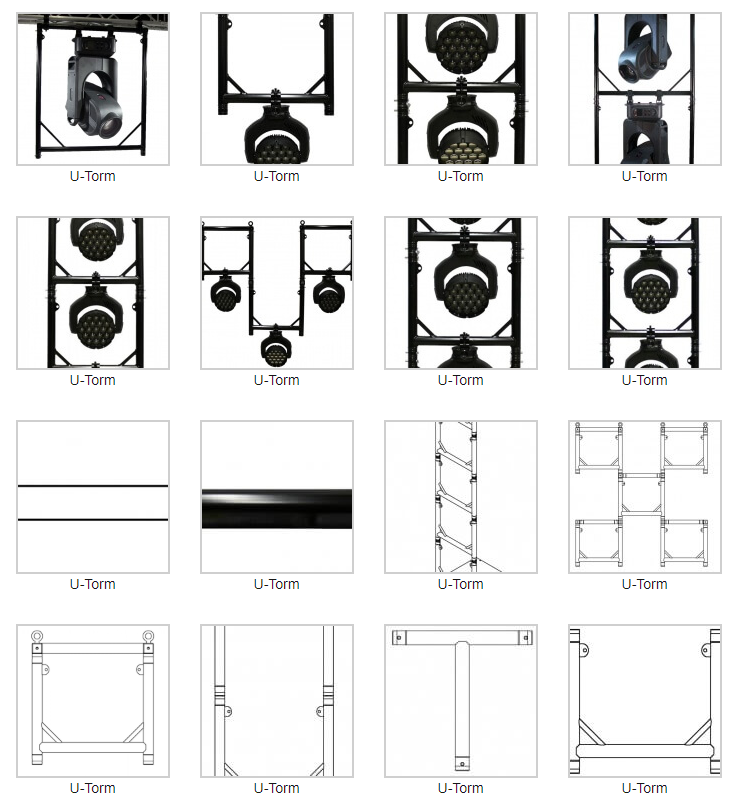

Comprised of lightweight modules and sections, the U-Torm allows endless configurations for single fixtures, double hangs or ladders of multiple fixtures, which can also be expanded to create a wall of hanging positions.

The U-Torm is available in two standard sizes. But can be built upon and customized using the standard Truss F31 range of 2″ pipes, T sections, spigots , and corner adapters. These all fit seamlessly into the U-Torm allowing you to create hanging positions or structures in an unlimited variety of combinations.

The U-Torm system has been designed for quick deployment and take down in any environment. For both sizes, the lightweight aluminium construction design is reinforced to provide added durability and stability.

Handy safety point attachments are fitted on each side of the U-Torm to cater for multiple fixture types.

The U-Torm 50 is capable of taking center points load of 110 lbs (50 kg). Additionally if hung in a ladder configuration it is possible to mount up to ten fixtures.

The larger U-Torm 100 is able to take a center load of up to 220 lbs (100 kg). And up to five units can be mounted in a ladder formation.

U-Torm brackets are available in a natural aluminum or black finish as standard. As well as other colors can be provided on request.




http://www.tourgosolution.com/u-torm

http://www.tourgosolution.com/u-torm

http://www.tourgosolution.com/u-torm

http://www.tourgosolution.com/u-torm

  • Previous:
  • Next:
  • U-Torm :

    Dimensions (W x D x H): 60 x 5 x 65 cm
    Weight: 7 lbs / 3.2kg
    Center point loading: 110lbs / 50kg
    Color: Black and customized
    Maximum hung U-Torm units: 10
    EN AW 6082-T6 aluminum alloy
    Conical connecting element with pin and safety clip (2 included)
    U-Top:

    Dimensions with eyebolt (W x D x H):60x5x11cm
    Weight: 4 lbs / 2 kg
    Center point loading: 220lbs / 100kg
    Color: Black and customized
    EN AW 6082-T6 aluminum alloy
    Conical connecting element with pin and safety clip (2 half conicals included)



    http://www.tourgosolution.com/u-torm

    1.  Why your factory provide not only  lighting truss, but also  flight case, portable stage, pipe and drape ,ect ?



    Actually, the reason is very simple. All our product need the similar raw material , like plywood, aluminum alloy tube. We just need buy the professional machines, hire the skillful workers and enhance the R& D Team. We hope we could provide “ One-Stop service” for our clients.

    Our concept is “ Tourgo , Build your dream”  Our goal is to win the bright future and be the No. 1 Pro sound & Light equipment manufacturer.



    2. Does Tourgo company provide the OEM service?



    Yes, Tourgo could provide the OEM service according to your request.

    We have the ten-year designers team, the customized flight case, portable stage, and  lighting truss also is available,  just need your idea!



    3. Does Tourgo company offer warranty for the sold products?



    Only if your products are purchased from Tourgo company, we promise life time warranty. In other words, if your products are purchased directly from us or our dealers, you can enjoy such warranty.



    4. Do you provide the flight cases parts for replacement I purchased from Tourgo company ?



    Well, almost all our flight cases parts are replaceable. You can replace them yourself. If you want to get them, you can contact us soon.



    5. What is the mean of Alphabet “U” in rack case catalog?



    For rack case, we offer 2U, 4U, 6U, 8U and other models of “U” cases. “U” here is a unit referring to inner height of the rack case . Usually, 1 U equals 1.75” (4.45cm).



    6. I want to distribute your products in my country. How can I become a distributor ?



    Tourgo has searched global deals for all our products. We will provide preferential offers for all deals, especially those in large amount. For most information about dealership, please visit our Distributor Wanted.



    7. What is the MOQ for your products?



    Tourgo requires no minimum order quantity, and we can ship single item samples or large orders worldwide for any clients who are in need of our products



    8. Can I get any discount for my order?



    Yeah, you can contact our sales team, depending on the amount of your order

    - The products you need

    - The exact desired order quantity

    - Your desired time frame

    - Any special packing instructions

    With this information we will get back to you with a quotation.

    We also offer limited time promotion, please notice our post in our website.



    9. What is your payment term, delivery time? Do you have the reliable freight agent?



    The payment term is T/T, Western Union.

    Delivery time is 7 – 15 days after we get the payment. Surely, if you need the goods urgently, we  try our best to meet your demand. Moreover, we  will send your goods pictures to you before the shipping

    Yes, as a leading manufacturer, we have the reliable freight agent and has done the business with them for many years. If you have your own agent,  we would like to coordinate with them fully.



    10. Will you send the drawing of the custom product for our confirmation before the production?



    Yes, Absolutely! Like custom flight case, lighting truss project, portable stage project. We will provide the professional drawing for your confirmation before our production.
