Bolt Truss 150x150mm –TourGo Aluminum Square Truss

Bolt Truss 150x150mm –TourGo Aluminum Square Truss

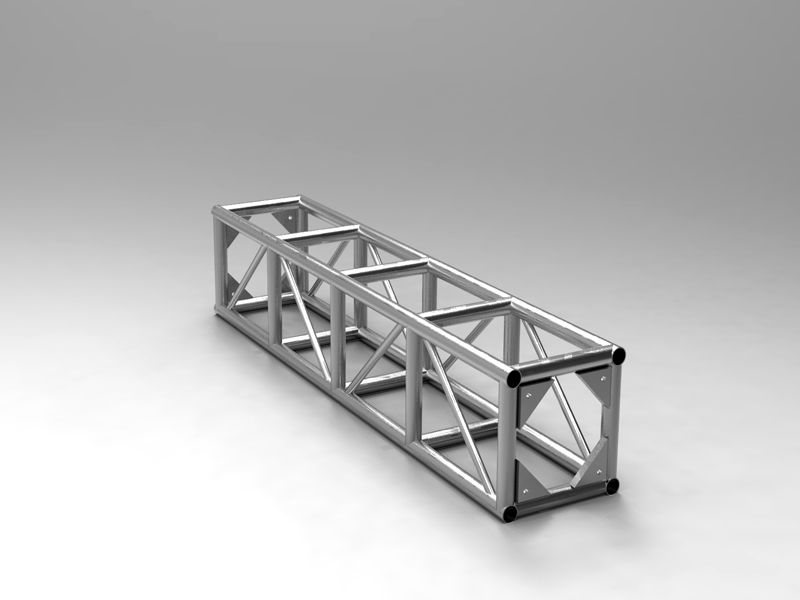

  • Box- Truss-150mm-150mm

Product Model : TG-B-SQ150

Product Features : 150*150mm,Main Tube:30*2mm,Brace Tube:14*1.5mm;Material:6082-T6;TUV Approved


  • captcha

Product Detail



Product Tags

Tourgo Bolt Truss ,we also called Lighting truss or stage truss ,truss systems which mainly are used to set up the portal frames, light stage … in different application .

For its extrahigh load carrying capacity, they also can be used to hanging lighting or LED Screen,sound speaker and some others equipments.


  • Previous:
  • Next:
  • Aluminum Bolt truss 150*150mm Specification :

    Material:6061-T6,150*150mm,main tube:32*2mm,brace tube:16*1.5mm

    Packing:bubble & carton

    150*150mm TG Aluminum Bolt truss; 1M;main tube:32*2mm,brace tube:16*1.5mm ;

    maximum span :6m ;Average total bearing 80kg,

    The Bolt truss often are used with accessories ,such as Sleeve block,Hinge,Basement,Top Section…and
    some others tower system ,which will be provide according to your exactly size and design .

    Size Options:0.5m/1m/1.5m/2m/2.5m/3m/3.5m/4m

    Shaped Options:Ladder/  Triangular/Square/Circle Truss

    Similar Products:

    250*250mm  TG Aluminum  Bolt truss; 1M;main tube:35*2mm,brace tube:20*2mm ;

    maximum span :10 m ;Average total bearing 150kg,

    300*300mm  TG Aluminum Bolt truss; 1M;main tube:50*3mm,brace tube:25*2mm ;

    maximum span :14 m ;Average total bearing 500kg,

    300*400mm  TG Aluminum  Bolt truss; 1M;main tube:50*3mm,brace tube:25*2mm ;

    maximum span :15 m ;Average total bearing 600kg,

    400*400mm TG Aluminum  Bolt truss; 1M;main tube:50*3mm,brace tube:25*2mm ;

    maximum span :16 m ;Average total bearing700kg,

    450*450mm  TG Aluminum  Bolt truss; 1M;main tube:50*3mm,brace tube:25*2mm ;

    maximum span :18 m ;Average total bearing 800kg,

    500*500mm  TG Aluminum  Bolt truss; 1M;main tube:50*3mm,brace tube:25*2mm ;

    maximum span :19 m ;Average total bearing 900kg,

    500*600mm  TG Aluminum  Bolt truss; 1M;main tube:50*3mm,brace tube:25*2mm ;

    maximum span :20m ;Average total bearing 1000kg,

    520*760mm  TG Aluminum  Bolt truss; 1M;main tube:50*3mm,brace tube:25*2mm ;

    maximum span :22m ;Average total bearing 1000kg,

    600*760mm TG Aluminum  Bolt truss; 1M;main tube:50*3mm,brace tube:25*2mm ;

    maximum span :24m ;Average total bearing 1000kg

    1000*1000mm TG Aluminum  Bolt truss; 1M;main tube:50*4mm,brace tube:25*2mm ;

    maximum span :26m ;Average total bearing 1000kg,

    1.  Why your factory provide not only  lighting truss, but also  flight case, portable stage, pipe and drape ,ect ?


    Actually, the reason is very simple. All our product need the similar raw material , like plywood, aluminum alloy tube. We just need buy the professional machines, hire the skillful workers and enhance the R& D Team. We hope we could provide “ One-Stop service” for our clients.

    Our concept is “ Tourgo , Build your dream”  Our goal is to win the bright future and be the No. 1 Pro sound & Light equipment manufacturer.


    2. Does Tourgo company provide the OEM service?


    Yes, Tourgo could provide the OEM service according to your request.

    We have the ten-year designers team, the customized flight case, portable stage, and  lighting truss also is available,  just need your idea!


    3. Does Tourgo company offer warranty for the sold products?


    Only if your products are purchased from Tourgo company, we promise life time warranty. In other words, if your products are purchased directly from us or our dealers, you can enjoy such warranty.


    4. Do you provide the flight cases parts for replacement I purchased from Tourgo company ?


    Well, almost all our flight cases parts are replaceable. You can replace them yourself. If you want to get them, you can contact us soon.


    5. What is the mean of Alphabet “U” in rack case catalog?


    For rack case, we offer 2U, 4U, 6U, 8U and other models of “U” cases. “U” here is a unit referring to inner height of the rack case . Usually, 1 U equals 1.75” (4.45cm).


    6. I want to distribute your products in my country. How can I become a distributor ?


    Tourgo has searched global deals for all our products. We will provide preferential offers for all deals, especially those in large amount. For most information about dealership, please visit our Distributor Wanted.


    7. What is the MOQ for your products?


    Tourgo requires no minimum order quantity, and we can ship single item samples or large orders worldwide for any clients who are in need of our products


    8. Can I get any discount for my order?


    Yeah, you can contact our sales team, depending on the amount of your order

    - The products you need

    - The exact desired order quantity

    - Your desired time frame

    - Any special packing instructions

    With this information we will get back to you with a quotation.

    We also offer limited time promotion, please notice our post in our website.


    9. What is your payment term, delivery time? Do you have the reliable freight agent?


    The payment term is T/T, Western Union.

    Delivery time is 7 – 15 days after we get the payment. Surely, if you need the goods urgently, we  try our best to meet your demand. Moreover, we  will send your goods pictures to you before the shipping

    Yes, as a leading manufacturer, we have the reliable freight agent and has done the business with them for many years. If you have your own agent,  we would like to coordinate with them fully.


    10. Will you send the drawing of the custom product for our confirmation before the production?


    Yes, Absolutely! Like custom flight case, lighting truss project, portable stage project. We will provide the professional drawing for your confirmation before our production.
