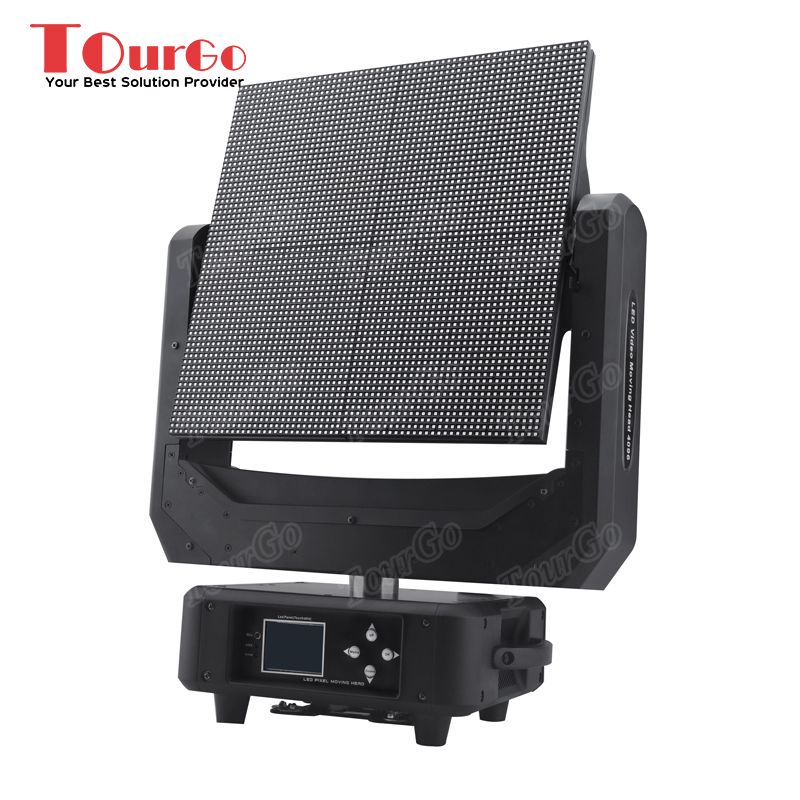

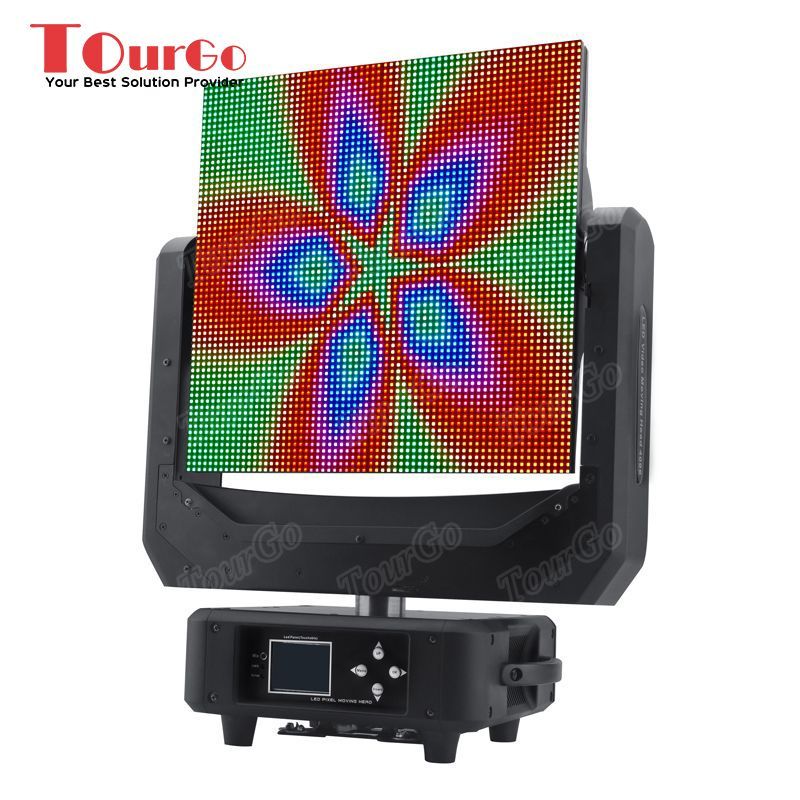

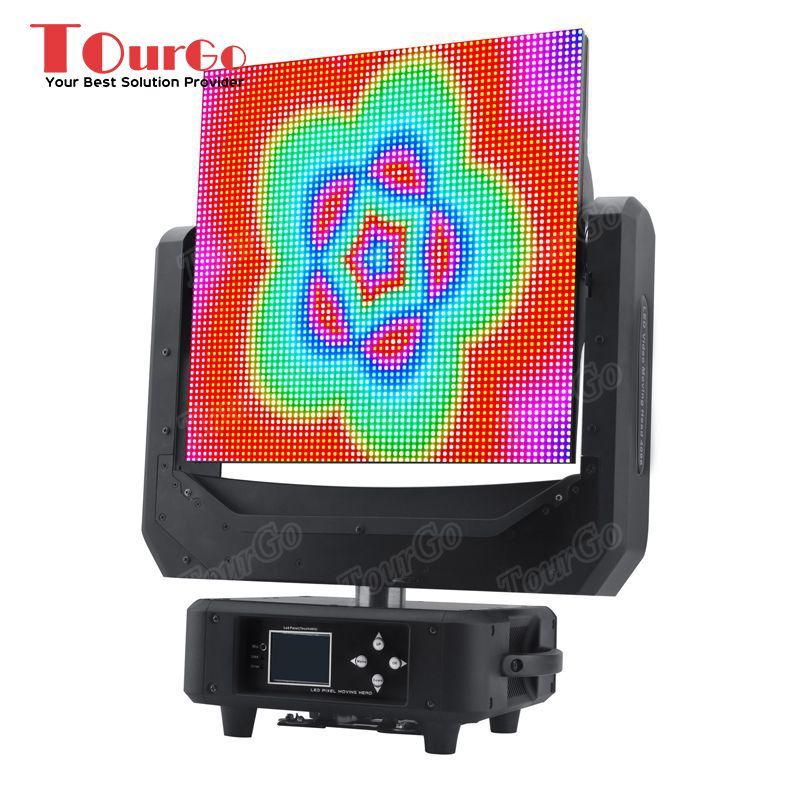

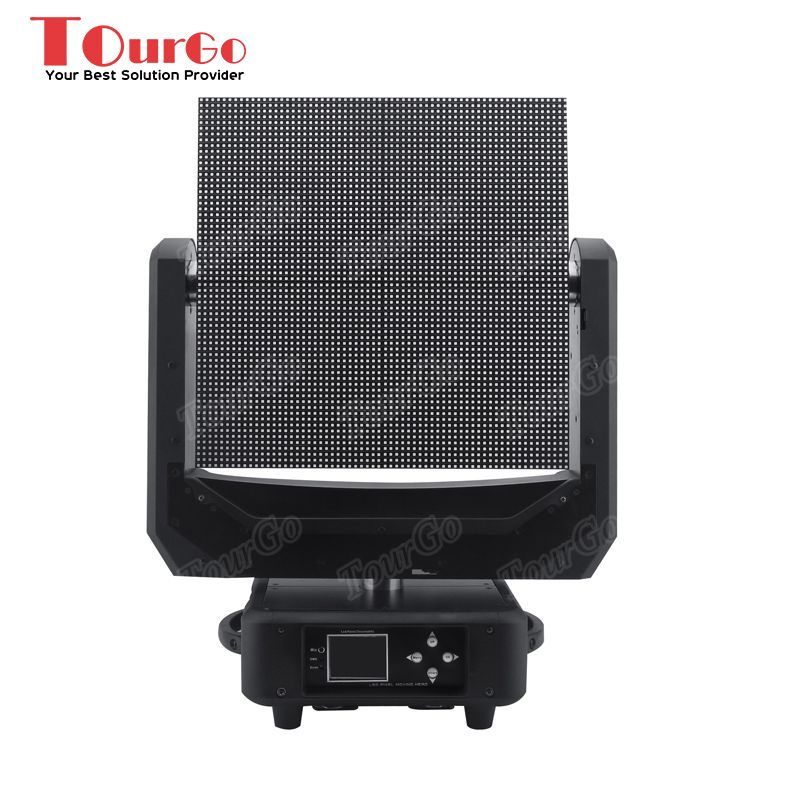

New Design Led Pixel Panel Moving Head

New Design Led Pixel Panel Moving Head
  • led Video Display
  • led light moving head
  • led moving head lights
  • Led PixelPanel Moving Head
  • led moving head
  • ed moving head light

Product Model : TG-MH4096

Product Features : Moving-head skeleton made of aluminium and steel metal plates

Moulded covers in self-extinguishing fire retardant ABS PC (V0 class)

Two sides handles for transportation

Four strong wide feet for better stability

IP20 protection rating

Exterior finish: black (Carbon)


  • captcha

Product Detail



Product Tags

LED Stage Lighting Video Panel Moving Head light

LED Stage Lighting Video Panel Moving Head light was designed with an entirely HQ SMD 3535 Leds and internal reflector provide absolute contrast and allow for breathtaking graphic effects, while avoiding stray reflections from the other light emitters. The 6 mm pitch of the light offers the perfect balance of definition required to display video media on stage, of screen size for enabling full HD, and of overall system brightness.


Lighing Description:

Multi-chip SMD5050 RGB LED

Viewing angle: Lambertian emitter (120°)

Pixel resolution: 64 x 64

Pixel pitch (mm): 6

Pixel population: 4,096

Brightness (nit or cd/m2): 3150

Rated sources life: up to 50,000 hours

Flicker free sources management, suitable for TV applications and all video recorded events


Working  Description:

PAN and TILT Rotation

Extremely accurate positioning

Moving-head operated via either 8 or 16 bit resolution

High-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movements.

PAN and TILT automatic repositioning

Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation

White or colour strobe effect, with speed adjustment from 1 to 25 flashes per second

Advanced cooling system

Safety protection against temperatures excesses



16.7 million colours

8 bit colour control

14 bit internal colour control Colour calibration of each pixel to achieve a perfect colour evenness of the entire panel


Hardware :

Graphic LCD display for addressing and special functions settings, with flip function

4 menu buttons to set the functions

Over temperature protection

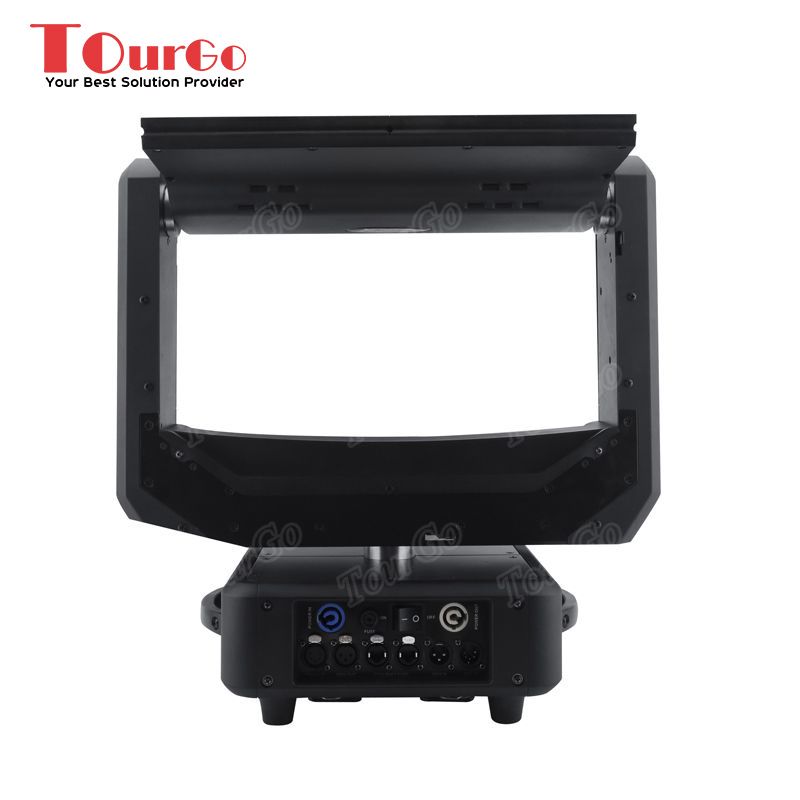

3/5Pin for DMX,Ethercon RJ45 IN / OUT connectors for ArtNet & sACN & Net-Working Video Out-put connection

PowerCON True1 male and female connectors for power connection ‎

  • Previous:
  • Next:
  • Size :

    Dimension: 473 x 641 x 307 mm (l x h x d)

    Flight-case Package Size : 559 x 662 x 367 mm (l x h x d)

    Weight: 15Kg


    Power Supply :

    Electronic supply with active PFC

    110 to 240 Volts – 50/60Hz

    Power 180 Watt max(MW Brand)


    Control System :

    DMX512 for X/Y Moment&Build-in effects.

    Networking control for video Out-Put



    1.  Why your factory provide not only  lighting truss, but also  flight case, portable stage, pipe and drape ,ect ?


    Actually, the reason is very simple. All our product need the similar raw material , like plywood, aluminum alloy tube. We just need buy the professional machines, hire the skillful workers and enhance the R& D Team. We hope we could provide “ One-Stop service” for our clients.

    Our concept is “ Tourgo , Build your dream”  Our goal is to win the bright future and be the No. 1 Pro sound & Light equipment manufacturer.


    2. Does Tourgo company provide the OEM service?


    Yes, Tourgo could provide the OEM service according to your request.

    We have the ten-year designers team, the customized flight case, portable stage, and  lighting truss also is available,  just need your idea!


    3. Does Tourgo company offer warranty for the sold products?


    Only if your products are purchased from Tourgo company, we promise life time warranty. In other words, if your products are purchased directly from us or our dealers, you can enjoy such warranty.


    4. Do you provide the flight cases parts for replacement I purchased from Tourgo company ?


    Well, almost all our flight cases parts are replaceable. You can replace them yourself. If you want to get them, you can contact us soon.


    5. What is the mean of Alphabet “U” in rack case catalog?


    For rack case, we offer 2U, 4U, 6U, 8U and other models of “U” cases. “U” here is a unit referring to inner height of the rack case . Usually, 1 U equals 1.75” (4.45cm).


    6. I want to distribute your products in my country. How can I become a distributor ?


    Tourgo has searched global deals for all our products. We will provide preferential offers for all deals, especially those in large amount. For most information about dealership, please visit our Distributor Wanted.


    7. What is the MOQ for your products?


    Tourgo requires no minimum order quantity, and we can ship single item samples or large orders worldwide for any clients who are in need of our products


    8. Can I get any discount for my order?


    Yeah, you can contact our sales team, depending on the amount of your order

    - The products you need

    - The exact desired order quantity

    - Your desired time frame

    - Any special packing instructions

    With this information we will get back to you with a quotation.

    We also offer limited time promotion, please notice our post in our website.


    9. What is your payment term, delivery time? Do you have the reliable freight agent?


    The payment term is T/T, Western Union.

    Delivery time is 7 – 15 days after we get the payment. Surely, if you need the goods urgently, we  try our best to meet your demand. Moreover, we  will send your goods pictures to you before the shipping

    Yes, as a leading manufacturer, we have the reliable freight agent and has done the business with them for many years. If you have your own agent,  we would like to coordinate with them fully.


    10. Will you send the drawing of the custom product for our confirmation before the production?


    Yes, Absolutely! Like custom flight case, lighting truss project, portable stage project. We will provide the professional drawing for your confirmation before our production.
