TourGo Upright Portable Audio Line Array Truss jbl Speakers Truss Hanging Mini Line Array Tower

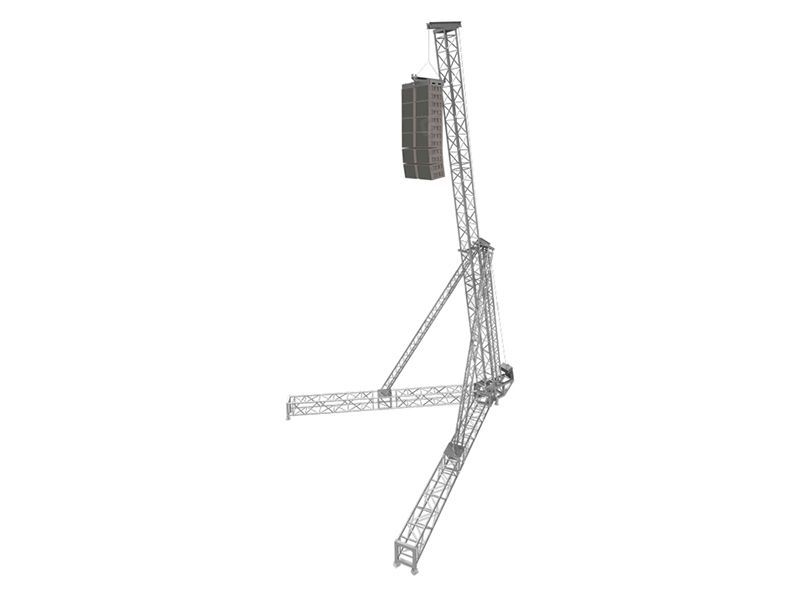

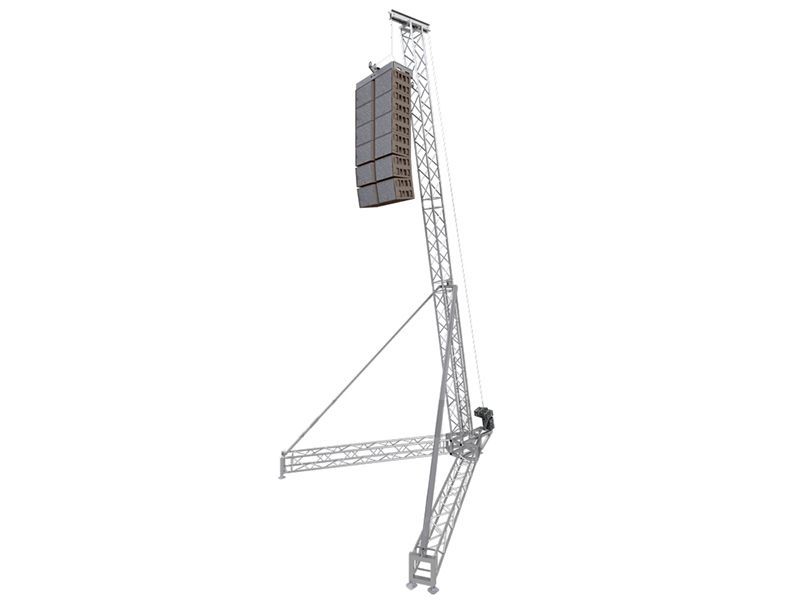

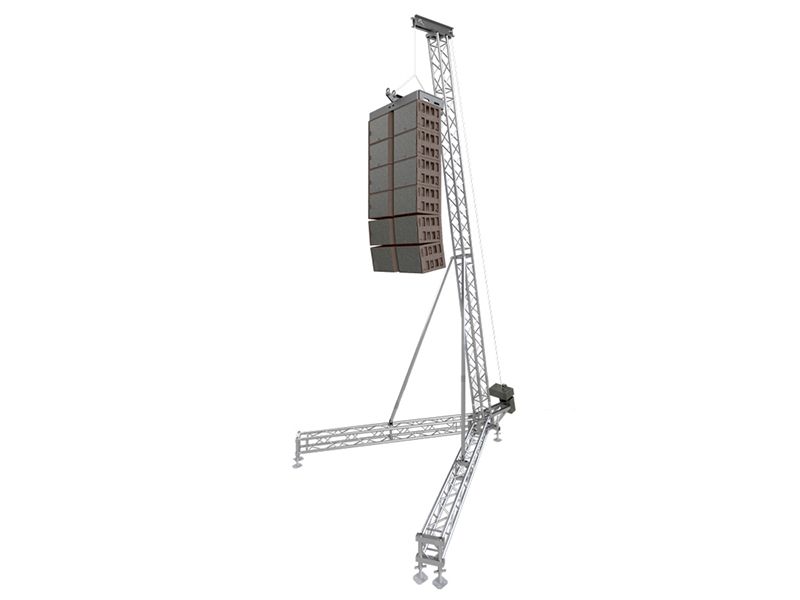

This medium-duty speaker tower has a loading capacity of 1000 kg and a maximum lifting height of 9.25 m. The tower is based on 390mm spigot truss with stabilizers of 60mm tube. It has a self-weight of 415 kg. The legs of the V-shaped base can be levelled by means of screw jacks, which are attached to the side of the legs. After the base is placed, the mast can be built and erected using the hinges on the base corner. The mast should be stabilised by means of the braces, which fix to the legs. After the system is levelled and ballast is applied, the load can be hoisted in position. The relatively compact dimensions make it suitable for a range of applications, including outdoor events, concerts, shopping malls, exhibition areas and theme parkss .
We usually make the following size:
6m height speaker truss,made of 290*290mm 300*300mm square truss
loading capacity:700kgs
8m height speaker truss,made of 400*400mm square truss
loading capacity:500kgs
Technical Specifications:
Max. Overall height
|
9.46m(Other Heights optional)
|
Max.lifting height
|
9.25m
|
Max.Loading capacity
|
1000kg(2200lbs)
|
Max surface load front
|
5m s.q.m
|
Max.surface load side
|
2.5 s.q.m
|
Stabiliser
|
60mm
|
Alloy alu parts
|
EN-AW 6082 T6
|
Hand Hoist
|
2T/22M
|
Ballast
|
480kg
|
Max wind speed
|
20,7m/s(46.3mph)
|
System weight
|
415kg
|
Usage
|
For hanging line array speaker
|
