TourGo Aluminum Concert Scaffolding Truss System

  TourGo Aluminum Concert Scaffolding Truss System

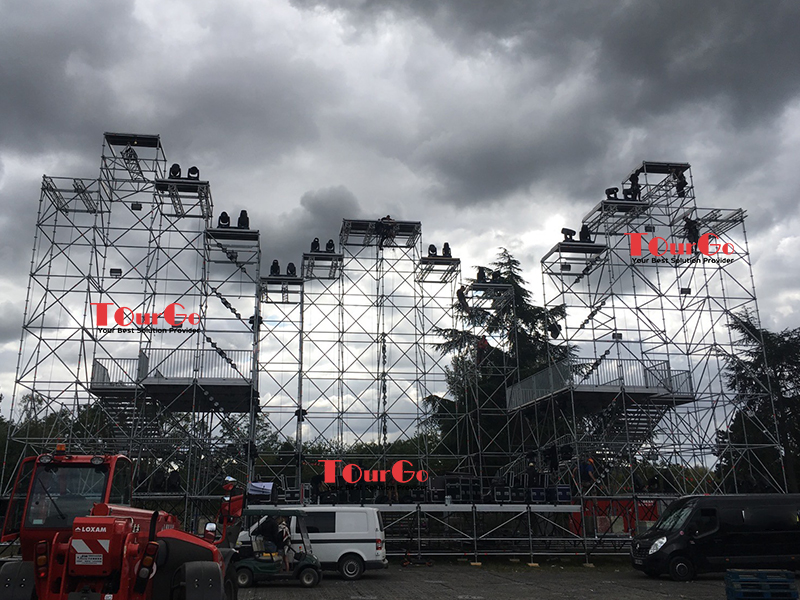

Layer Truss

1) Easy to assemble:

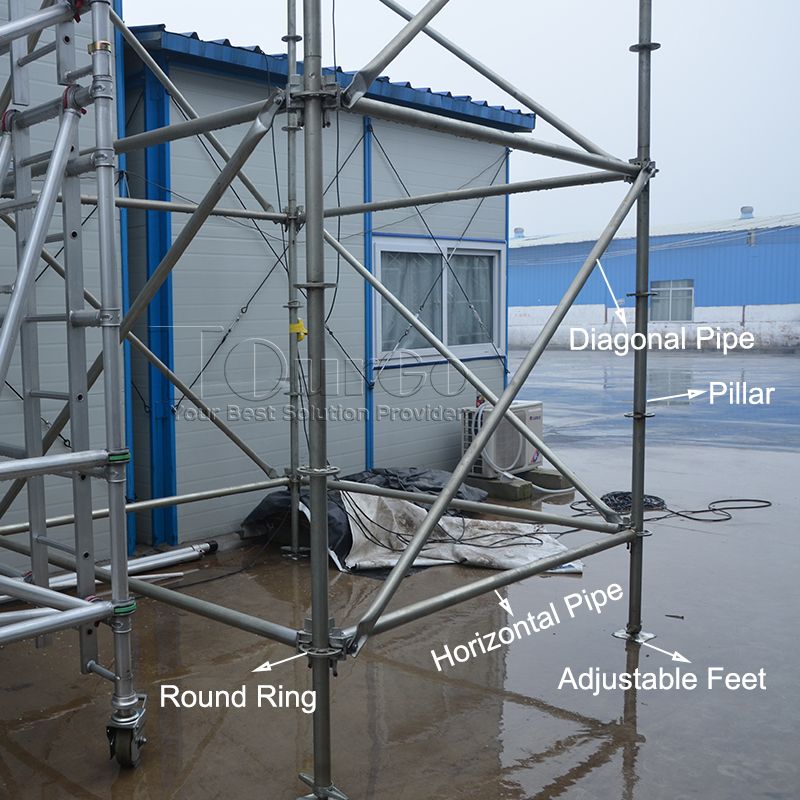

    Layer truss consist of Pillar, Horizontal Pipe, Diagonal Pipe, Adjustable Base, Joint pipe. Its construction is simple and stable.



2) wide range of applications:Layer truss is mainly used for lifting the Line Array Speaker.lifting LED screen, Advertisement Picture. Widely used in different outdoor shows and events.





http://www.tourgosolution.com/truss-projects-design



Specification:

Item Name Layer Truss
Material Q235
Surface Treatment Hot zinc galvanization
Pillar Pipe 48*3mm
2m
10.47kg
Diagonal Pipe 48*2.5mm
2.3m
7.6kg
Horizontal Pipe 48*3mm
Adjustable Foot 2.245kg
Cross Section 2*2m
Height 2m-38m
Advantage Heavy loading capacity and stable
Demountable,easy to assemble and transport
Self-locking, non-rust
Application Hanging line array speaker and led screen
Ootdoor shows and events
Packing standard package or customized
Delivery Time 10 working days after 30% payment

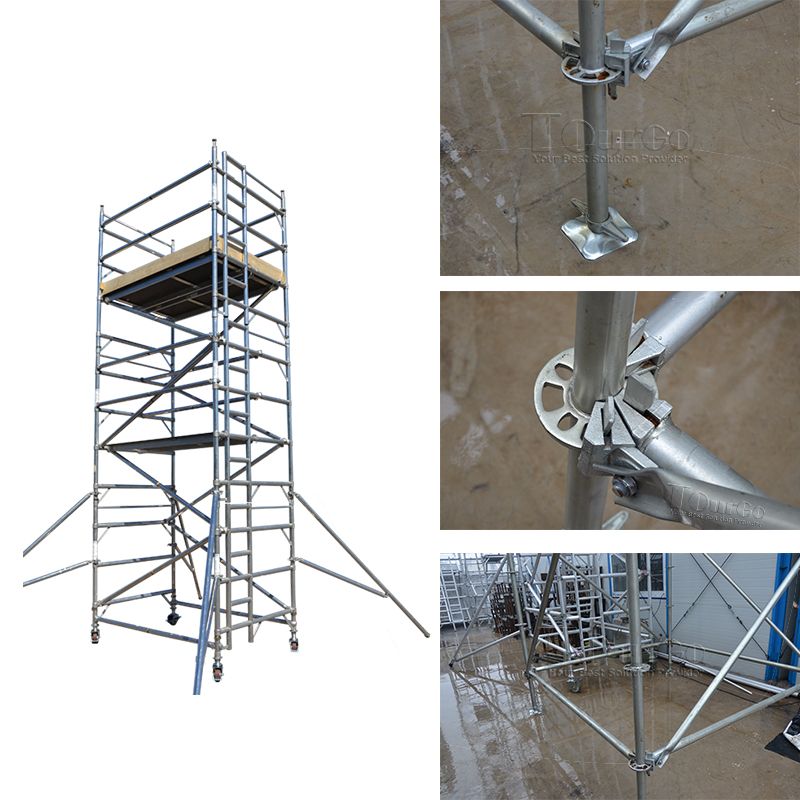

Details:

http://www.tourgosolution.com/truss-projects-design

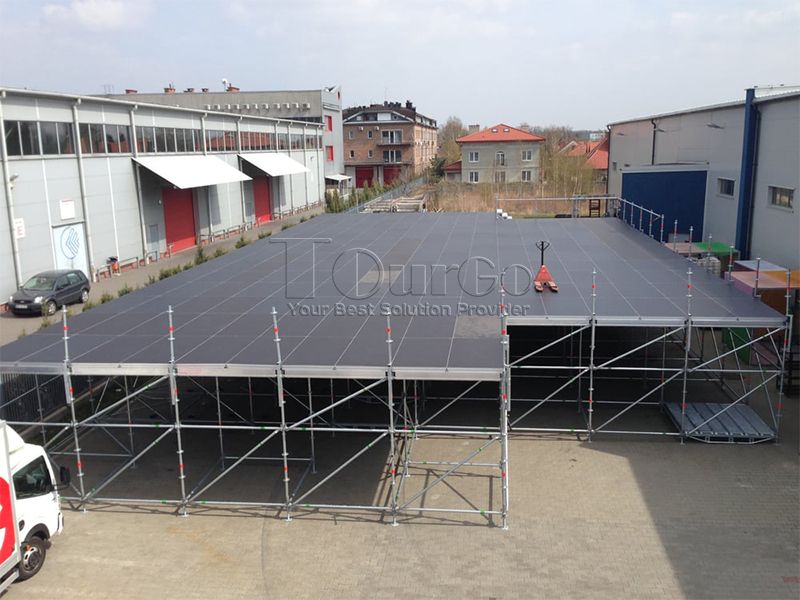

Layer Stage

http://www.tourgosolution.com/truss-projects-design



Specification:

Name steel layer stage
Size 1.22*1.22m 4*4feet ,1.22*2.44m 4*8feet,2*1m,1*1m
horizonal tube 48*1.5mm
Material steel
Height 0.4-0.6m, 0.6-1m, 0.8-1.2m, 1-1.5m, 1.5-2m
pillar tube 48*2.5mm
diagonal tube 42*2mm
Platform glass/ plexiglass/ plywood
Loading capacity 750kgs/m2
Feature strong,easy to assemble and dismantle. Adjustable height
Application for dancing on following occassions:school stage, event stage, performance stage, celebration stage,concert stage,wedding stage





Details:

http://www.tourgosolution.com/truss-projects-design



Truss System:

http://www.tourgosolution.com/



http://www.tourgosolution.com/


Post time: Sep-12-2019
