Aluminum Frame Plexiglass Stage For Concert

Aluminum Frame Plexiglass Stage For Concert

TourGo aluminum quick stage system offers your venue a superior all in one system which is complimented with drapes, steps and guardrails. With no loose parts to assemble or pack away ,it is preferred by schools, function spaces and conference centres throughout world for its ease of use and one person operation.
https://www.tourgosolution.com

Transparent Aluminum Four Legs Stage Specification

Product Name
Aluminum Four Legs Stage
Material
18mm thickness and plywood platform finished
Unit Stage Platform Size
1m x 1m ,1m x 2m ,4ftx4ft, 4ftx8ft,also can be customized other size.
Stage Platform
Non slip finish, Carpet finish, plexiglass/acrylic,tempered glass
Panel Thickness
18mm
Adjustable Height
0.3-0.5m, 0.4-0.6m, 0.5-0.8m, 0.6-1.0m, 0.7-1.2m,0.8-1.4m,1.5-2.2m
Set Up
1pcs of panel match 4 legs or 6 legs
Loading Capacity
750kg/sqm
Feature
strong, easy to assemble and dismantle. Adjustable height
Application
for dancing on following occasions:school stage, event stage, performance stage, celebration stage,concert stage,wedding stage

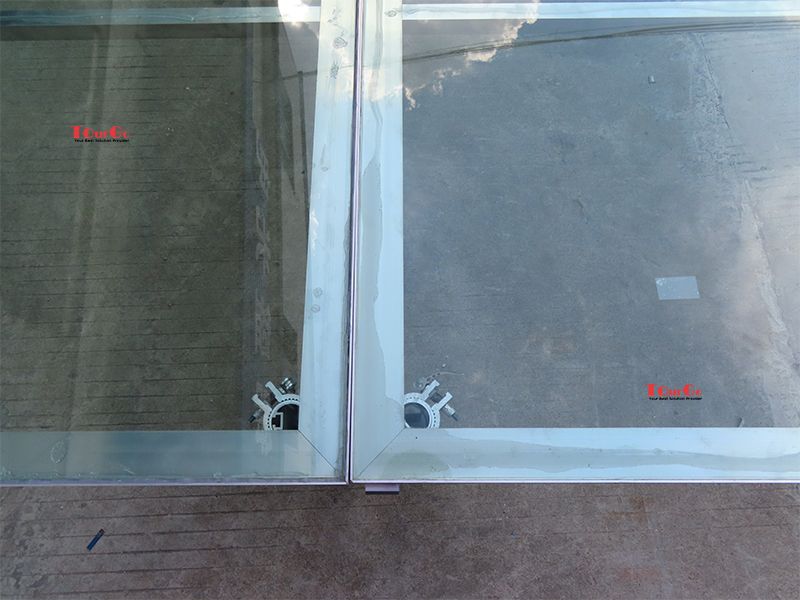

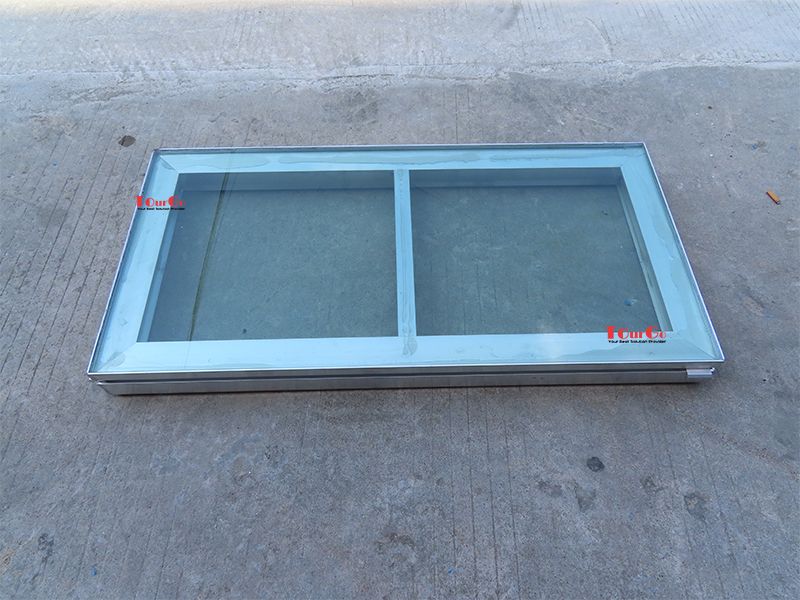

Transparent stage platform

https://www.tourgosolution.com

https://www.tourgosolution.com

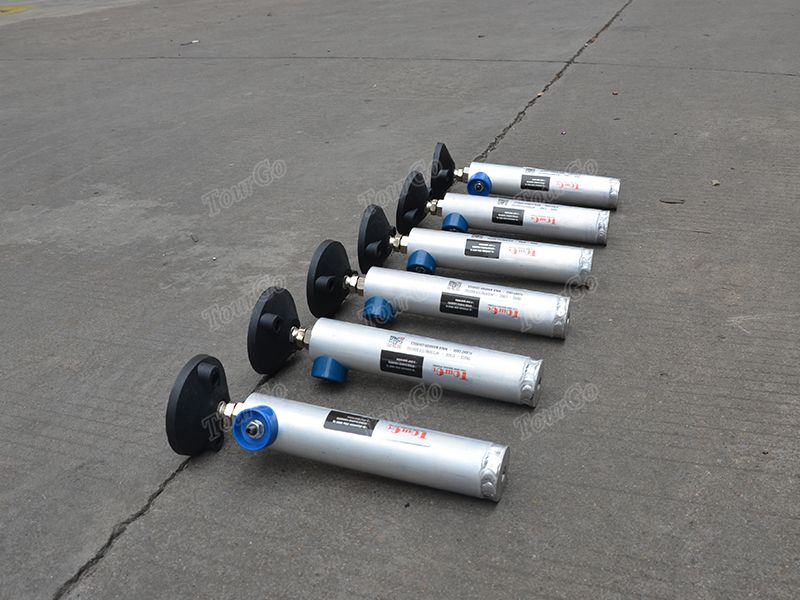

Quick Stage Adjustable legs:

The adjustable legs, made by 50mm*3mm aluminum tube, 6082-T6, the level feet( black part in the picture) can adjust the level to meet the uneven ground, suit for the outdoor and indoor event.

https://www.tourgosolution.com

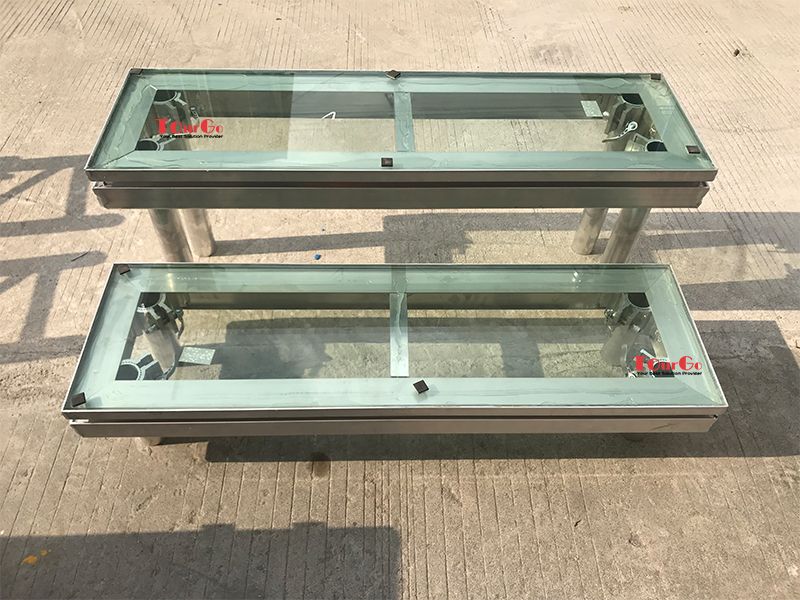

Stage step

https://www.tourgosolution.com

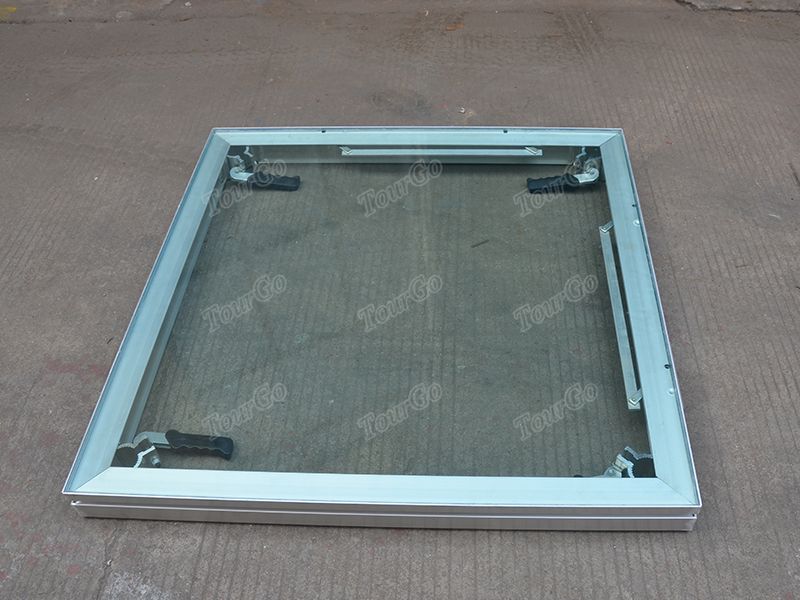

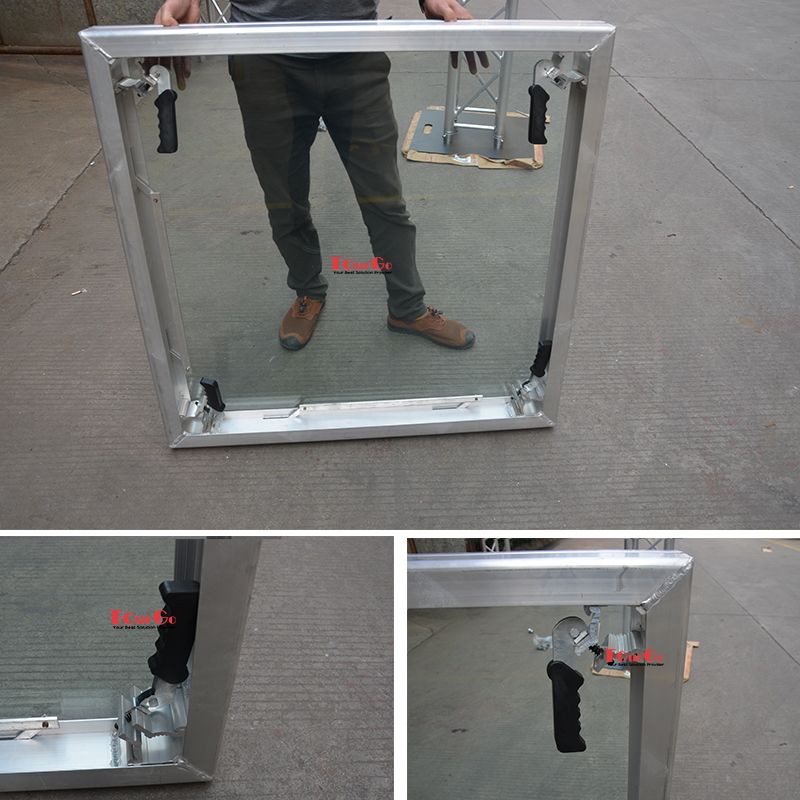

The locking system for connecting the adjustable legs, it is very easy to assemble, and the connector for connecting of each stage deck, just pull the connector will be ok, no gaps

 https://www.tourgosolution.com

https://www.tourgosolution.com


Post time: Oct-18-2019
