F45 Global 16 Inch 5th Chord Truss for Hanging LED Screen

     F45 Global 16 Inch 5th Chord Truss for Hanging LED Screen

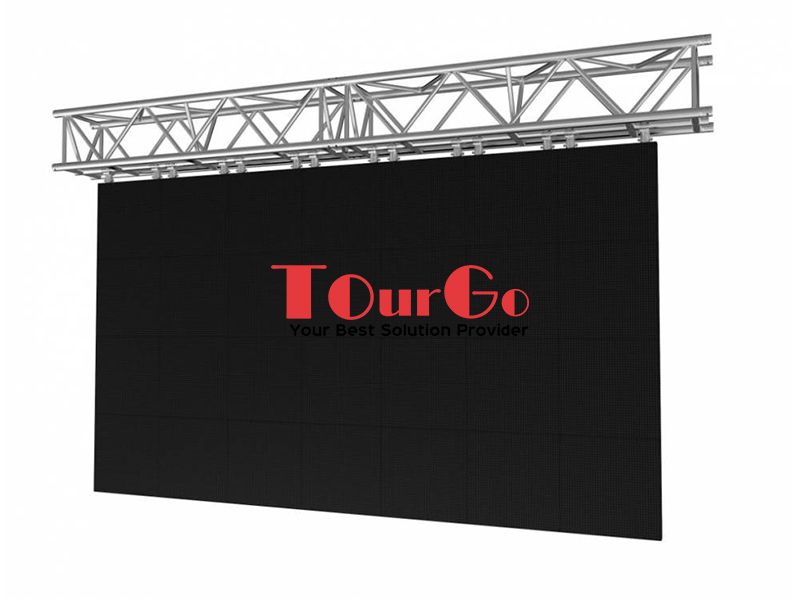

This F45 Truss is based on the F44P 400mm x 400mm truss design and is used for applications such as LED screens where balanced centre rigging of the screen panels on the truss is essential. A central chord with ladder-style horizontal bracing on the bottom face of the truss allows LED panels to be clamped directly onto the centre chord. This negates the need to sling or brace across the two bottom chords to provide a central rigging points as would normally be necessary on a square format truss. Furthermore, the ladder-style horizontal braces creates more and more clear hanging space along the chord compared to the outside chords. Because it is based on the F44P Truss design, F45 Truss can connect to all standard F44P junctions or sleeve blocks so you use your existing F44P Truss to build the rest of the structure! Future development of truss accessories will mean that use of F45 Truss will not be limited to LED screen hanging applications.



General

Colour Aluminum
TÜV certificate No
Material Al EN AW-6082 T6



Technical Data

Number of points 5-Punkt
Edge dimension 40 cm
System F45
Type straight
Truss length 50/300 cm

main pipe:

Diameter main pipe 50 mm
Wall thickness main pipe 4 mm



Brace:

Diameter Brace 25 mm
Wall thickness Brace 3 mm



Hardware:

Dimensions (L/W/H) 500/3000 x 400 x 400 mm






Shipping data

Dimensions (L/B/H) 500/3000 x 400 x 400 mm
Weight 39.17kg
