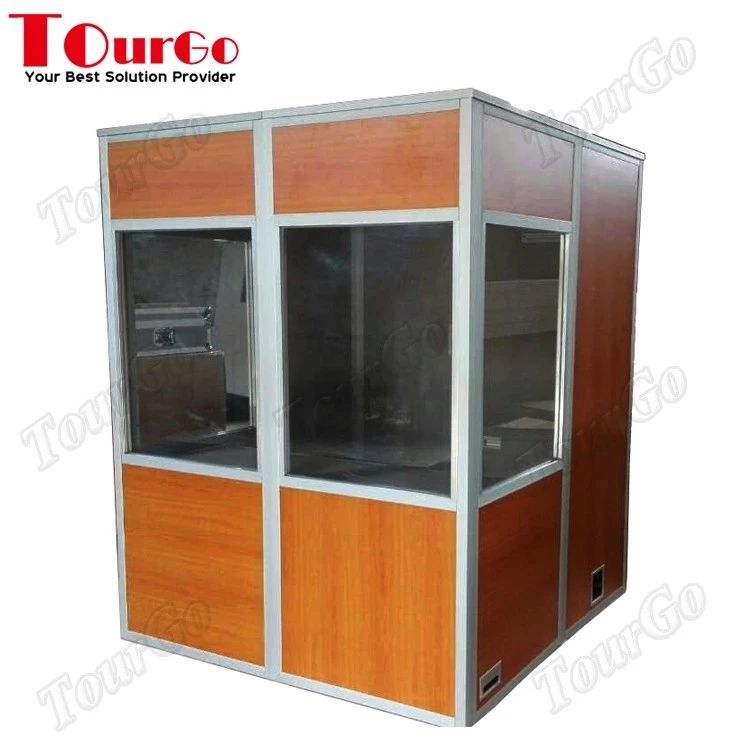

TourGo Orange 2-Person Interpreter Translation Booths

www.tourgosolution.com

TourGo Super Lightweight Translation BoothsFull-size Interpretation Booths – We offer you a full range of simultaneous interpretation Booths, conference translation Booths

Interpreter booths are designed to create the best acoustic environment for the distinction of various languages spoken simultaneously, It provides the perfect visual and two-way audio communication between the interpreters and the participants in various meetings conferences.

TourGo Super light weight interpreter booths TG-2LBOOTHS is a super light weight, modular, easy to mount interpreter booth for 2 persons, but can be extended for up to3/ 4 persons, using the optional extension sets. 1 or 2 persons can easily build the booth without any tools. The TG-2LBOOTHS complies with the ISO 4043 norm for mobile interpreter booths and is equipped with table and 2 cable ducts.

2 person interpreter booth Configuration:

1. sound insulation door: Easy opening 180 angle without noise; Outward;

2. windows: Size window is more than 670*800mm (H); Ample sight space; acrylic material ( thickness 6mm; Anti-scratch; Prevent sharp light outside).

3. ventilation system: two silent ventilation system on top (optional), almost silence(< 40dB).

4. work surface: 152cm(L)*50cm(W)*73cm(H); Can bear weight of all equipments

5. cable passage: Dia. 5cm

6. standard 8 wall panels(4 of which have windows with acrylic and 1 door panels), 2 roof panels , 1 working table. the booth also have 2 cable ducts

Orange translation booth Capacity of sound-proof:

The capacity of sound proof of our booth is completely over ISO-4043 standard, at least 30 dB

2 person interpreter booth Benefit :

A. Easy installation, can be performed by 1-2 person

B. Very comfortable working environment

C. Clear view window (acrylic)

D. Durable build

E. The table is easy to install without using tools at all

F. Good looking and Comfortable

G. Suitable for all types for conference systems

Super Lightweight Interpretation Booths for Two person Specification:

Standard suited for 2 persons

Standard size:W1600xD1600xH2000 mm

Weight approx. 160KG

Standard 11 panel configuration

Extendable up to 4 persons

Ventilation system integrated in roof panels

Outer Materials is high density plywood coated with fire-retardant paint

light grey color, other colors are available on demand.

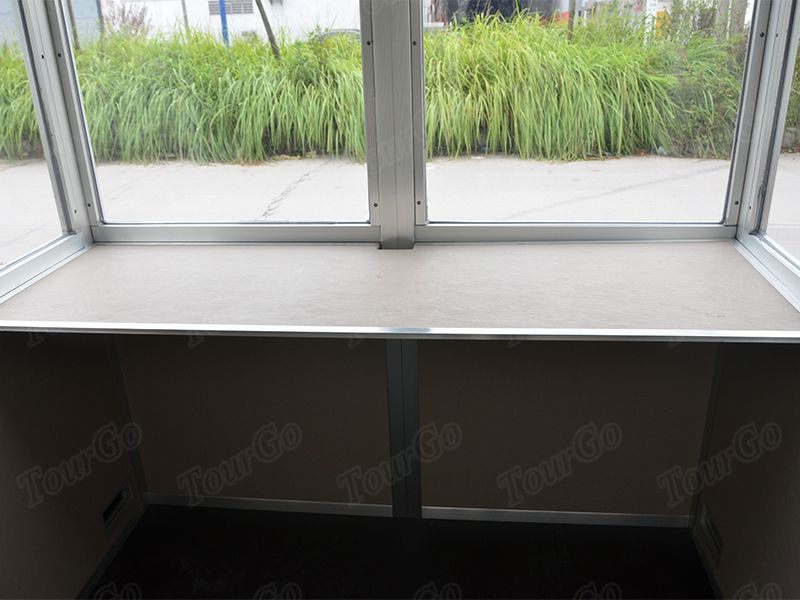

Durable Working table: 152cm length x 50cm width, 74cm height from ground to table surface,the load capacity more than 80kg.

http://www.tourgosolution.com

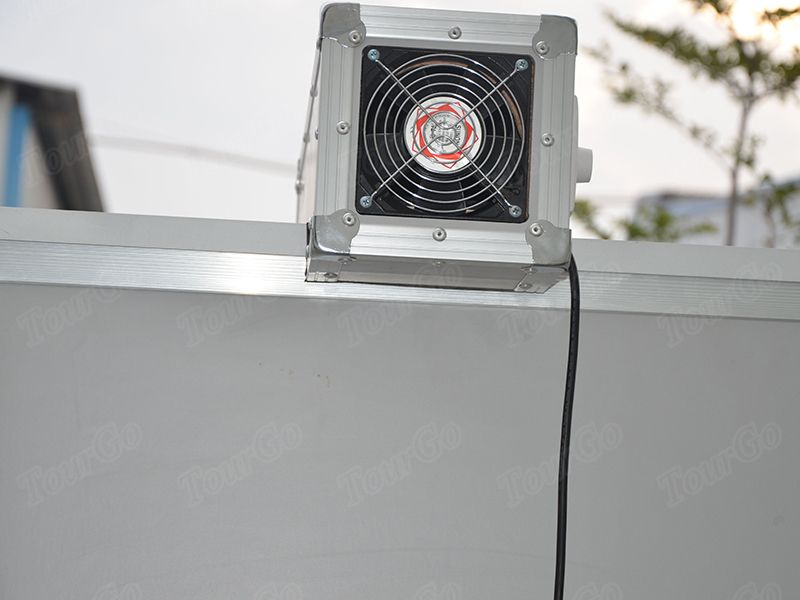

Ventilation System for Interpreter Booths : 110~240V , 50/60Hz, could be customized plugs and voltage

http://www.tourgosolution.com



http://www.tourgosolution.com

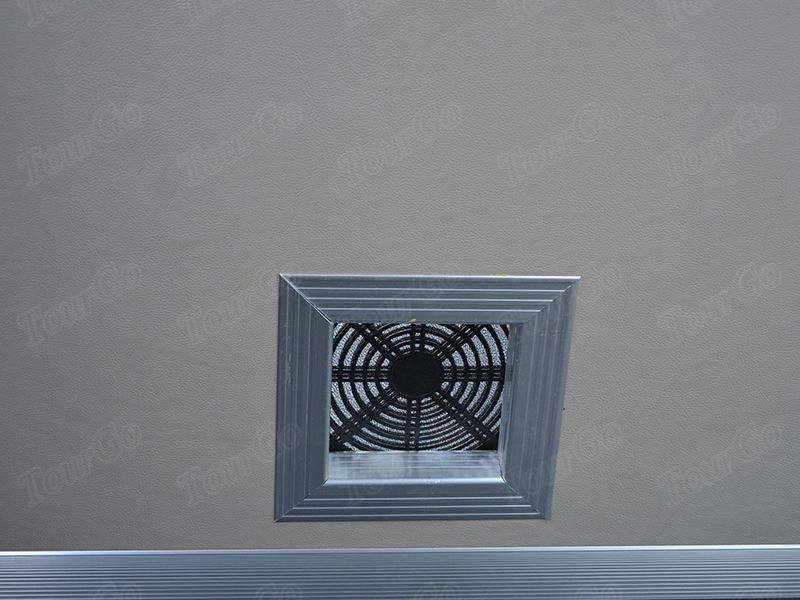

Ventilation fan

http://www.tourgosolution.com

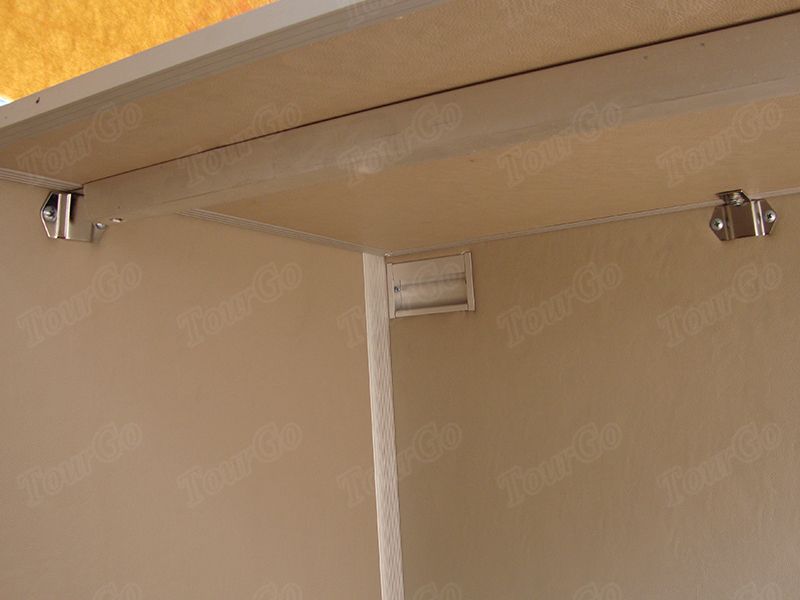

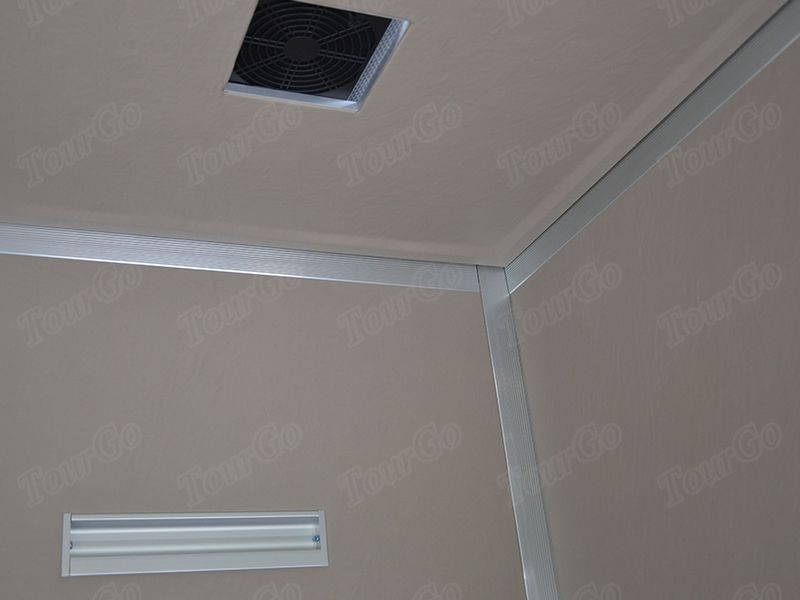

Interpreter booths roof and the clothes-hook

http://www.tourgosolution.com

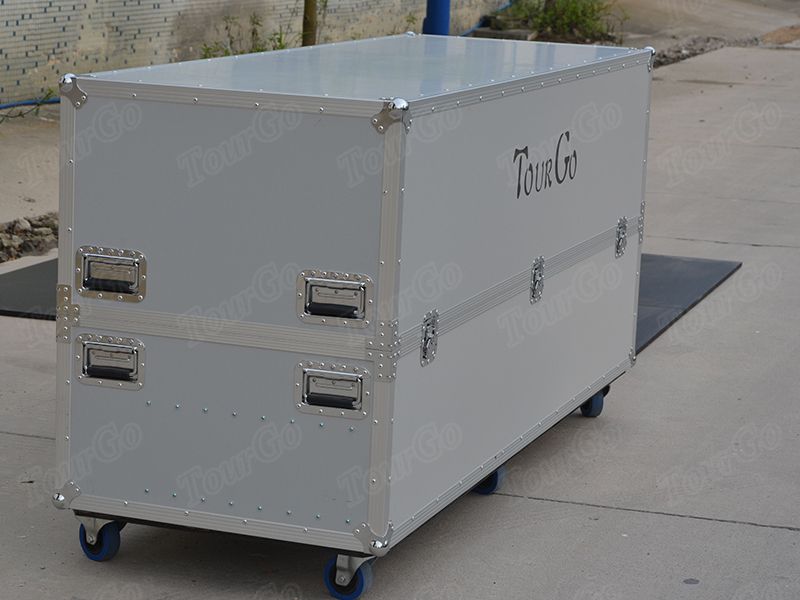

Hard flight case

http://www.tourgosolution.com/

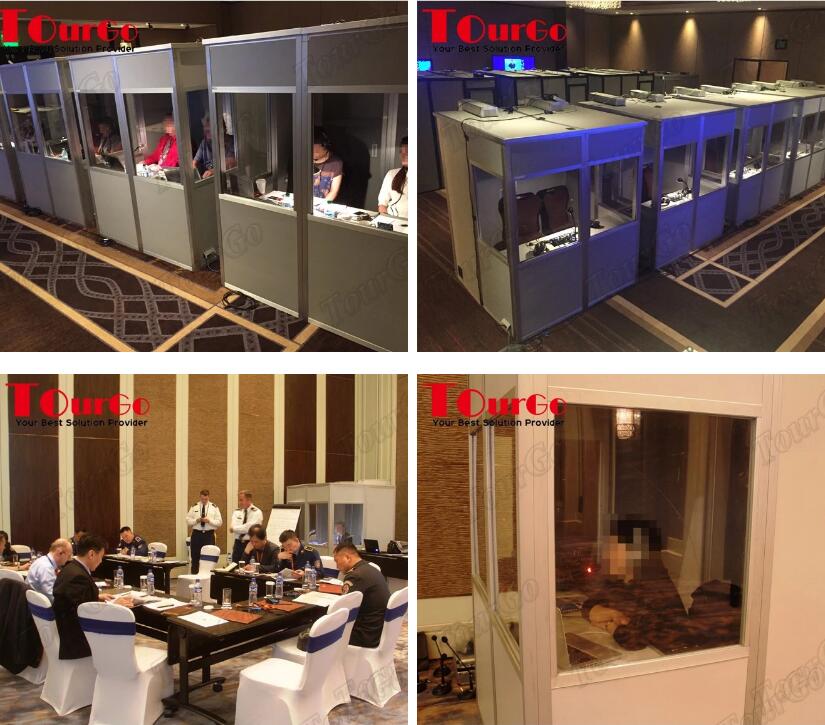

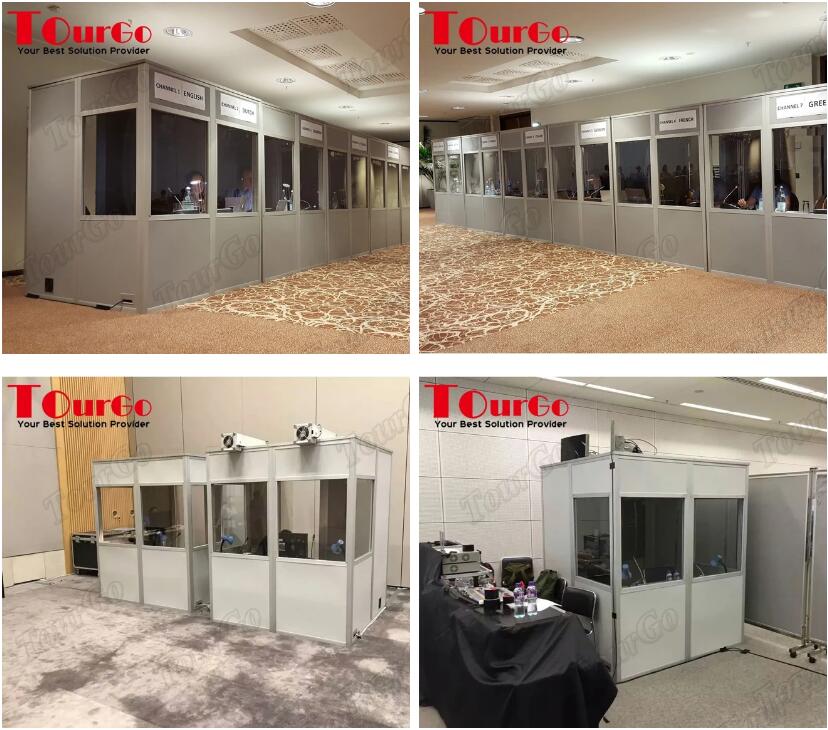

Our interpreter booth apply for international conference.
