TourGo Aluminum Cosmic Truss U-Torm U Top Modular Lighting Truss



The Cosmic Truss U-Torm is a flexible solution to hanging drop positions for lighting fixtures. As well as projection or other equipment in a completely modular design.


Comprised of lightweight modules and sections, the U-Torm allows endless configurations for single fixtures, double hangs or ladders of multiple fixtures, which can also be expanded to create a wall of hanging positions.


The U-Torm is available in two standard sizes. But can be built upon and customized using the standard Cosmic Truss range of 2″ pipes, T sections, spigots , and corner adapters. These all fit seamlessly into the U-Torm allowing you to create hanging positions or structures in an unlimited variety of combinations.


The U-Torm system has been designed for quick deployment and take down in any environment. For both sizes, the lightweight aluminium construction design is reinforced to provide added durability and stability.


Handy safety point attachments are fitted on each side of the U-Torm to cater for multiple fixture types.

U-Torm brackets are available in a natural aluminum or black finish as standard. As well as other colors can be customized.

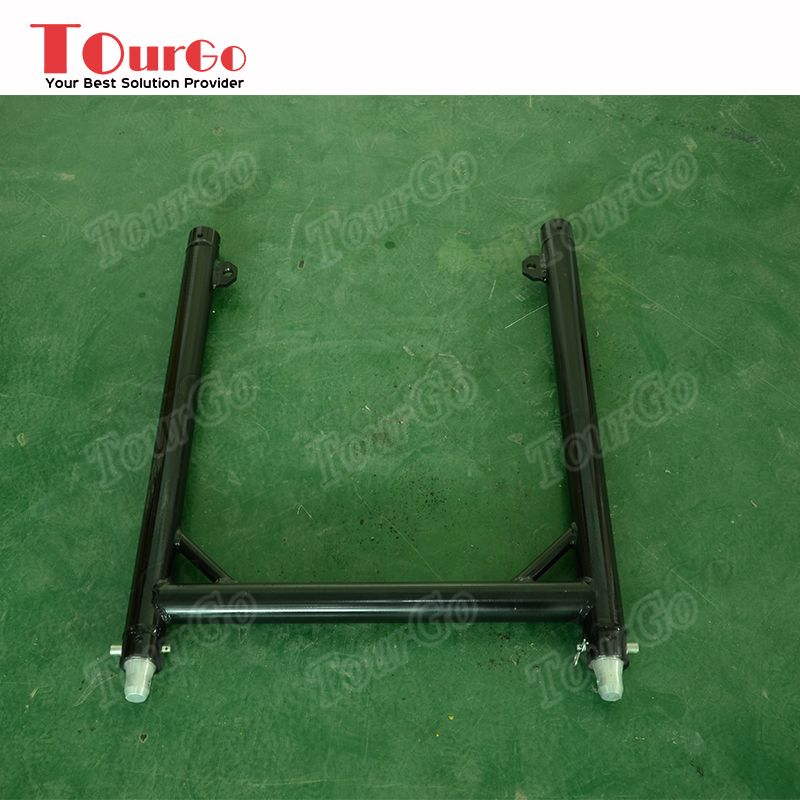

U-Torm:

Outer Dimension
23.6″ x 2″ x 29.9″ (60 cm x 5 cm x 76 cm)
Inner Dimension
19.7″ x 2″ x 25.6″ (50 cm x 5 cm x 65 cm)
Weight
8.1 lbs. (3.7 kg)
Center point loading
110 lbs. (50 kg)
Material
6082-T6 aluminum alloy
Accessories :
Conical connecting element with pin and safety clip (2 included)



U-Top:
Dimensions with eyebolt
23.6″ x 2″ x 4.3″ (60 cm x 5 cm x 11 cm)
Weight
4 lbs. (2 kg)
Center point loading
110 lbs. (50 kg)
Accessories :
Conical connecting element with pin and safety clip (2 half conicals included)

未标题-1 未标题-2 未标题-3 未标题-4

未标题-5
