TourGo Aluminum Lighting U Frame Truss U-Torm Modular Truss

      TourGo Aluminum U Torm Cosmic Truss / Quick Grid Truss



The Cosmic Truss U-Torm is a flexible solution to hanging drop positions for lighting fixtures. As well as projection or other equipment in a completely modular design.

http://www.tourgosolution.com/

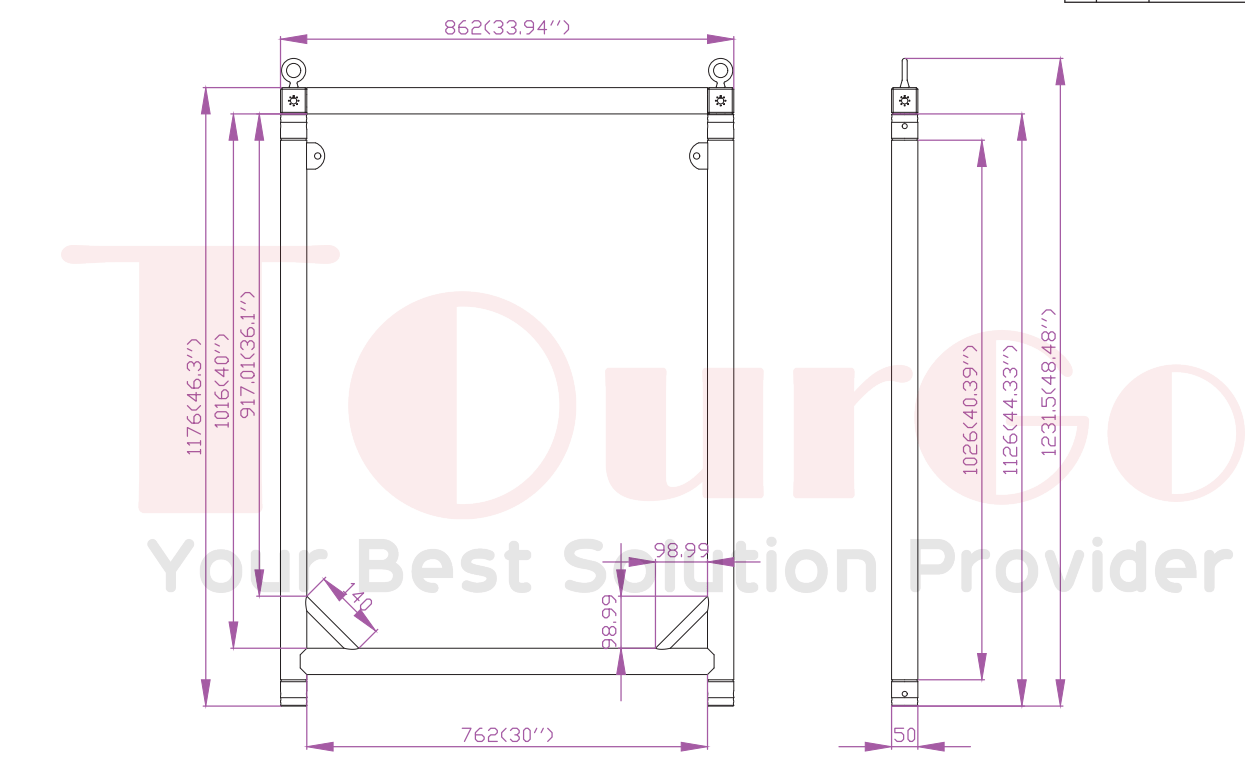

U-Torm:

Outer Dimension
33.94″ x 2″ x 46.3″ (862 mm x 50mm x 1176 mm)
Inner Dimension
30″ x 2″ x 40″ (762 mm x 50 mm x 1016 mm)
Weight
4.62 lbs. (2.1 kg)
Center point loading
220 lbs. (100 kg)
Material
6082-T6 aluminum alloy
Accessories :
Conical connecting element with pin and safety clip (2 included)
U-Top:
Dimensions with eyebolt
33.94″ x 2″ x 4.3″ (862mm x 50mm x 110mm)
Weight
3.3 lbs. (1.5 kg)
Center point loading
220 lbs. (100 kg)
Accessories :
Conical connecting element with pin and safety clip (2 half conicals included)

 http://www.tourgosolution.com/

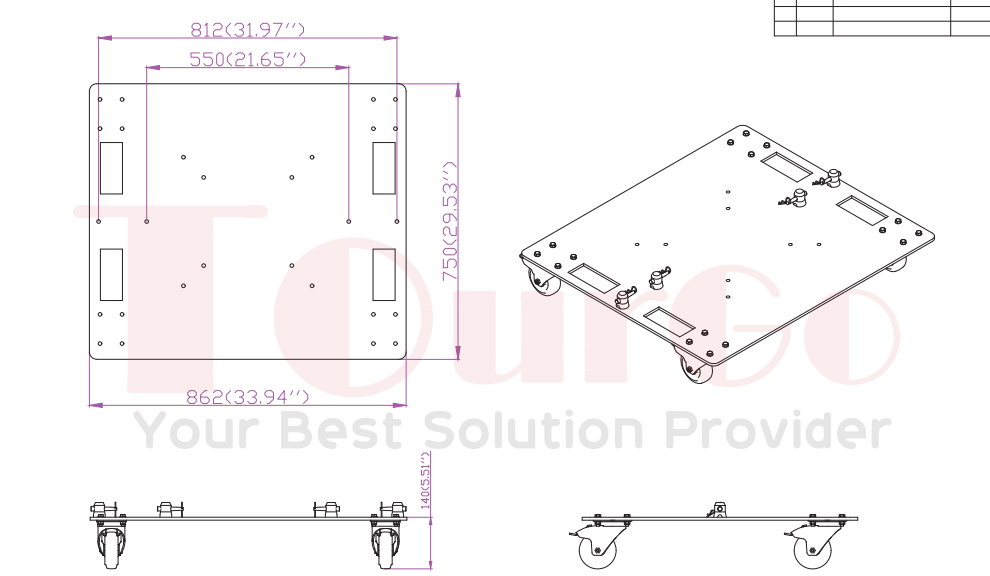

Base Plate with Casters:

Dimension
33.94″x29.53″(862x750x8mm)
Weight
60lbs(27kg)
Product Display:
U-Torm:
http://www.tourgosolution.com/
U Top:
http://www.tourgosolution.com/
Base Plate with wheels:
http://www.tourgosolution.com/
U Torm Truss:
http://www.tourgosolution.com/
Package:
http://www.tourgosolution.com/

Post time: May-20-2019
