TourGo High Load Triangular Aluminum Folding Truss / Foldable Truss

    TourGo High Load Triangular Aluminum Folding Truss / Foldable Truss



The folding Truss is designed as heavy-duty system for use in the big and large project at outside. It is the ideal system for structures with longer spans.

TourGo High Load Triangular Aluminum Folding Truss / Foldable Truss







Feature:

– Tolerance free conical connector

– High stability aluminium alloy

– Excellent load bearing capacity

– Low dead weight

– High wear resistance

– Saving stock and trucking space

– TUV approved

– 4mm Wall thickness of 50mm main tube

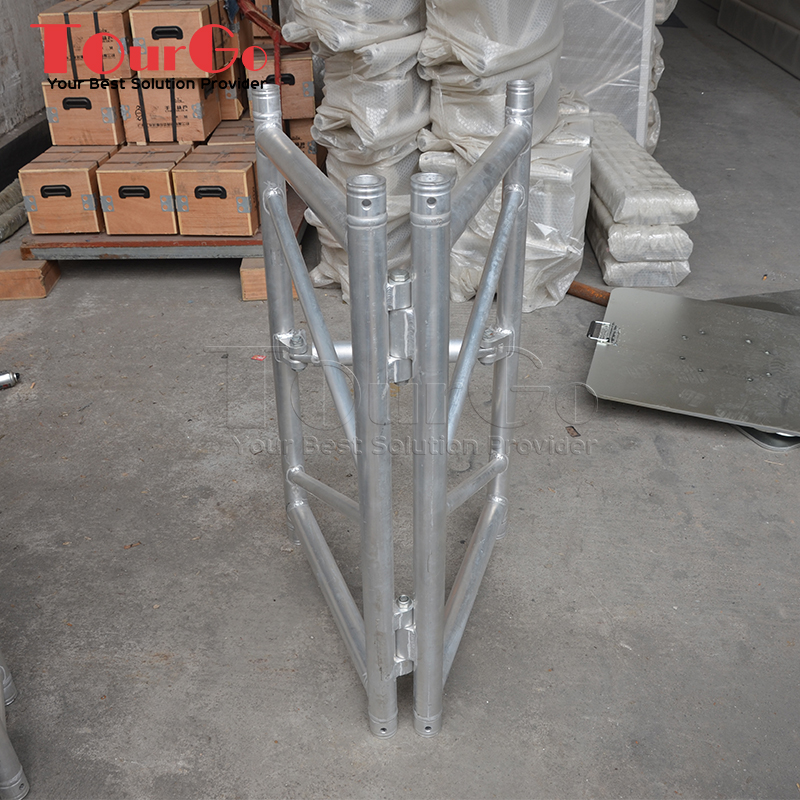

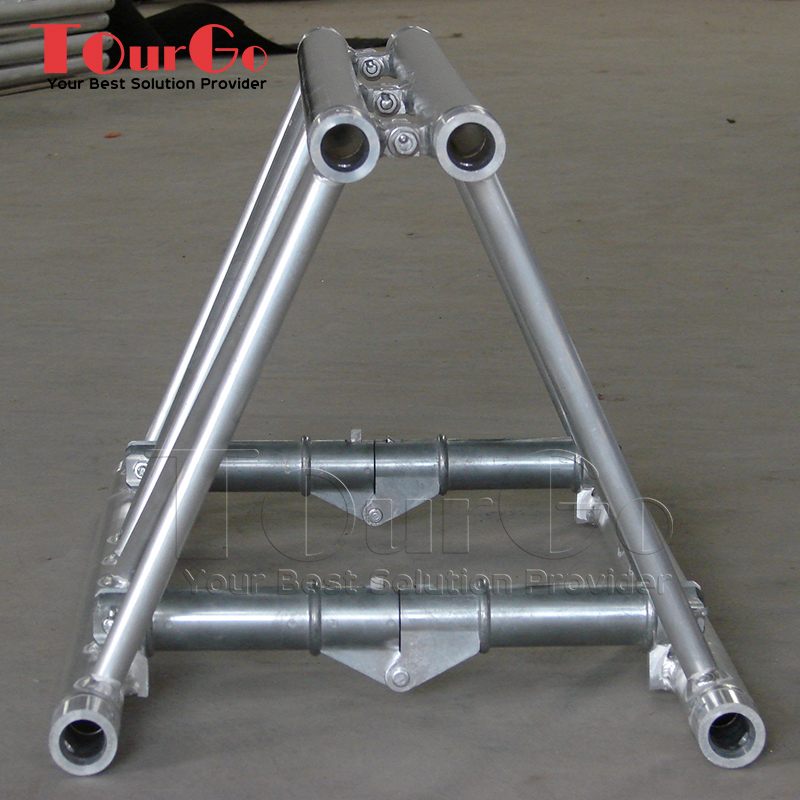

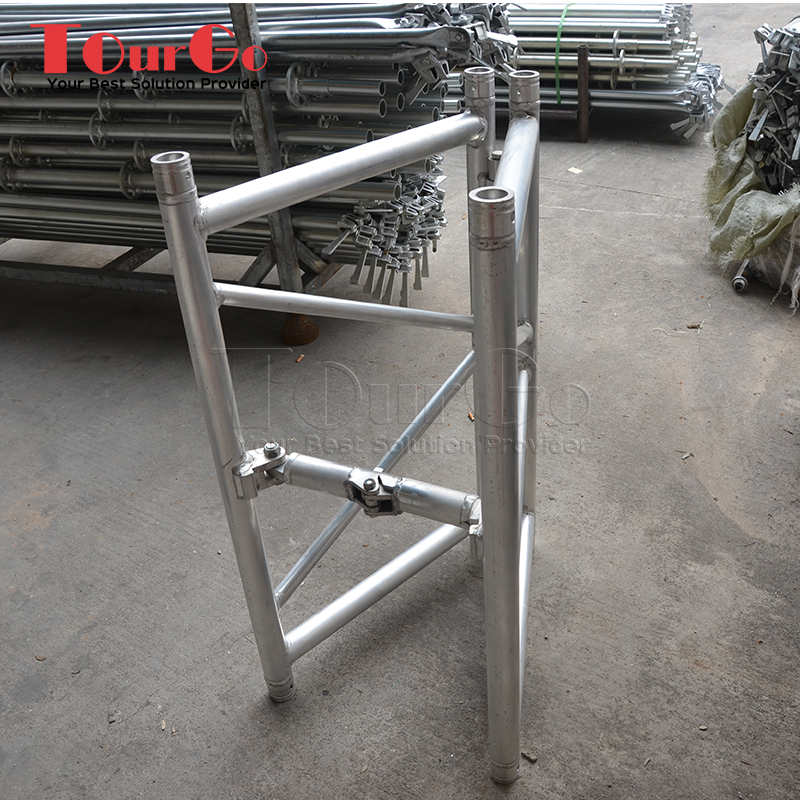

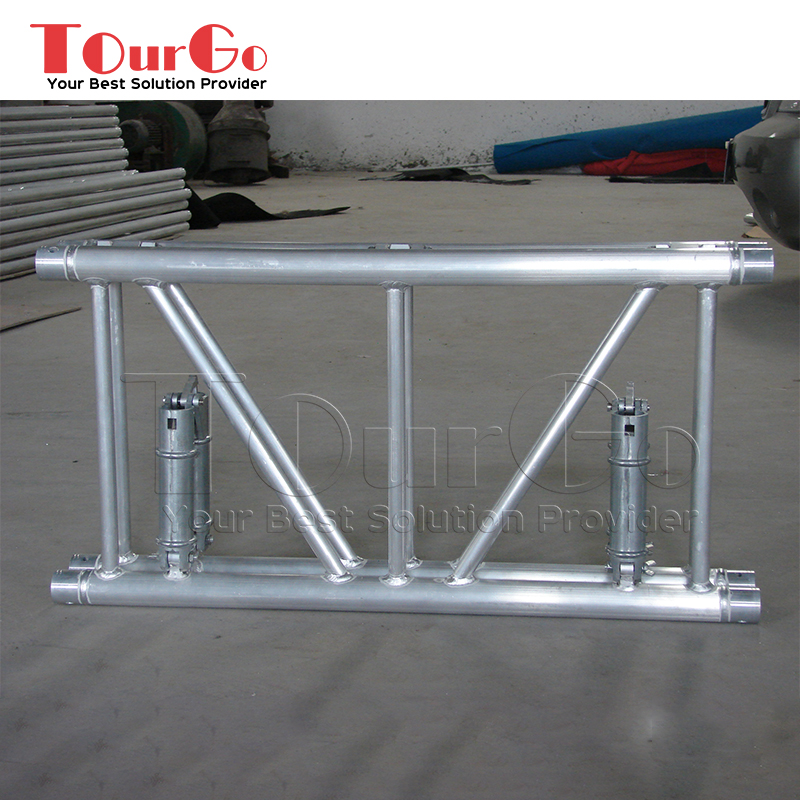

Product Display:

 http://www.tourgosolution.com/



 http://www.tourgosolution.com/



 http://www.tourgosolution.com/



http://www.tourgosolution.com/



http://www.tourgosolution.com/





F53 Folding Truss Lengths:

Item No Length   Weight
TGF53L240 2.4m 34.6kg
TGF53L160 1.6m 25.0kg
TGF53L080 0.8m 16.0kg
TGF53L060 0.6m 14.7kg



PS: The other size can be customsized !



 F53 TUV Certified Load Ratings:

Span 10m 12m 14m 16m 18m 20m 22m 24m
Max Distributed Load 294 kg/m 201 kg/m 145 kg/m 109 kg/m 84 kg/m 66 kg/m 53 kg/m 43 kg/m
Max Center Point Load 772 kg 721 kg 677 kg 637 kg 602 kg 571 kg 543 kg 514 kg
Max 3rd Point Load 691 kg 637 kg 591 kg 552 kg 517 kg 486 kg 436 kg 385 kg
Max 4th Point Load 571 kg 517 kg 472 kg 435 kg 378 kg 230 kg 291 kg 257 kg
Max 5th Point Load 516 kg 463 kg 420 kg 361 kg 313 kg 371 kg 241 kg 213 kg

Post time: Mar-25-2019
