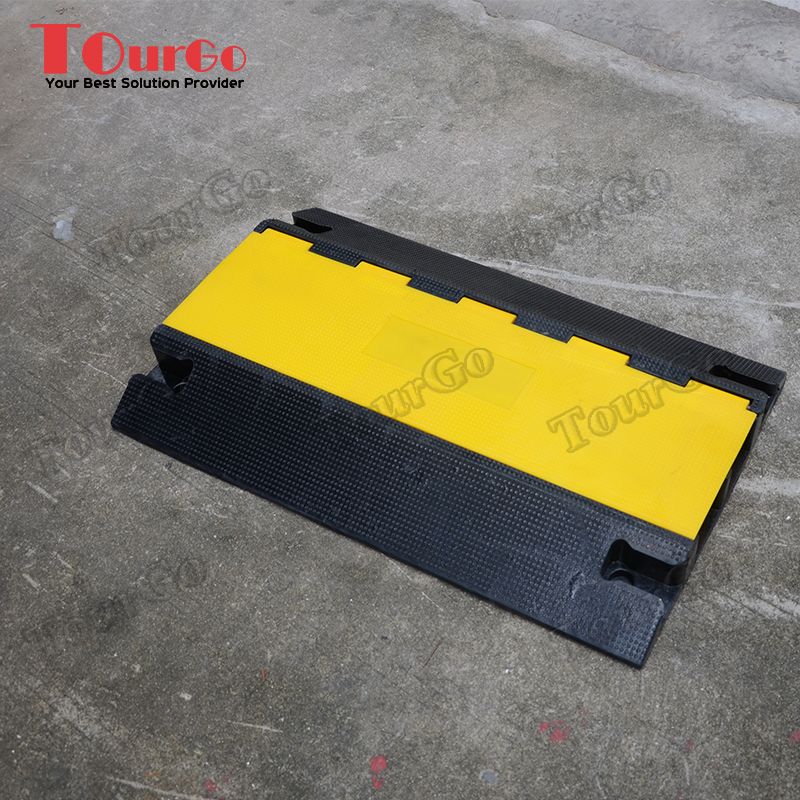

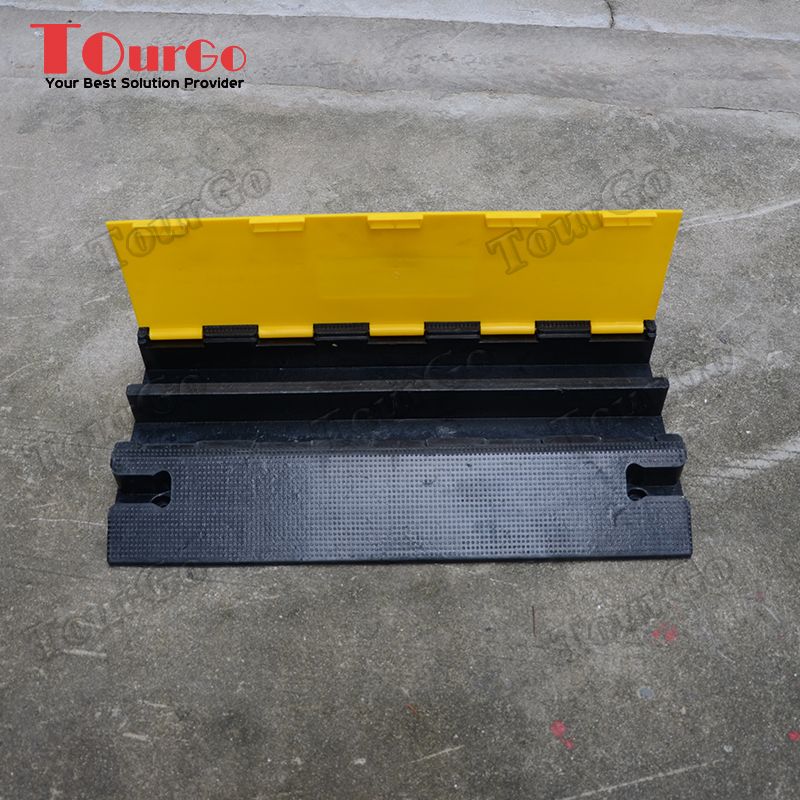

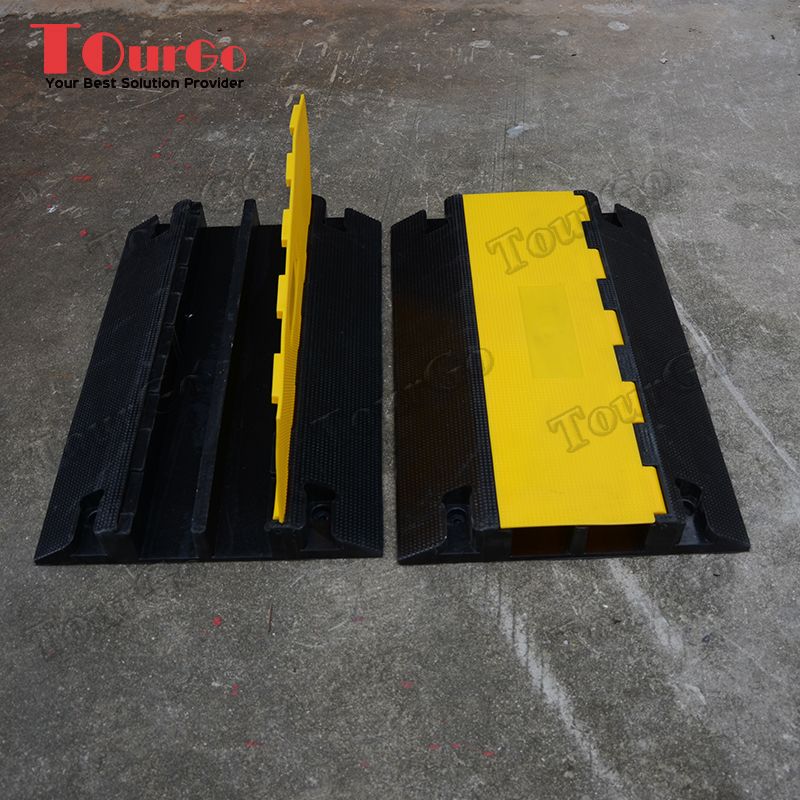

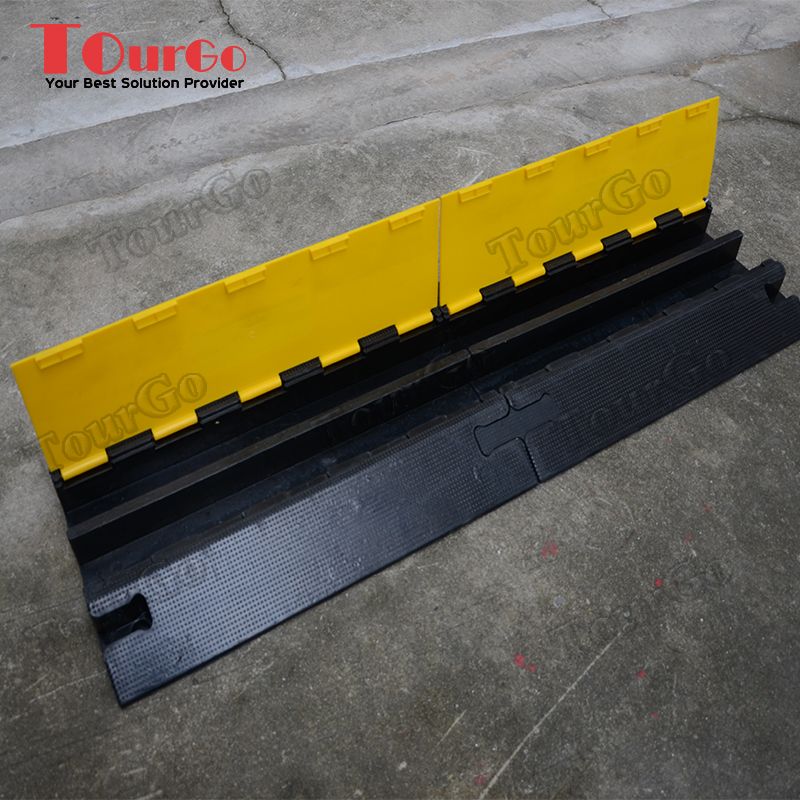

TourGo Portable Rubber Extend 2 Channel Cable Protector

http://www.tourgosolution.com



TourGo Portable Rubber Extend 2 Channel Cable Protector

www.tourgosolution.com

Protect up cables, hoses, or wires around a right curve with these add on sections for the extend 2-channel rubber cable protector. Each bend section locks to the rubber cable protector with a male and female tab connection system.
* Connects with the extend 2-Channel Rubber Cable Protector to curve cables around warehouse racking, poles, and other objects
* Male/Female interlocking tabs connect the curve sections to the rubber cable protector and other curve pieces
* Can be used with multiple turn sections for larger turns (3 corner sections needed to make a 90° curve)
* (2) 95mm x 70mm cable channels* Heavy duty commercial grade rubber base and yellow PVC lid
* 40T Per sq. m capacity

* Raised tread aids in traction

Description
2-Channel Rubber Cable Protector
Color
Yellow Lid Black Ramp
Over-all Dimensions
910mm L x 580mm W x 90mm H
Channel Dimensions
(2) 95mm W x70mm H
Weight capacity
40T
Weight
22KG
Operating Temp
-20°to 48°



http://www.tourgosolution.com

http://www.tourgosolution.com

http://www.tourgosolution.com




Post time: Sep-04-2018
