TourGo Truss Base Plate with Wheels for U Torm Modular Truss

TourGo Truss Base Plate with Wheels for U Torm Modular Truss

We are professional truss manufacturer ,which specialized in aluminum truss and stage for 13 years,our aluminum u torm trusses can be compatible with Global Truss,are made of aluminum 6082-T6, have TUV Certificate. we advocate High Quality, Pro-Design, Best Service !





Product Display:

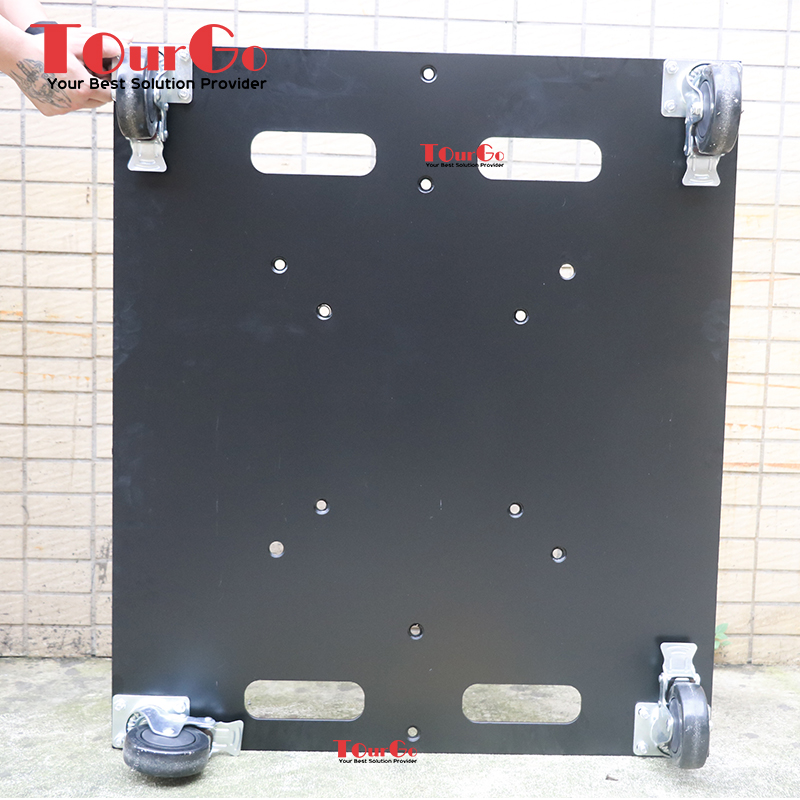

truss-base-plate



global-truss-base-plate

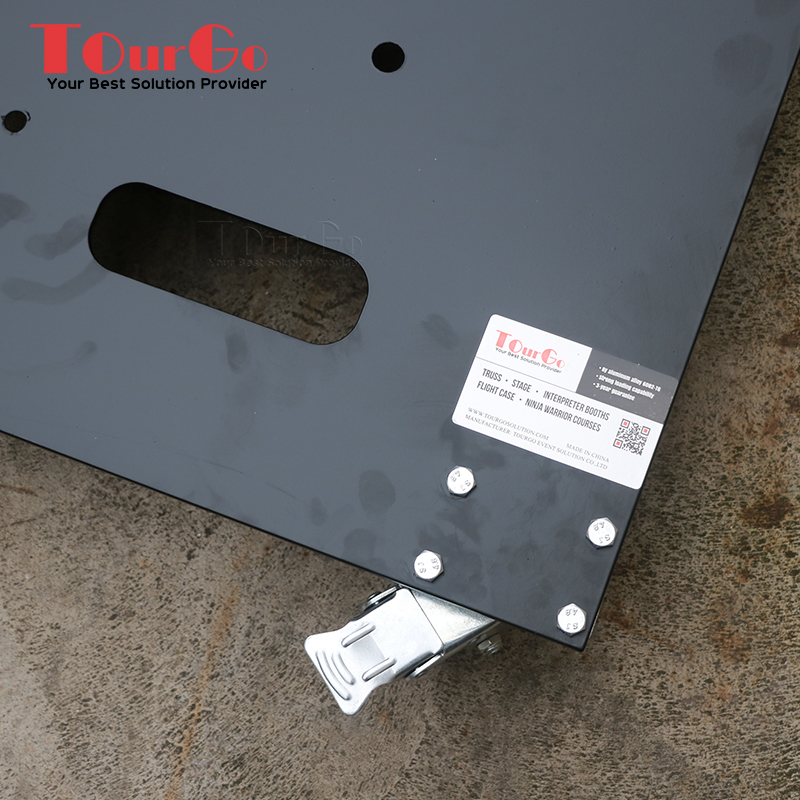

aluminum-base-plate

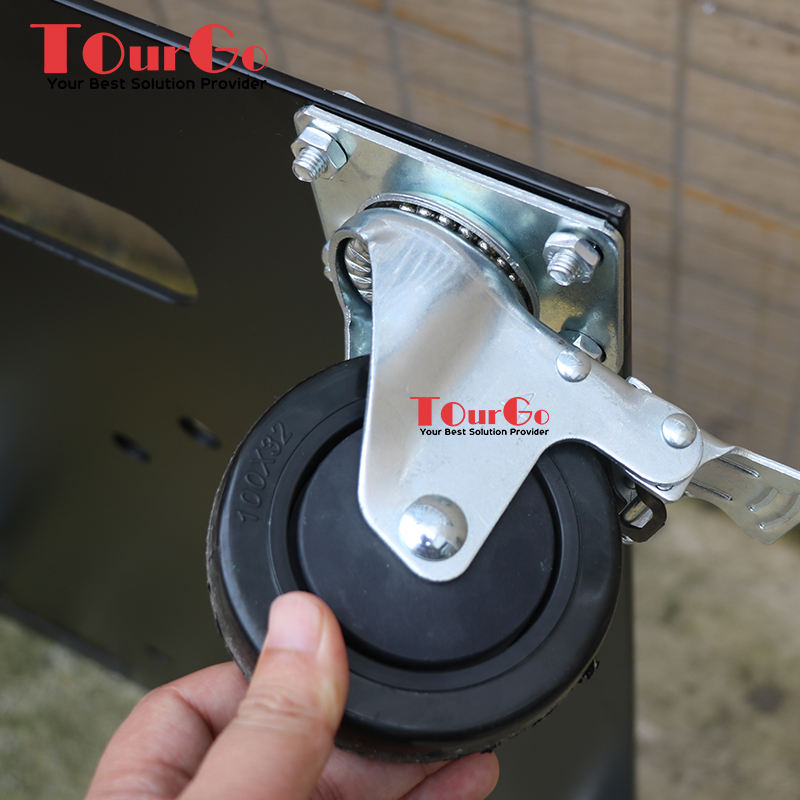

base-plate-with-wjeels



base plate with wheels

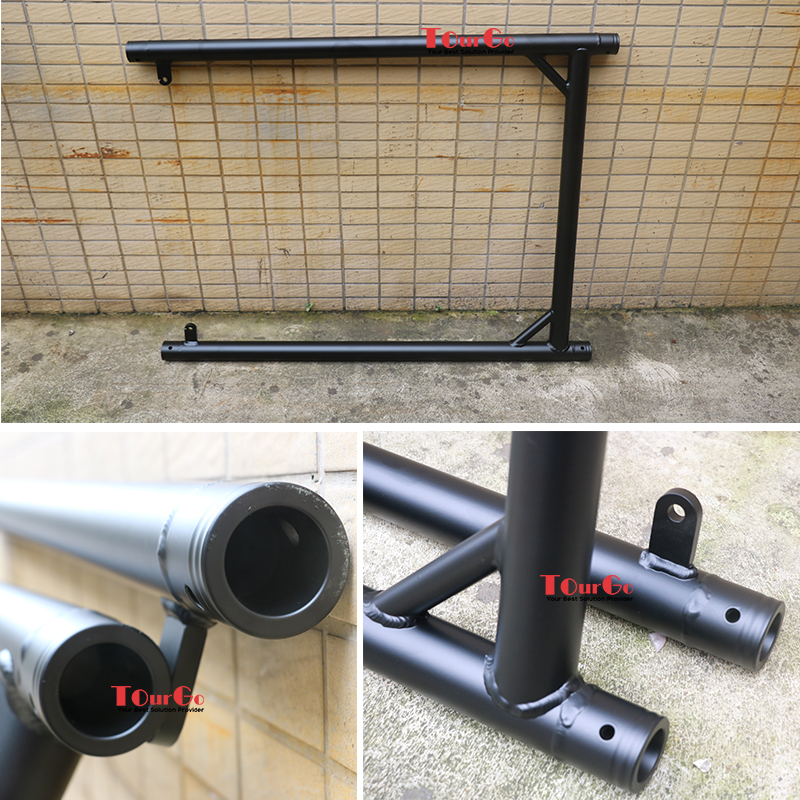

U Torm:

cosmic-truss-u-torm

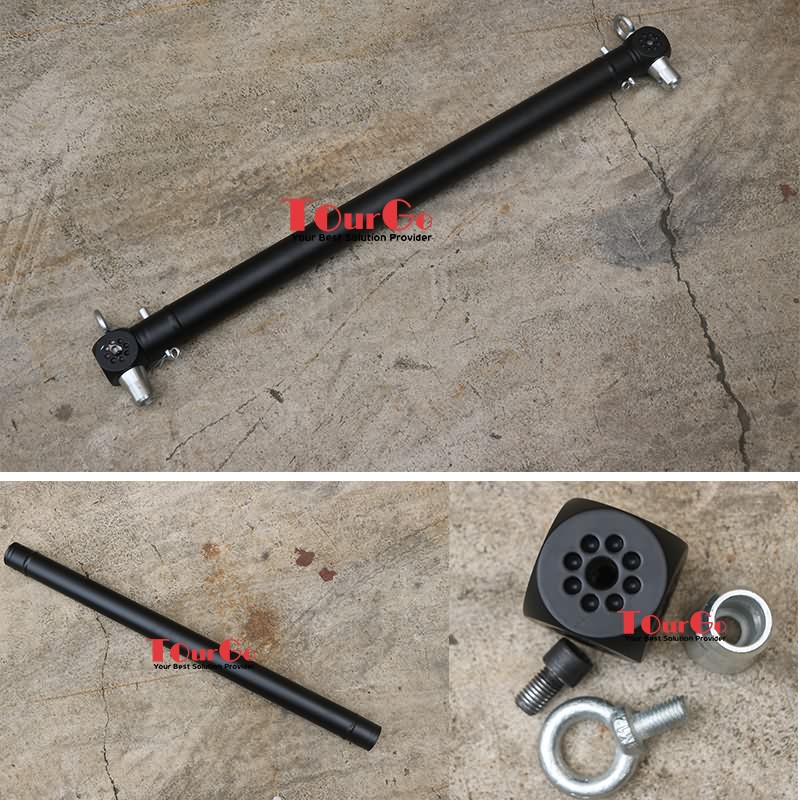

U Top:

u-top-truss

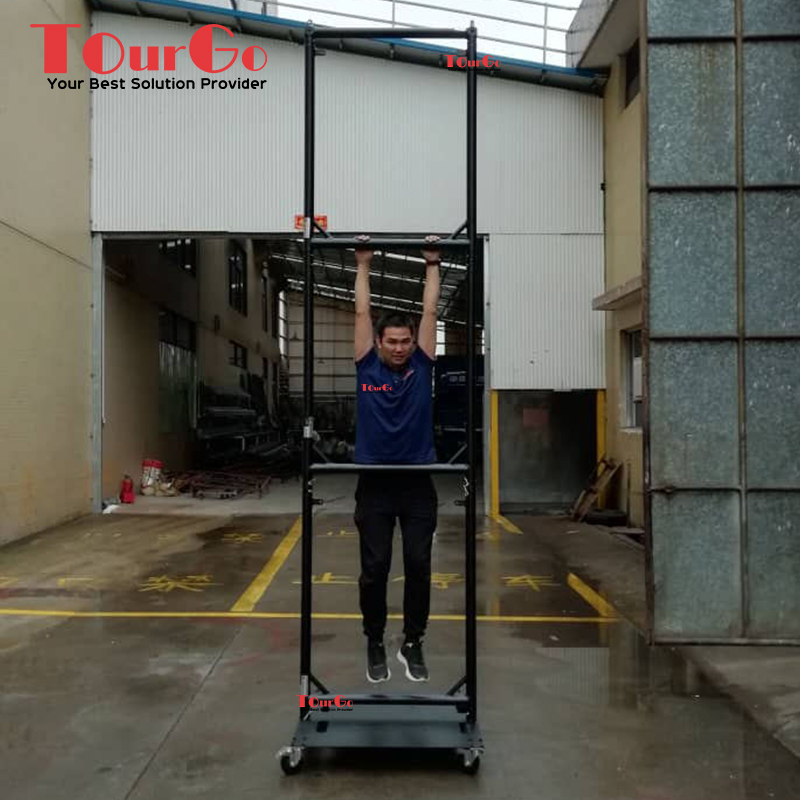

A complete U Torm: strong load capacity

modular truss u torm

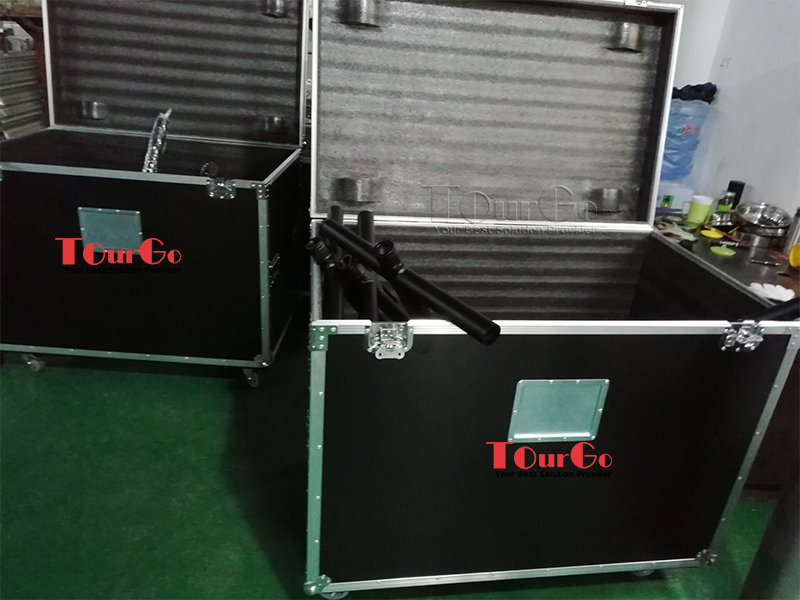

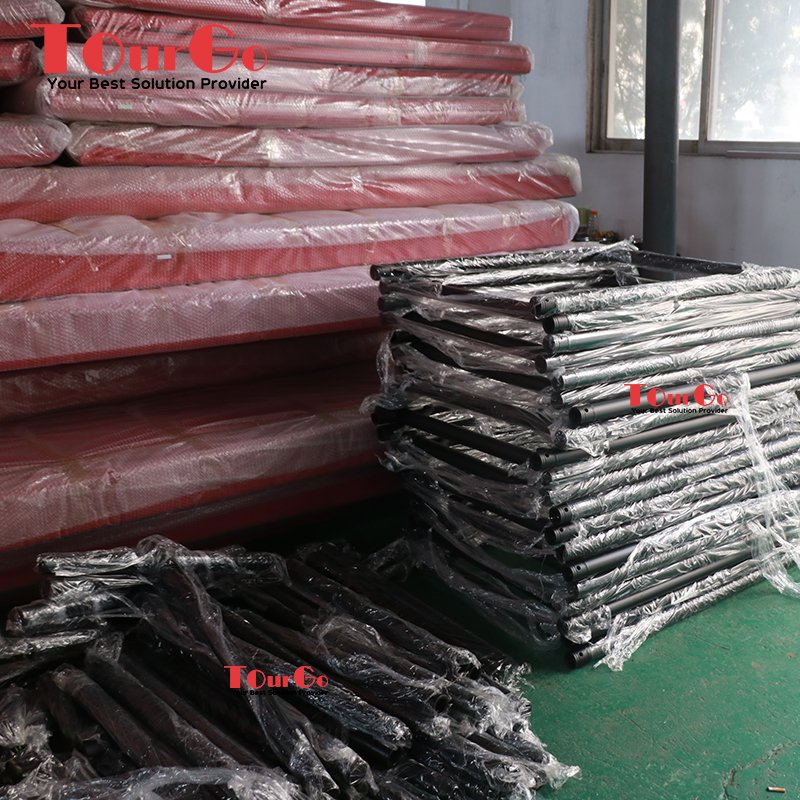

Package:

modular-truss-u-torm



u-torm -truss





Specification:

http://www.tourgosolution.com

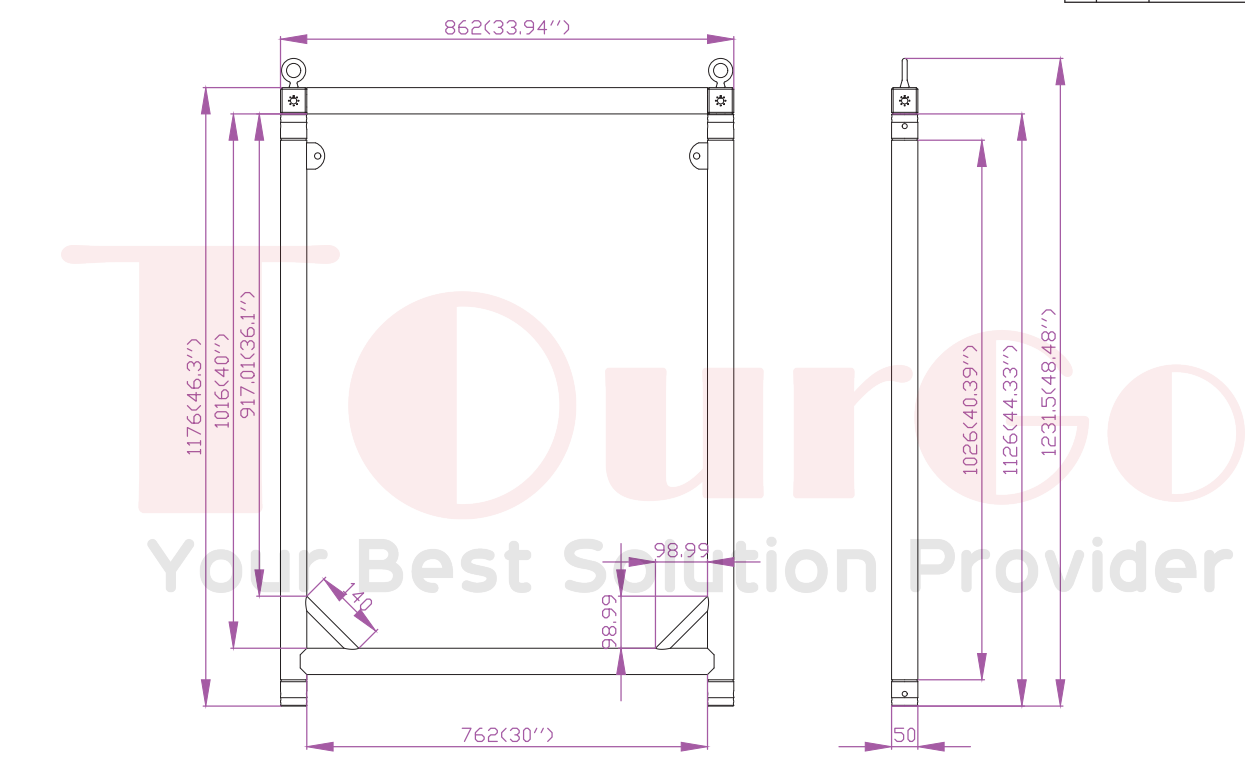

U-Torm:

Outer Dimension
33.94″ x 2″ x 46.3″ (862 mm x 50mm x 1176 mm)
Inner Dimension
30″ x 2″ x 40″ (762 mm x 50 mm x 1016 mm)
Weight
4.62 lbs. (2.1 kg)
Center point loading
220 lbs. (100 kg)
Material
6082-T6 aluminum alloy
Accessories :
Conical connecting element with pin and safety clip (2 included)
U-Top:
Dimensions with eyebolt
33.94″ x 2″ x 4.3″ (862mm x 50mm x 110mm)
Weight
3.3 lbs. (1.5 kg)
Center point loading
220 lbs. (100 kg)
Accessories :
Conical connecting element with pin and safety clip (2 half conicals included)

http://www.tourgosolution.com

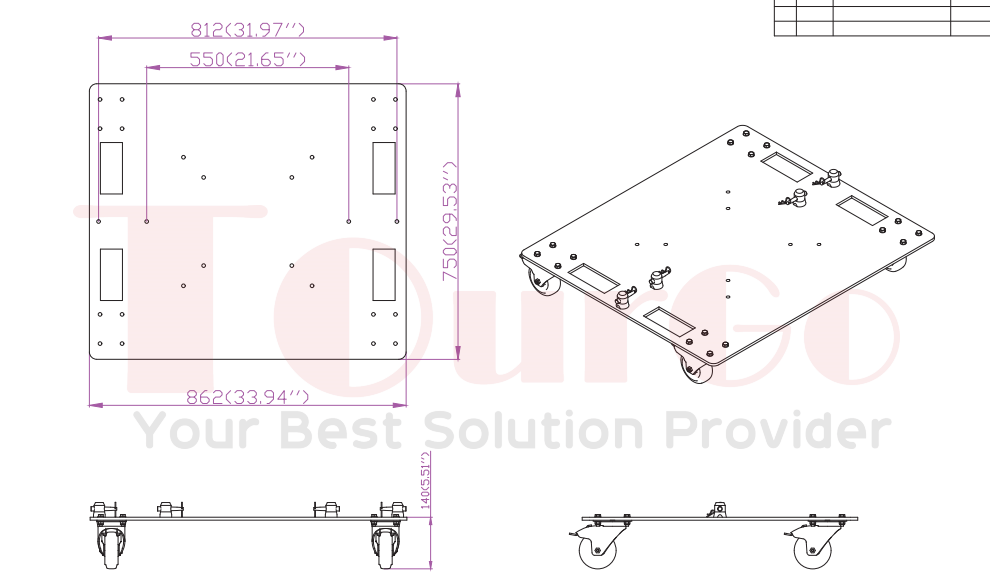

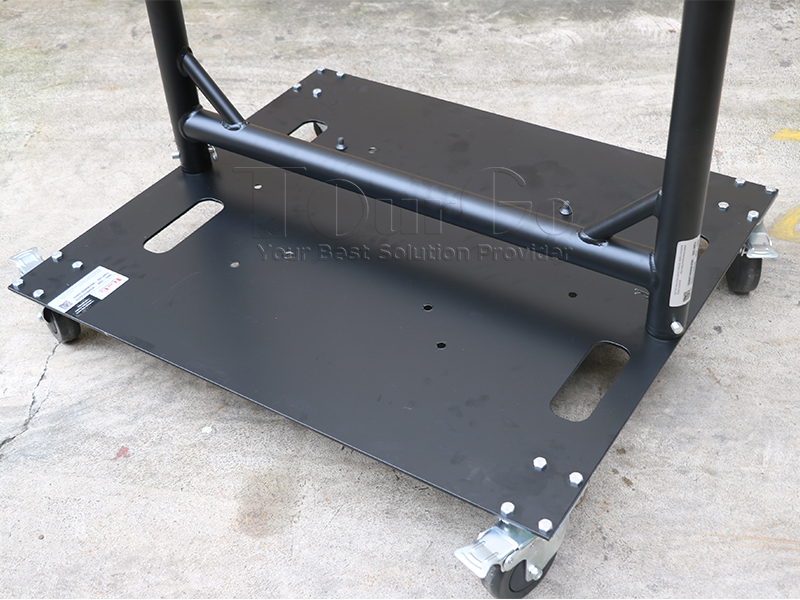

Base Plate with Casters:

Dimension
33.94″x29.53″(862x750x8mm)
Weight
60lbs(27kg)

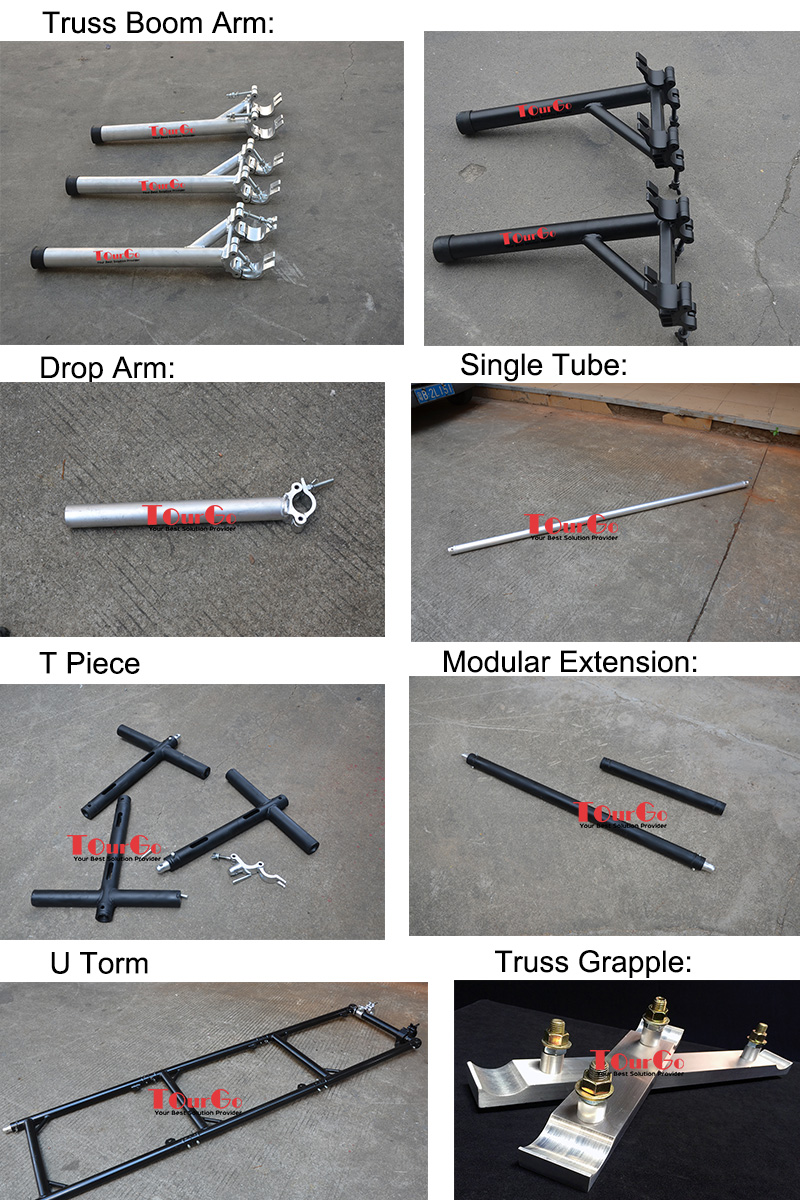

Related Products:

http://www.tourgosolution.com


Post time: May-22-2019
