Led Pixel Mapping Light Bar – 4×40

Led Pixel Mapping Light Bar – 4×40
  • led pixel mapping
  • pixel christmas lights
  • pixel led light
  • pixel light
  • pixel mapping lighting
  • rgb led pixel lights

Product Model : TG-LPM40

Product Features : 1.Near-effortless pixel mapping and video one-meter bar, with four rows of LED, that combine to make a system that sets up in minutes with minimal technical know-how

2.Easily control each using Art-Net(3.0 compliant) or ArKaos Kling-Net and Art-net

3.Quickly configure these slim, one-meter strips and link up to

4.four in-lines with network cables or create vertical effects with new hardware linking system

5.Achieve wide viewing angles and excellent color rendering with tri-colored SMD5050 LEDs covered by a smooth diffuser plate

6.Easily manage configuration and software updates with the network-based remote web server Works with ArKaos Media Master Express for a plug&play system that requires little training to operate

INQUIRY DETAILS *

INQUIRY DETAILS
  • captcha

Product Detail

Specifications

FAQ

Product Tags

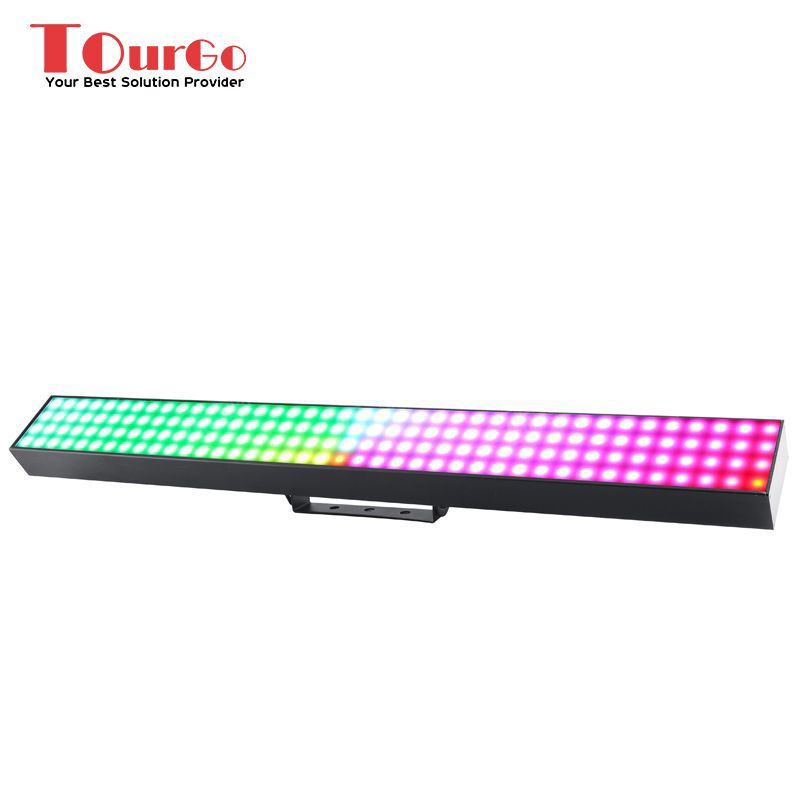

Led Pixel-Mapping Bar is a linear LED video fixture for the rental market wih 25mm pixel pitch and  an extensive range of optical accessories for a wide variety of looks (black and white milk included, transparent on demand). Each bar features 4×40 160 LED RGB/FC LEDs with individual pixel control, 1 meter long, 120° viewing angle. The mechanics ofLed Pixel-Mapping Bar2.0 have been studied to grant a great mounting flexibility through a sliding hardwares on the back for truss application and on the side for multiple vertical linking.

Light source and optics:
4×40 (160 total) SMD5050 RGB/FC high-efficiency LEDs

Luminous flux: black cover = 540,20 NIT, milky cover = 2160,80 NIT, transparent cover = 2586,20 NIT

Pixel2pixel control

Viewing angle: 120°

Pixel pitch: 25 mm

Color synthesis: RGB/FullColor mixing (>16 million colors)

LEDs average life span: >50’000h




http://www.tourgosolution.com/products/led-pixel-mapping-light-bar.html ‎

http://www.tourgosolution.com/products/led-pixel-mapping-light-bar.html ‎

http://www.tourgosolution.com/products/led-pixel-mapping-light-bar.html ‎

http://www.tourgosolution.com/products/led-pixel-mapping-light-bar.html ‎

http://www.tourgosolution.com/products/led-pixel-mapping-light-bar.html ‎

http://www.tourgosolution.com/products/led-pixel-mapping-light-bar.html ‎

  • Previous:
  • Next:
  • Electronics and features:

    Art-Net and Kling-Net&DMX control protocol supported

    Channels Art-Net: 480

    Channels Dmx:8/480

    Power and Current: 51 W, 0.36 A @ 120 V, 60 Hz

    Power and Current: 57 W,0.21 A @ 208 V, 60 Hz

    Power and Current: 63 W, 0.18 A @ 230 V, 50 Hz

    Weight: 7.6 lb (3.5 kg)

    Dimensions: 39.4 x 4.2 x 4.6 in(1000 x 107 x 117 mm)

    Accessories For Led Pixel-Mapping Bar:

    Item description standard configuration
     lifting handle/sliding parts splicing Yes
    DMX cable/Powercon cable Power supply+signal transmission Yes
    RJ45 cable/safety rope/Light Hook signal transmission+safety NO
    Fly case transportation NO

    1.  Why your factory provide not only  lighting truss, but also  flight case, portable stage, pipe and drape ,ect ?



    Actually, the reason is very simple. All our product need the similar raw material , like plywood, aluminum alloy tube. We just need buy the professional machines, hire the skillful workers and enhance the R& D Team. We hope we could provide “ One-Stop service” for our clients.

    Our concept is “ Tourgo , Build your dream”  Our goal is to win the bright future and be the No. 1 Pro sound & Light equipment manufacturer.



    2. Does Tourgo company provide the OEM service?



    Yes, Tourgo could provide the OEM service according to your request.

    We have the ten-year designers team, the customized flight case, portable stage, and  lighting truss also is available,  just need your idea!



    3. Does Tourgo company offer warranty for the sold products?



    Only if your products are purchased from Tourgo company, we promise life time warranty. In other words, if your products are purchased directly from us or our dealers, you can enjoy such warranty.



    4. Do you provide the flight cases parts for replacement I purchased from Tourgo company ?



    Well, almost all our flight cases parts are replaceable. You can replace them yourself. If you want to get them, you can contact us soon.



    5. What is the mean of Alphabet “U” in rack case catalog?



    For rack case, we offer 2U, 4U, 6U, 8U and other models of “U” cases. “U” here is a unit referring to inner height of the rack case . Usually, 1 U equals 1.75” (4.45cm).



    6. I want to distribute your products in my country. How can I become a distributor ?



    Tourgo has searched global deals for all our products. We will provide preferential offers for all deals, especially those in large amount. For most information about dealership, please visit our Distributor Wanted.



    7. What is the MOQ for your products?



    Tourgo requires no minimum order quantity, and we can ship single item samples or large orders worldwide for any clients who are in need of our products



    8. Can I get any discount for my order?



    Yeah, you can contact our sales team, depending on the amount of your order

    - The products you need

    - The exact desired order quantity

    - Your desired time frame

    - Any special packing instructions

    With this information we will get back to you with a quotation.

    We also offer limited time promotion, please notice our post in our website.



    9. What is your payment term, delivery time? Do you have the reliable freight agent?



    The payment term is T/T, Western Union.

    Delivery time is 7 – 15 days after we get the payment. Surely, if you need the goods urgently, we  try our best to meet your demand. Moreover, we  will send your goods pictures to you before the shipping

    Yes, as a leading manufacturer, we have the reliable freight agent and has done the business with them for many years. If you have your own agent,  we would like to coordinate with them fully.



    10. Will you send the drawing of the custom product for our confirmation before the production?



    Yes, Absolutely! Like custom flight case, lighting truss project, portable stage project. We will provide the professional drawing for your confirmation before our production.
