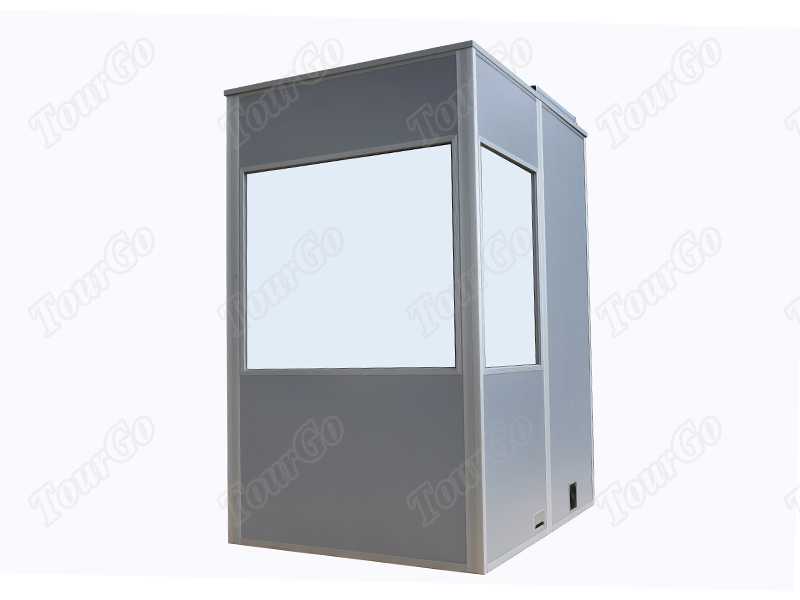

Super LightWeight Interpretation Booths for One person
Super LightWeight Interpretation Booths for One person
Super light weight interpreter booths TG-1SBOOTHS is a super light weight, modular, easy to mount interpreter booth for 1 person, using the optional extension sets. 1 or 2 persons can easily build the booth without any tools. The TG-1SBOOTHS complies with the ISO 4043 norm for mobile interpreter booths and is equipped with table and 1 cable ducts.
Interpreter booths are designed to create the best acoustic environment for the distinction of various languages spoken simultaneously, It provides the perfect visual and two-way audio communication between the interpreters and the participants in various meetings conferences.
Super LightWeight Interpretation Booths for One person Configuration :
1. sound insulation door: Easy opening 180 angle without noise; Outward;
2. Front window: 700*800mm (H); Front window: 1100mm * 800mm (H) , Ample sight space; acrylic material ( thickness 6mm; Anti-scratch; Prevent sharp light outside).

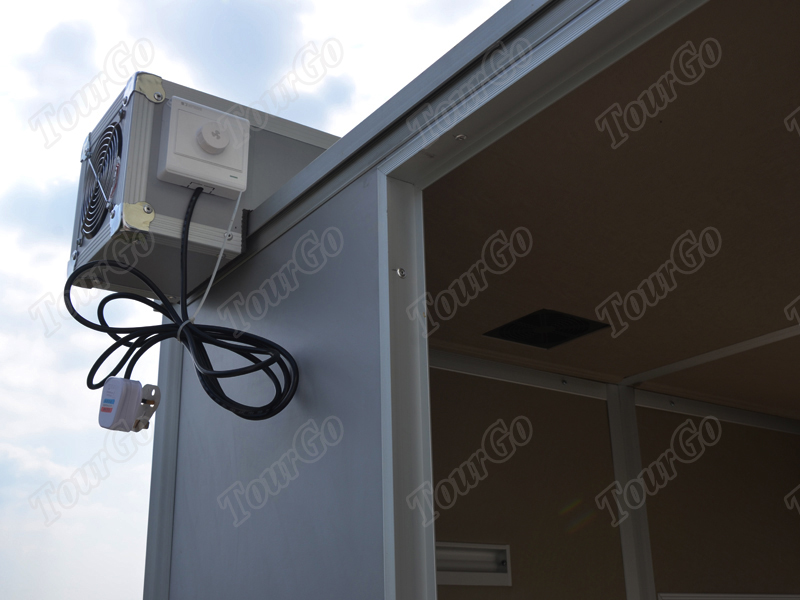

3. ventilation system: two silent ventilation system on top (optional), almost silence(< 40dB).

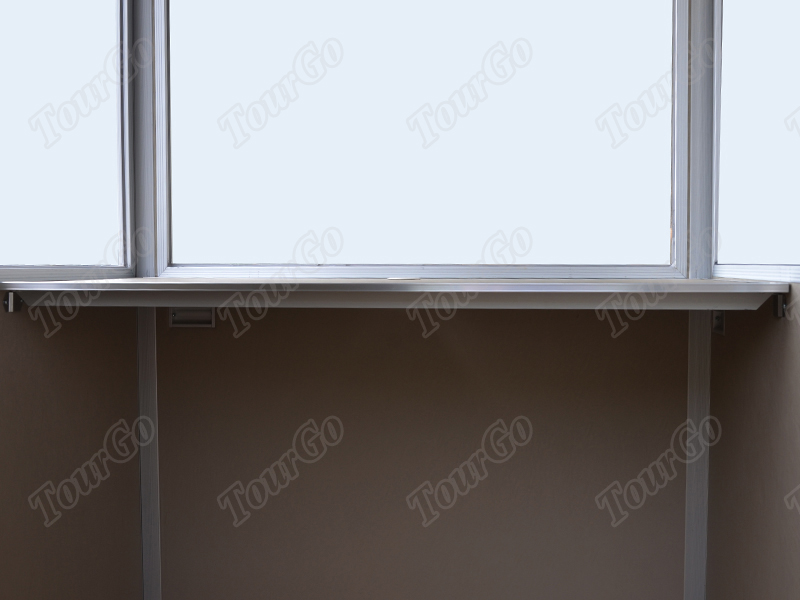

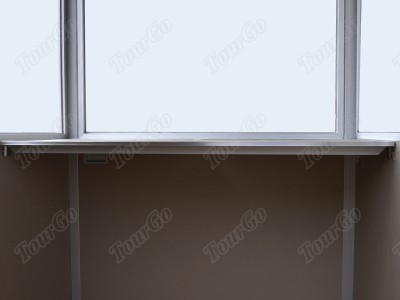

4. work surface: 112cm(L)*50cm(W)*73cm(H); Can bear weight of all equipments

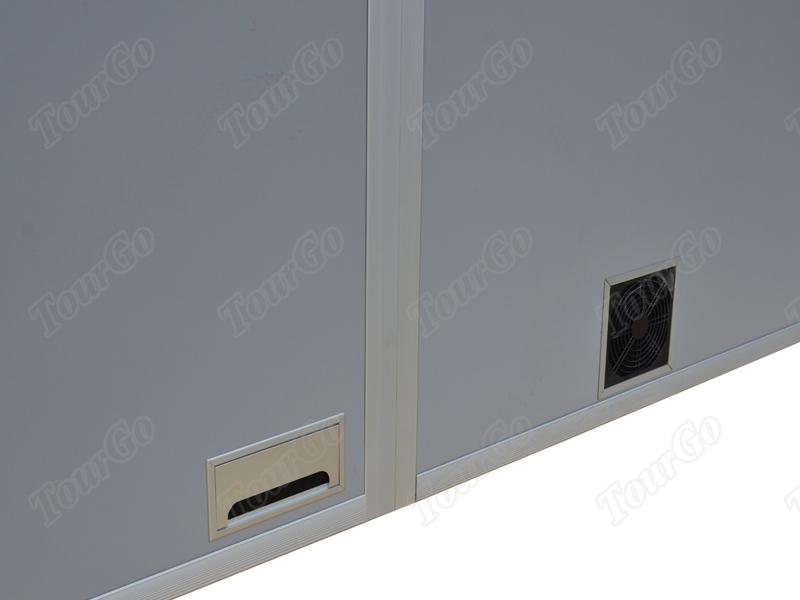

5. cable passage: Dia. 5cm
6. standard 6 wall panels(3 of which have windows with acrylic and 1 door panels), 2 roof panels , 1 working table. the booth also have 1 cable ducts
Super LightWeight Interpretation Booths for One person Capacity of sound-proof :
The capacity of sound proof of our booth is completely over ISO-4043 standard, at least 30 dB
Super LightWeight Interpretation Booths for One person Benfit :
A. Easy installation, can be performed by 1-2 person
B. Very comfortable working environment
C. Clear view window (acrylic)
D. Durable build
E. The table is easy to install without using tools at all
F. Good looking and Comfortable
G. Suitable for all types for conference systems
Super LightWeight Interpretation Booths for One person Specification:
Standard suited for 1 persons
Standard size:W1200xD1600xH2000 mm
Weight approx. 110KG
Standard 6 panel configuration
Ventilation system integrated in roof panels
Outer Materials is high density plywood coated with fire-retardant paint
dark grey color, other colors are available on demand.
Simultaneous Interpretation Booths for 1 person Package :
Hard flight cases
Dimensions :W2080xD540xH1360 mm
Flight case weight: 60kg
6 swivel wheels with brake
1. Why your factory provide not only lighting truss, but also flight case, portable stage, pipe and drape ,ect ?
Actually, the reason is very simple. All our product need the similar raw material , like plywood, aluminum alloy tube. We just need buy the professional machines, hire the skillful workers and enhance the R& D Team. We hope we could provide “ One-Stop service” for our clients.
Our concept is “ Tourgo , Build your dream” Our goal is to win the bright future and be the No. 1 Pro sound & Light equipment manufacturer.
2. Does Tourgo company provide the OEM service?
Yes, Tourgo could provide the OEM service according to your request.
We have the ten-year designers team, the customized flight case, portable stage, and lighting truss also is available, just need your idea!
3. Does Tourgo company offer warranty for the sold products?
Only if your products are purchased from Tourgo company, we promise life time warranty. In other words, if your products are purchased directly from us or our dealers, you can enjoy such warranty.
4. Do you provide the flight cases parts for replacement I purchased from Tourgo company ?
Well, almost all our flight cases parts are replaceable. You can replace them yourself. If you want to get them, you can contact us soon.
5. What is the mean of Alphabet “U” in rack case catalog?
For rack case, we offer 2U, 4U, 6U, 8U and other models of “U” cases. “U” here is a unit referring to inner height of the rack case . Usually, 1 U equals 1.75” (4.45cm).
6. I want to distribute your products in my country. How can I become a distributor ?
Tourgo has searched global deals for all our products. We will provide preferential offers for all deals, especially those in large amount. For most information about dealership, please visit our Distributor Wanted.
7. What is the MOQ for your products?
Tourgo requires no minimum order quantity, and we can ship single item samples or large orders worldwide for any clients who are in need of our products
8. Can I get any discount for my order?
Yeah, you can contact our sales team, depending on the amount of your order
- The products you need
- The exact desired order quantity
- Your desired time frame
- Any special packing instructions
With this information we will get back to you with a quotation.
We also offer limited time promotion, please notice our post in our website.
9. What is your payment term, delivery time? Do you have the reliable freight agent?
The payment term is T/T, Western Union.
Delivery time is 7 – 15 days after we get the payment. Surely, if you need the goods urgently, we try our best to meet your demand. Moreover, we will send your goods pictures to you before the shipping
Yes, as a leading manufacturer, we have the reliable freight agent and has done the business with them for many years. If you have your own agent, we would like to coordinate with them fully.
10. Will you send the drawing of the custom product for our confirmation before the production?
Yes, Absolutely! Like custom flight case, lighting truss project, portable stage project. We will provide the professional drawing for your confirmation before our production.
