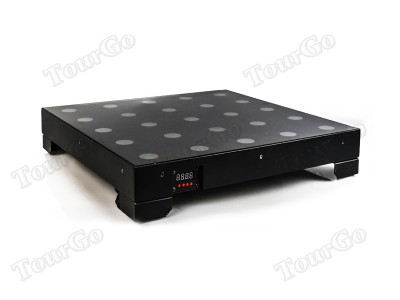

25x3w LED Matrix Beam Light Dance Floor

25x3w LED Matrix Beam Light Dance Floor
  • 25x3W LED matrix beam dance floor
  • LED Matrix Beam Light Dance Floor
  • Matrix Beam Led Panel Dance Floor
  • Matrix Led Dance Floor
  • 25*3W Matrix Beam LED Dance floor
  •  25x3w led matrix beam dance floor

Product Model : TG-LD45MX

Product Features :
1. Load bearing :1600KG /M2
2. Each led can be control individually
3. Surface board is 10mm and protect the led dance floor edge well
4. Compatible with all dmx software and dmx console


  • captcha

Product Detail



Product Tags

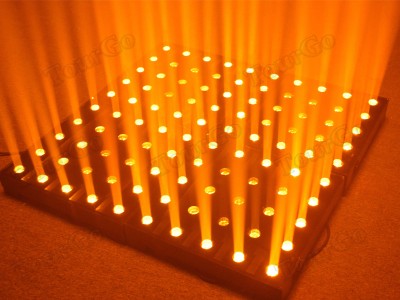

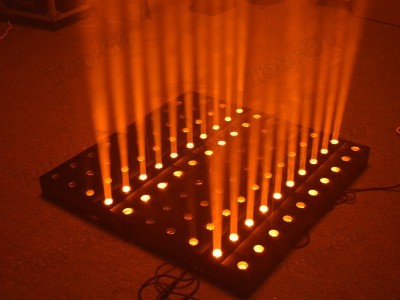

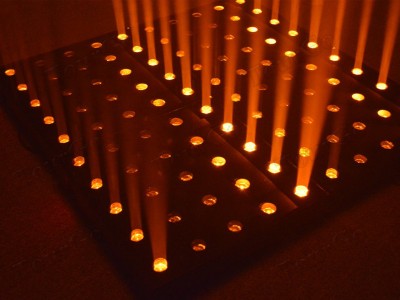

This is a new innovation adapted from the Matrix Beam led panels seen in concerts back of the stage. This unique led dance floor is fully DMX and controllable with recommended Matrix software and all other DMX software.


  • Load bearing :1600KG /M2
  • Surface board is 10mm and protect the led dance floor edge well
  • Steel plate base material and easy to assemble all dance floor
  • Each led can be control individually
  • Different patterns :Number 0-9 ,letter A-Z etc ,.
  • Compatible with all dmx software and dmx console

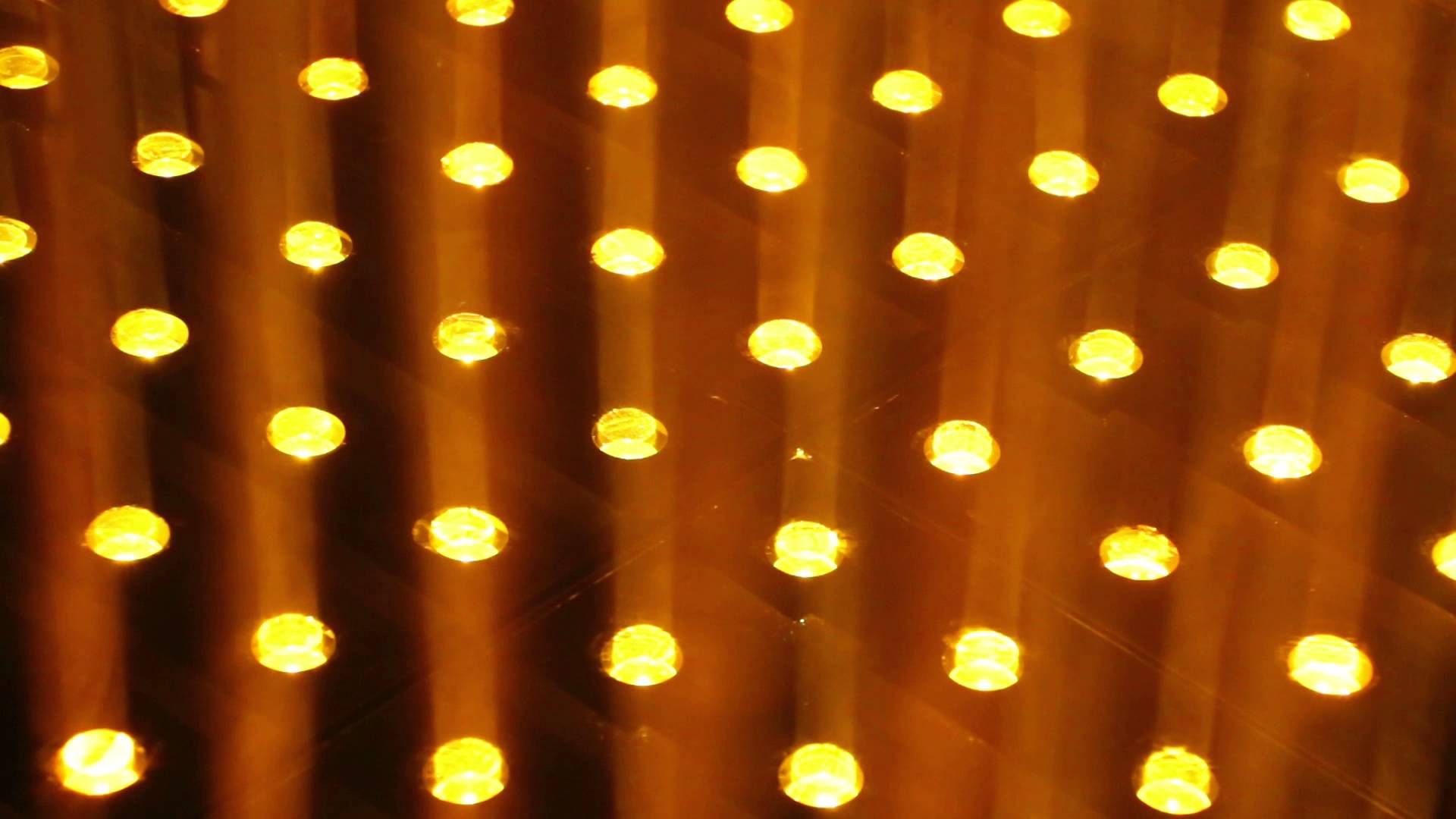

  • Strong beam effect with 8 degree
  • Easy and quickly to assemble with steel plate

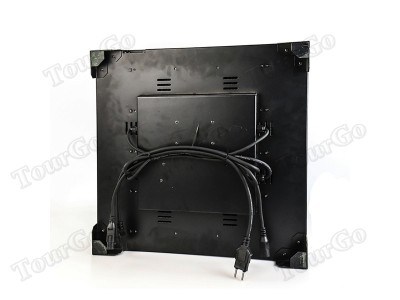

  • Power in/out and dmx in/out ,easy to connect
  • Led display with 4 button menu for easy operation
  • Full range dimmer and variable strobe
  • Long life led
  • Perfect for stage ,wedding ,night club ,party etc,.




  • Previous:
  • Next:
  •  Parameters:

    • Light source :25x3w led
    • Led color :cold white /warm white /Red /Amber/RGBW 4 in 1
    • Auto switching power supply unit
    • Power supply :AC90V-240V,50-60HZ
    • LEDs average lifespan: >50,000hrs
    • Drive mode: constant current
    • Drive current(mA): 600
    • Power consumption:95w
    • Flicker free(refresh rate>400 Hz)
    • Housing: Metal, tempered glass
    • Entire casing as heat sink for LED source
    • Environment temp: -20℃-60℃
    • Load bearing :1600KG/M2
    • IP rating: IP20



    • Dimensions(mm):L450×W450×H85
    • Packing size(mm): L570×W570×H220
    • Thickness of surface board :10MM
    • Depth of the edge :9CM
    • Net Weight: 6.3  Kg



    • Operation mode: DMX 512,AUTO,Master and slave ,sound active ,manual operation .
    • Compatible with all DMX Control software and DMX console
    • Channel :1/2/25/27ch
    • Setting and addressing:4-digit LED
    • DMX data In/out: XLR 3Pin(XLR 5pin is optional)
    • 210 kinds of static pattern choosing
    • Built-in color changing macro, fade in & out macro
