3 Person Translation Booth for Simultanous Conference System

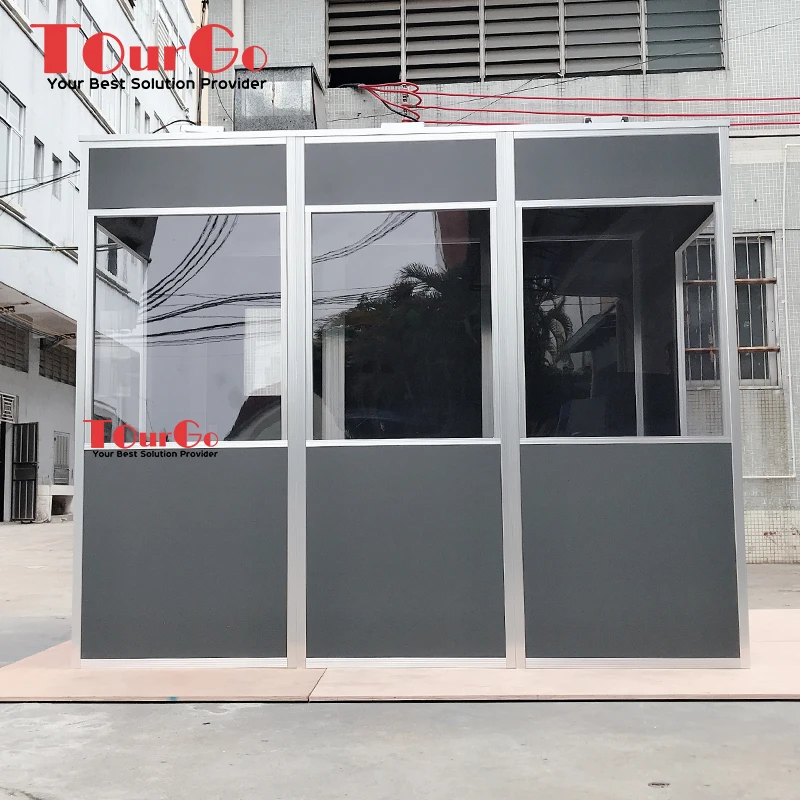

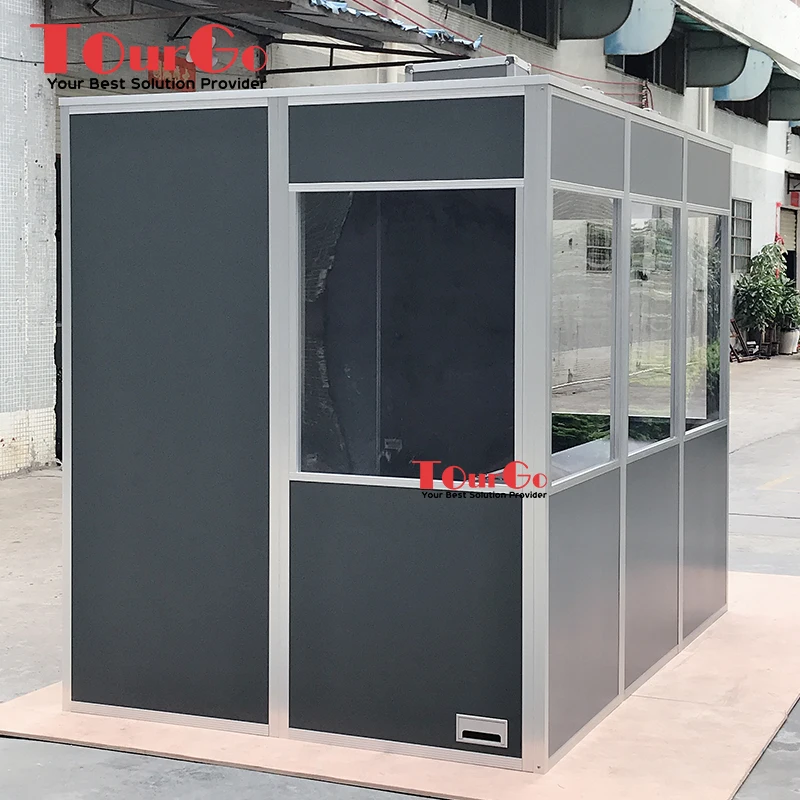

The light weight interpreter booths TG-3LBOOTHS is a light weight, modular, easy to mount interpreter booth for 3 persons, and can be extended for up to 4 persons, using the optional extension sets. 1 or 2 persons can easily build the booth without any tools.
|
Ref.
|
TG-3LBOOTHS
|
|||
|
External Dimension in mm
|
W 2470 x D 1670 x H 2150 incl, ventilation fans
|
|||
|
Internal Dimension in mm
|
W 2400 x D 1600 x H 2000
|
|||
|
Panel Thickness in mm
|
35
|
|||
|
Weight
|
358.4 kg (incl. ventilation system and table Dark)
|
|||
|
Colour
|
Gray (Other colours available on request)
|
|||
|
Sound insulation capacity
|
Comply with ISO 4043:2016
|
|||
|
Table Dimensions in mm
|
2400x 500
|
|||
|
Side Window Dimension in mm
|
680 x 860
|
|||
|
Ventilation
|
included
|
|||
|
Power Supply
|
110~130V/220~240V – 50~60Hz 10A
|
|||
|
Be Optional
|
LED lights on the roof
|
|||
Characteristic:
1.Easy to set up and strike down. Tow person can finish this job in 15 min without any tool.
2.Materials featured anti-static, odorless and fire-retardant.
3.Aluminum alloy frame,making the structure rigid and light-weight.
4.Simple and high-grade appearance.
5.The ventilation system consists of 2 noiseless ventilation fans,to keep air inside booth clean and fresh.
6.High-density fire-retardant foam panel(thickness 35mm), sound attenuation from 24 to 35dB. Meet for ISO4043 2016 standards.
7.Durable Working Table:Load capacity is more than 80kg.
Post time: Aug-25-2021
