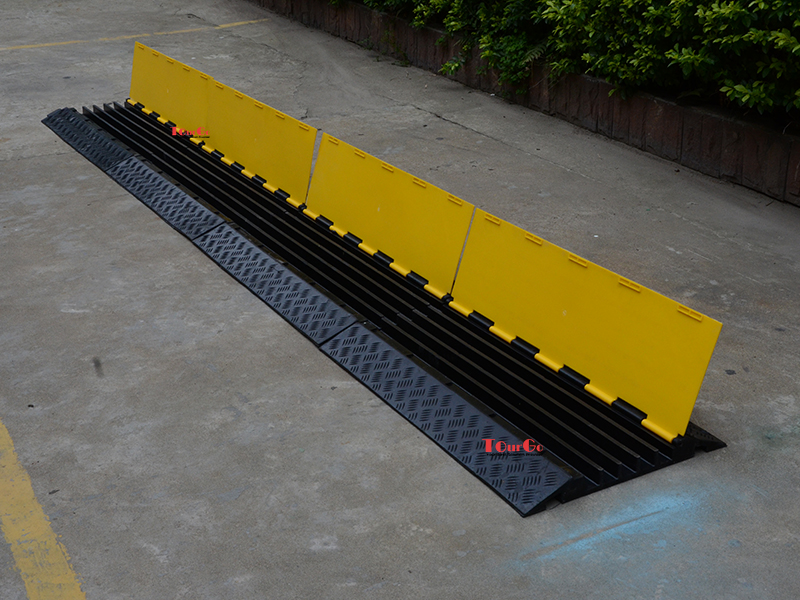

5 Channel Rubber Electrical Wire Cable Cover Speed Bump Guard Warehouse Cord Protector Ramp
Protect up cables, hoses, or wires around a right curve with these add on sections for the extend 2-channel rubber cable protector. Each bend section locks to the rubber cable protector with a male and female tab connection system.
Our Cable Protector Specification
| Model NO | Material | Size | Weight | Load Capacity |
| TG-CP1 | 100% good rubber | Overall size:1000*220*32mm
Channel size: 72mmX20mm |
5kg | 20T |
| TG-CP1A | 100% good rubber | Overall Size :1000*260*65mm Channel Size:70mmX50mm |
9kg | 20T |
| TG-CP1E | 100% good rubber | Overall Size :1000*580*125mm Channel Size:130mmX105mm |
19.3kg | 20T |
| TG-CP01B | 100% good rubber | Overall Size : 1000*500*100mm Channel Size:80mmX80mm |
21kg | 20T |
| TG-CP2 | 100% good rubber | Overall Size: 985X435X66mm Channel Size:55x50mm |
6.5kg | 20T |
| TG-CP2A | 100% good rubber | Overall Size:1000X250X45mm Channel Size:30mmX33mm |
10kg | 20T |
| TG-CP2T | 100% good rubber | Overall Size:320*250*50mm Channel Size:35mmX35mm |
3kg | 20T |
| TG-CP2E | 100% good rubber | Overall Size:900X600X100mm Channel Size: 90mmX90mm |
22kg | 40T |
| TG-CP2E01 | 100% good rubber | Overall Size:900X600X100mm Channel Size: 90mmX90mm |
22kg | 40T |
| TG-CP3 | 100% good rubber | Overall Size: 1000X300X47mm Channel Size:35X30mm |
8.5kg | 20T |
| TG-CP3E | 100% good rubber | Overall Size: 910X500X70mm Channel Size:70x50mm |
15kg | 20T |
| TG-CP3T | 100% good rubber | Overall Size: 910X500X70mm Channel Size:70X50mm |
11kg | 20T |
| TG-CP3A | 100% good rubber | Overall Size: 910X550X80mm Channel Size:65mmx60mm |
15kg | 20T |
| TG-CP4 | 100% good rubber | Overall Size:910X500X60mm
Channel Size: 45*40mm |
18kg | 10T |
| TG-CP5 | 100% good rubber | Overall Size:910X500X50mm Channel Size:35X30mm |
13kg | 10T |
| TG-CP5A | 100% good rubber | Overall Size: 910X500X50mm Channel Size:35X35mm |
13kg | 20T |
| TG-CP5T | 100% good rubber | Overall Size:600*620*70mm
4 make a 90 degree Angle |
12kg | 15T |
| TG-CP5E | 100% good rubber | Overall Size: 900x600x75mm Channel Size:40X50mm |
25kg | 15T |
