Stage barrier is a portable and foldable barrier for crowd control. The stage barrier is made of high quality steel and aluminum, it consists of front panel, foot board, front board and inner lock.
Specifications:
| Material | Aluminum 6082-T6 |
|---|---|
| Surface | Mill finish (silver) , black powder coated, etc. |
| Size (H × W × D) | 1.2 m × 1.0 m × 1.2 m, customer sizes are also available. |
| Folding size (H × W × D) | 1210 mm × 1100 mm × 180 mm |
| Top semi-circle tube | 40 mm, 50 mm, thickness: 2 mm, 3 mm. |
| Frame tube | 25 mm × 50 mm, 40 mm × 50 mm, 40 mm × 60 mm, 60 mm × 60 mm, thickness: 1.5 mm. |
| Brace tube | 50 mm × 25 mm, thickness: 3 mm. |
| Vertical tube | 35 mm × 35 mm, thickness: 2 mm. |
| Foot board tube | 25 mm × 50 mm, thickness: 3 mm. |
| Front panel | Thickness: 1.5-2 mm. |
| Front board | Thickness: 4 mm. |
| Panel holes diameter | 8 mm |
| Weight | 30 kg, 31 kg, 32 kg, 33 kg. |

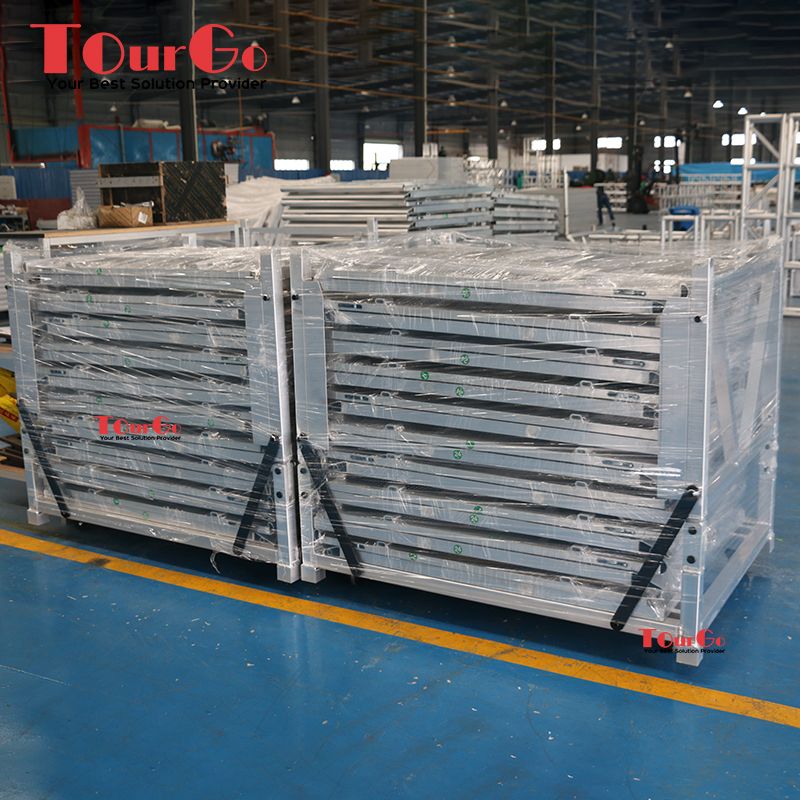

| Packing | With cartons, pallet, air bubble film or as request. |
Post time: Jan-09-2021
