The Aluminum Barrier is a lightweight crowd control system made of aluminum. The Barrier has a self-weight of only 34 kg per 1 m section. The smooth round top bar and the bottom bar inside of slop incorporate a steel 15 mm slot pin that provides easy connection points for the Barriers. In order to strong the barricade connection, there are also 2 sets interlock and 2 sides bolt connection in case of uneven ground . All profiles have soft, rounded edges for maximum comfort. The design load of the barrier is 10528N/m1.
|
Brand
|
TourGo
|
|
Model
|
TG-CBA885
|
|
Material
|
Aluminum 6061-T6 (Polished)
|
|
Surface Finish
|
Mill Finish,Powder Coated.
|
|
Net Weight
|
62.13 lbs
|
|
Measurement
|
Width: 39.3” Depth: 49.21” Height: 47.21”
|
|
Thickness
|
3mm
|
|
Capacity
|
Floor: 1,322 lbs Step: 330 lbs
|
…
…
…
Made of Aluminum 6061-T6, 3mm Thickness Wall

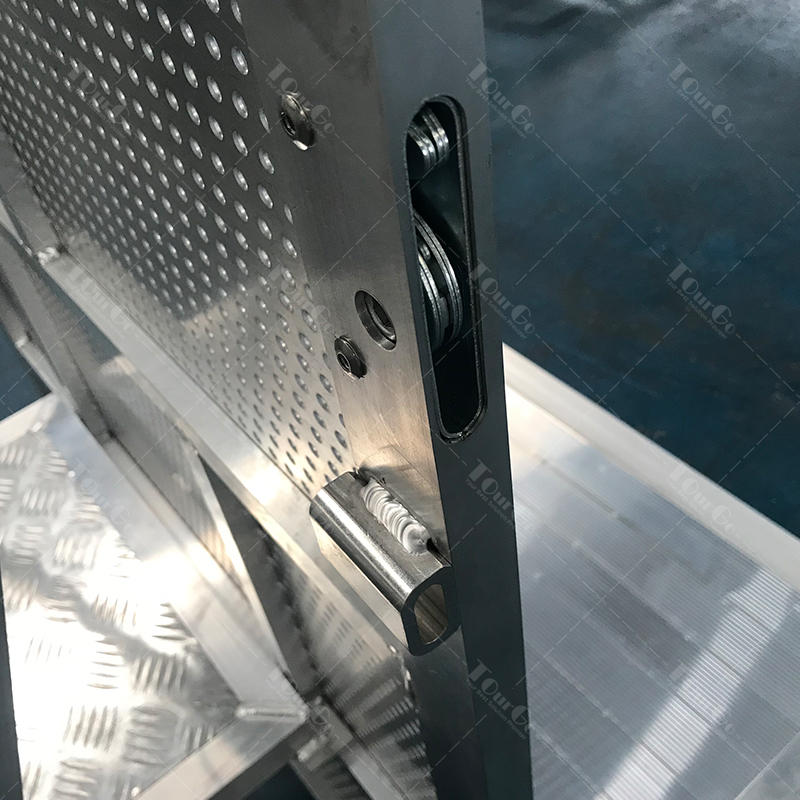

Double link, easy yo install, more stronger
…

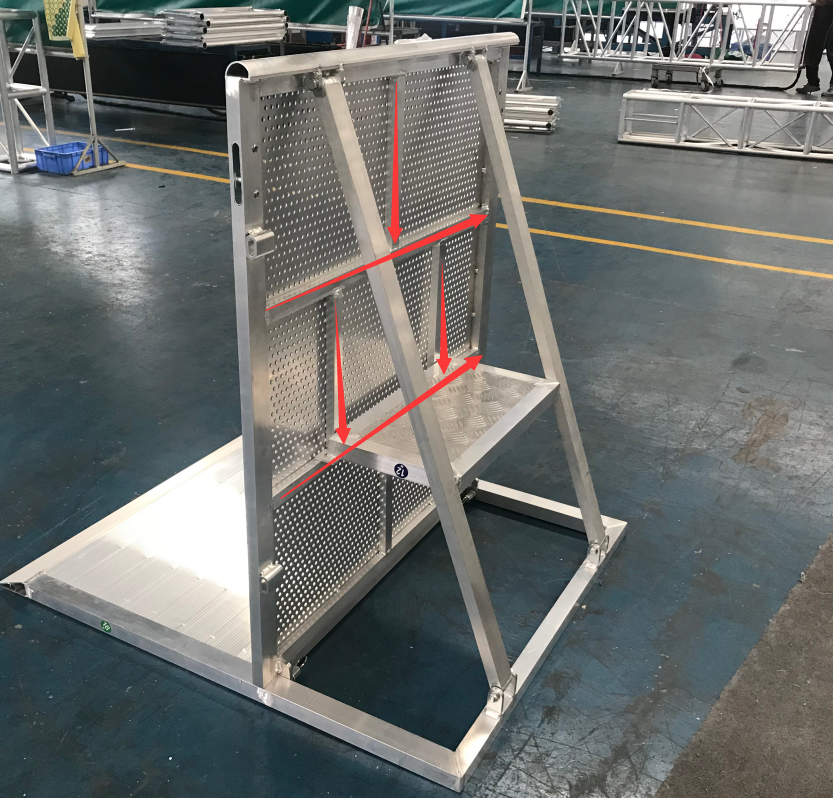

Special frame structure: More Stronger and durable

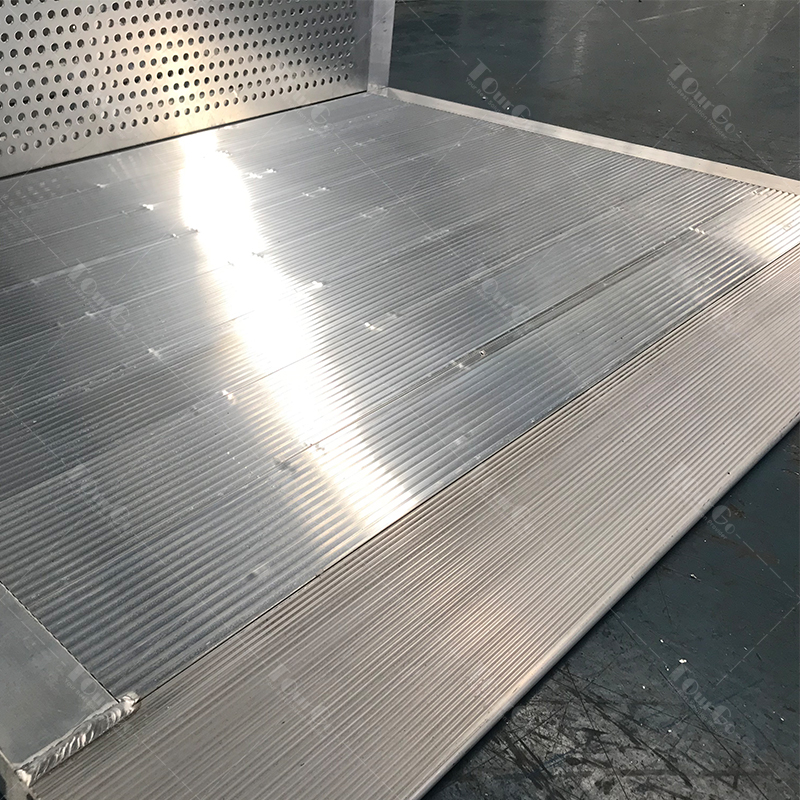

Have ramp,Base have strip to avoid skid

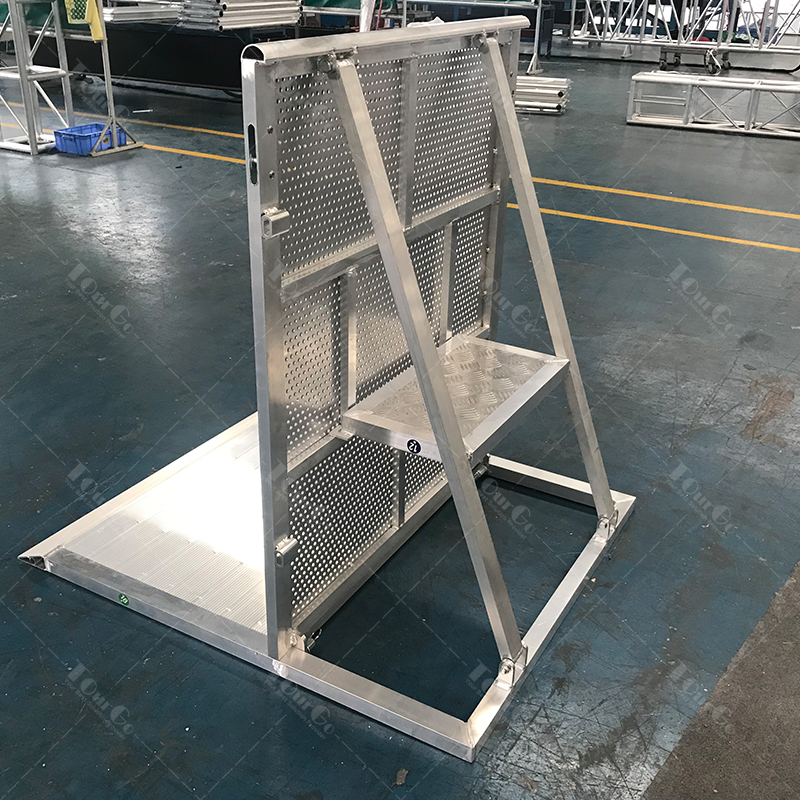

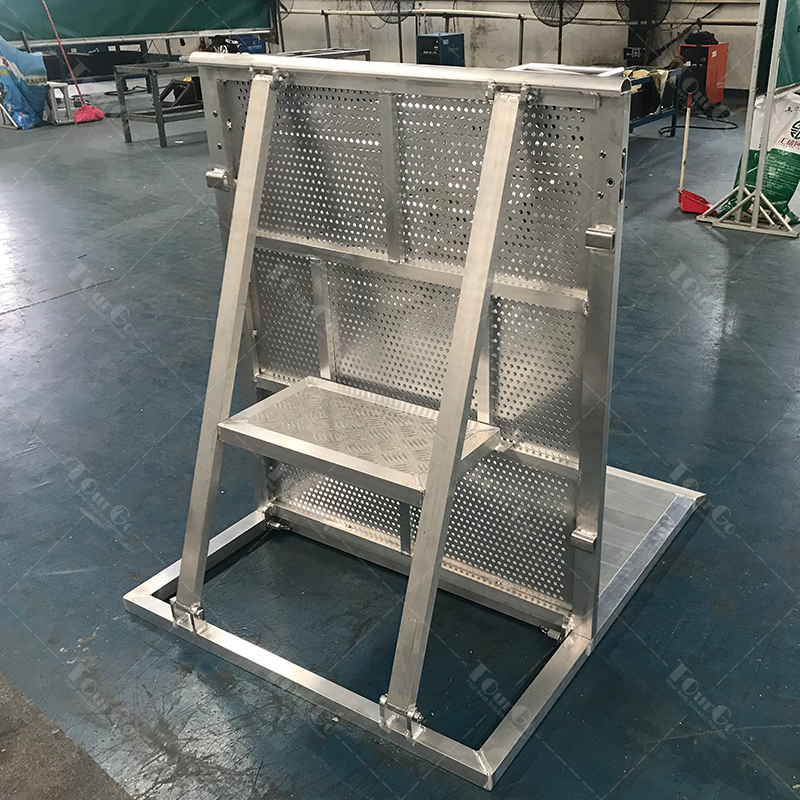

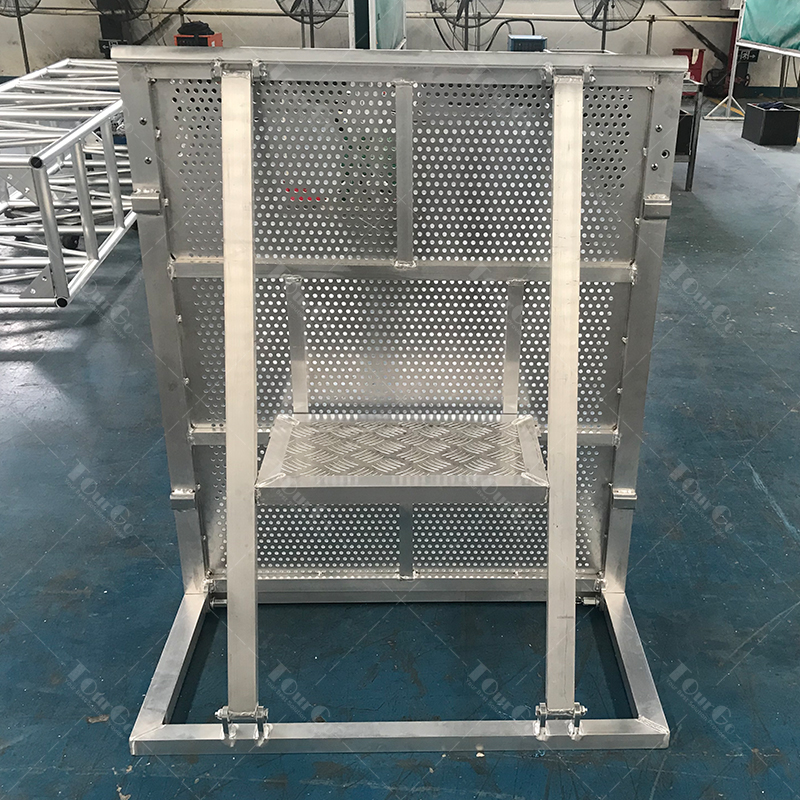

Product Display:
…
…
…
