Product Show：
U Torm
U Top:
Base Plate with casters:

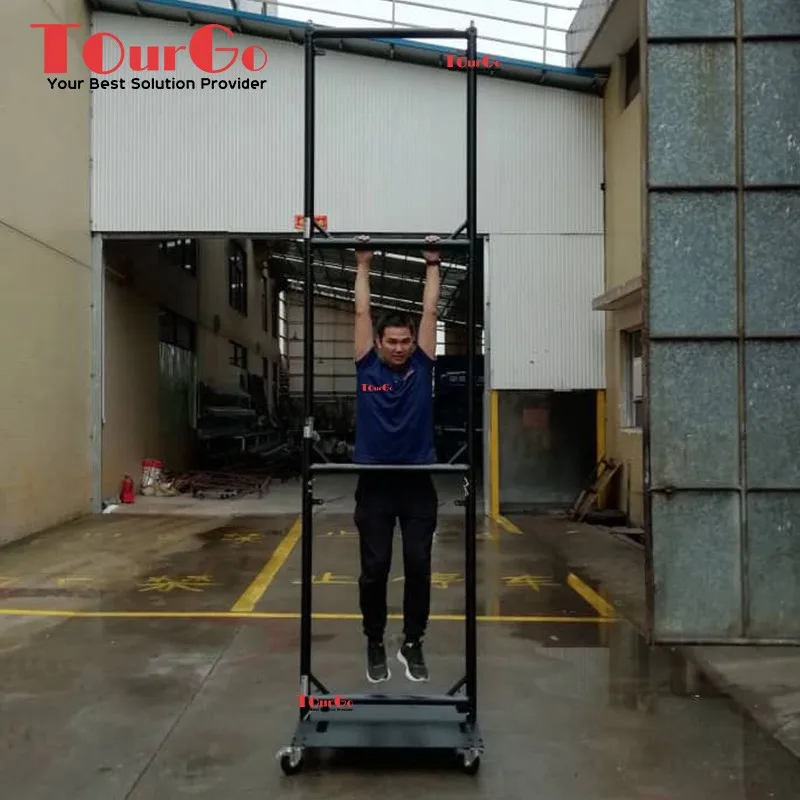

Strong Load Capacity:

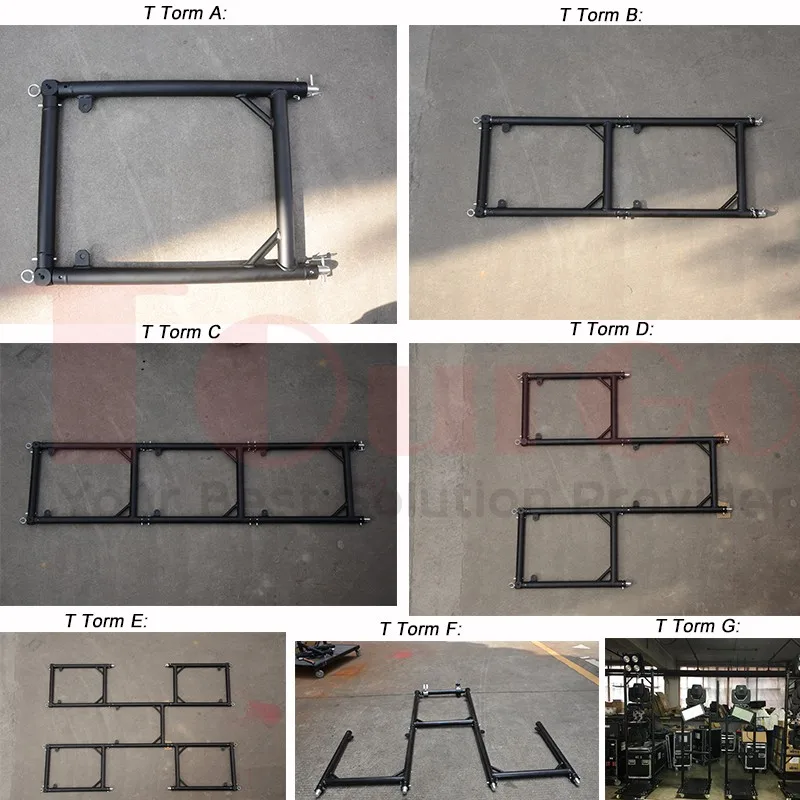

U Frame Truss: different shape
Product Description
The Cosmic Truss U-Torm is a flexible solution to hanging drop positions for lighting fixtures. As well as projection or other equipment in a completely modular design.

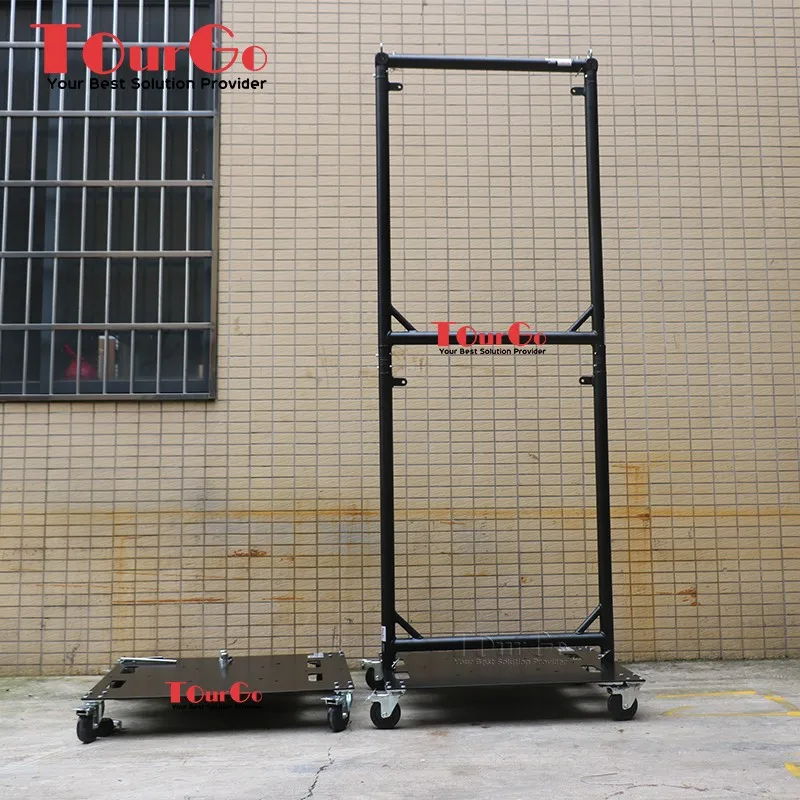

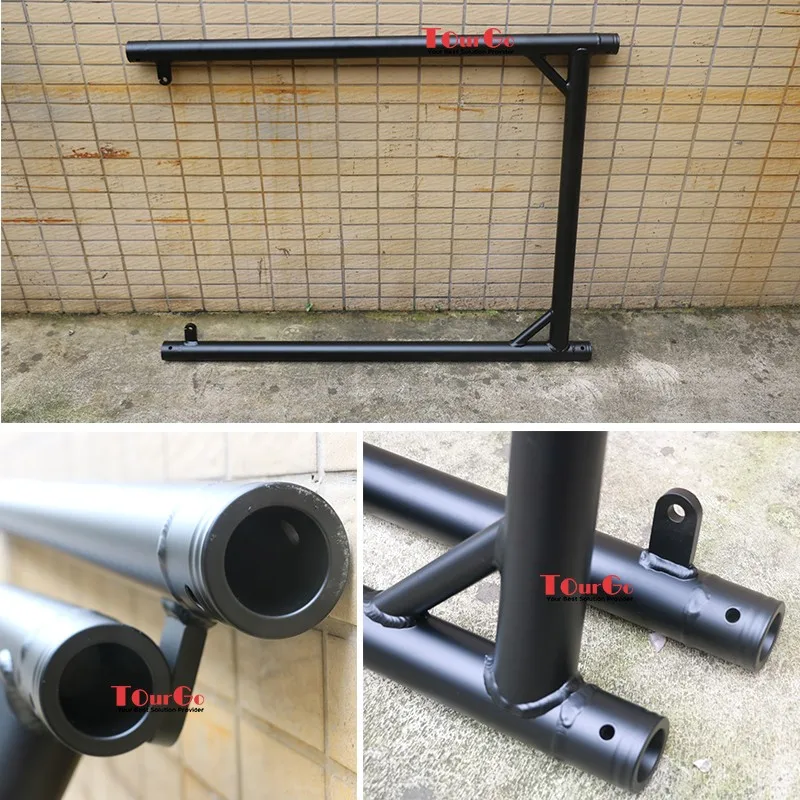

U-Torm:
|
Outer Dimension
|
33.94″ x 2″ x 46.3″ (862 mm x 50mm x 1176 mm)
|
||
|
Inner Dimension
|
30″ x 2″ x 40″ (762 mm x 50 mm x 1016 mm)
|
||
|
Weight
|
4.62 lbs. (2.1 kg)
|
||
|
Center point loading
|
220 lbs. (100 kg)
|
||
|
Material
|
6082-T6 aluminum alloy
|
||
|
Accessories :
|
Conical connecting element with pin and safety clip (2 included)
|
||
U-Top:
|
Dimensions with eyebolt
|
33.94″ x 2″ x 4.3″ (862mm x 50mm x 110mm)
|
|
Weight
|
3.3 lbs. (1.5 kg)
|
|
Center point loading
|
220 lbs. (100 kg)
|
|
Accessories :
|
Conical connecting element with pin and safety clip (2 half conicals included)
|

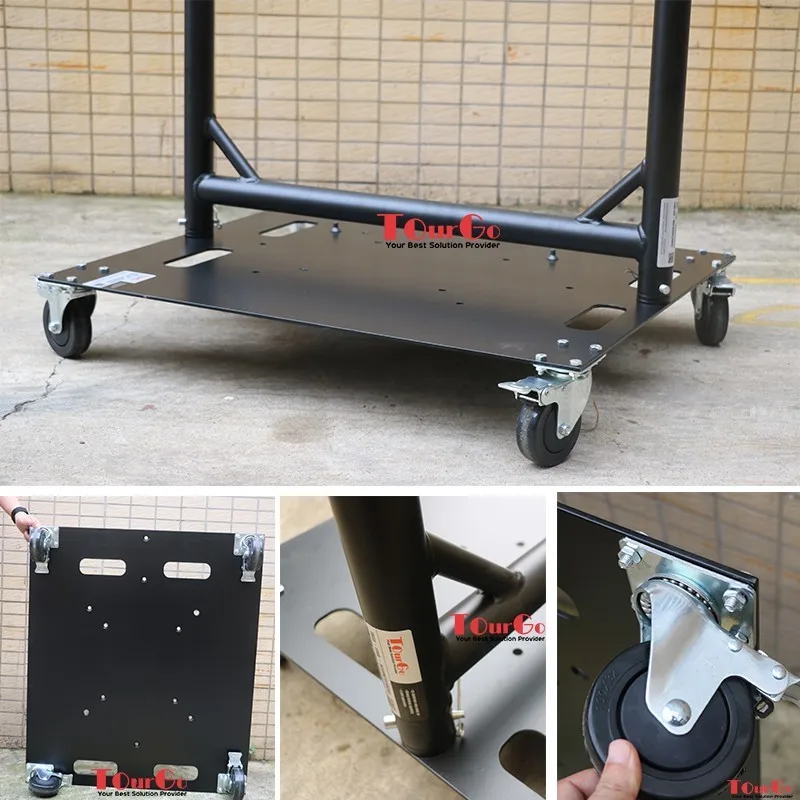

Base Plate with Casters:
|
Dimension
|
33.94″x29.53″(862x750x8mm)
|
|
Weight
|
60lbs(27kg)
|
