Layer Truss:
Layer Truss Features:
1) Easy to assemble:

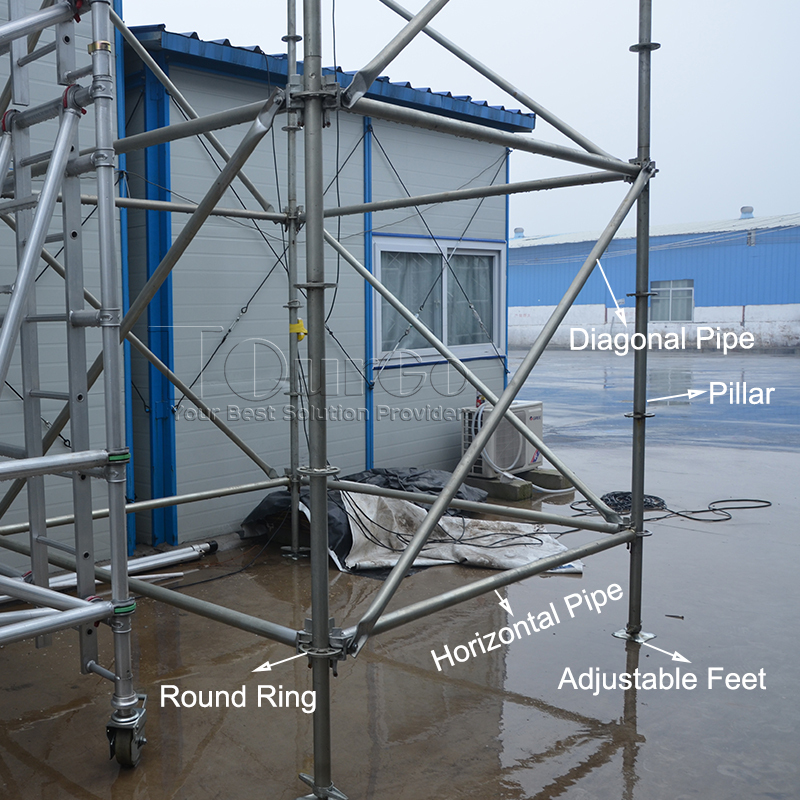

Layer truss consist of Pillar, Horizontal Pipe, Diagonal Pipe, Adjustable Base, Joint pipe. Its construction is simple and stable.

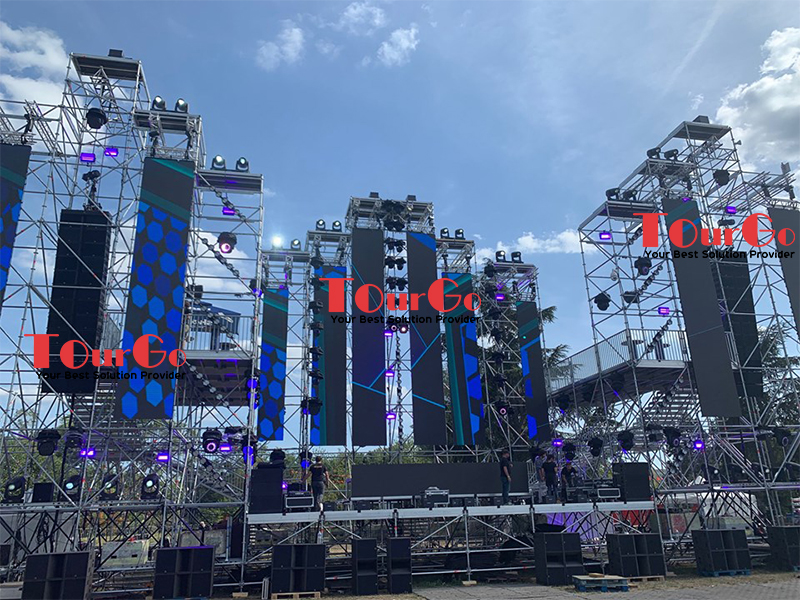

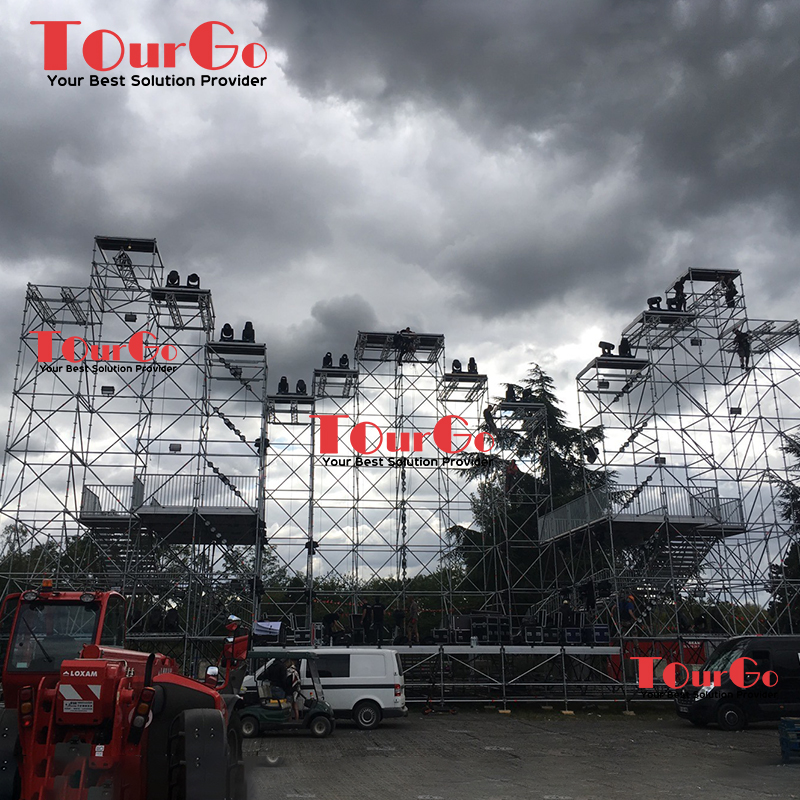

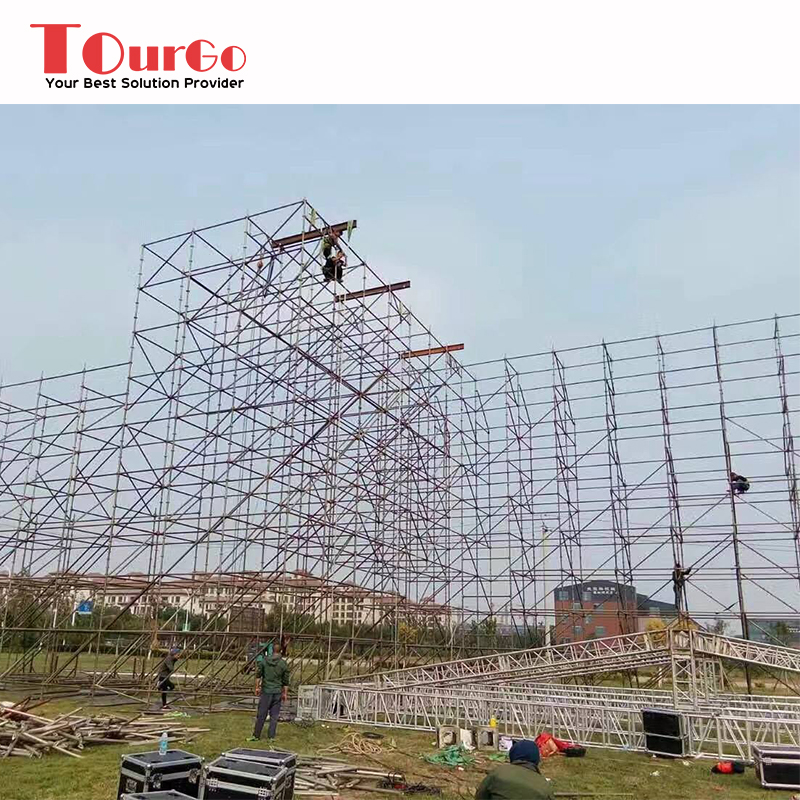

2) wide range of applications:Layer truss is mainly used for lifting the Line Array Speaker.lifting LED screen, Advertisement Picture. Widely used in different outdoor shows and events.
Specification:
|
Item Name
|
Layer Truss
|
|
Material
|
Q235
|
|
Surface Treatment
|
Hot zinc galvanization
|
|
Pillar Pipe
|
48*3mm
|
|
2m
|
|
|
10.47kg
|
|
|
Diagonal Pipe
|
48*2.5mm
|
|
2.3m
|
|
|
7.6kg
|
|
|
Horizontal Pipe
|
48*2.5mm
|
|
Adjustable Foot
|
2.5kg
|
|
Cross Section
|
2*2m
|
|
Height
|
2-38m
|
|
Advantage
|
Heavy loading capacity and stable,
|
|
Demountable,easy to assemble and transport
|
|
|
Self-locking, non-rust
|
|
|
Application
|
Hanging line array speaker and led screen
|
|
Outdoor shows and events
|
|
|
Packing
|
standard package or customized
|
|
Delivery Time
|
5-7 working days after 30% payment
|
Details:

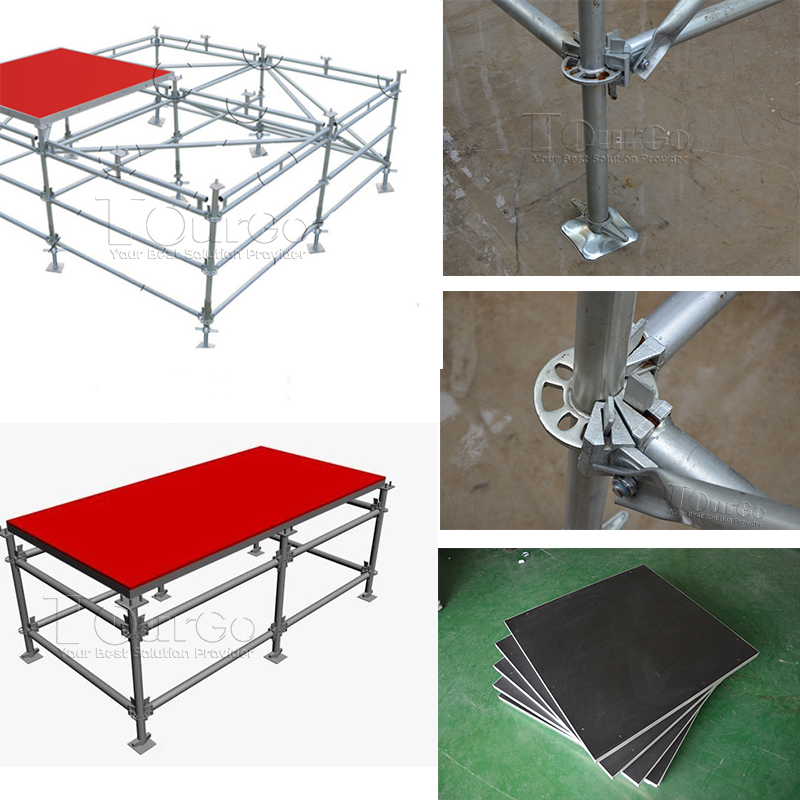

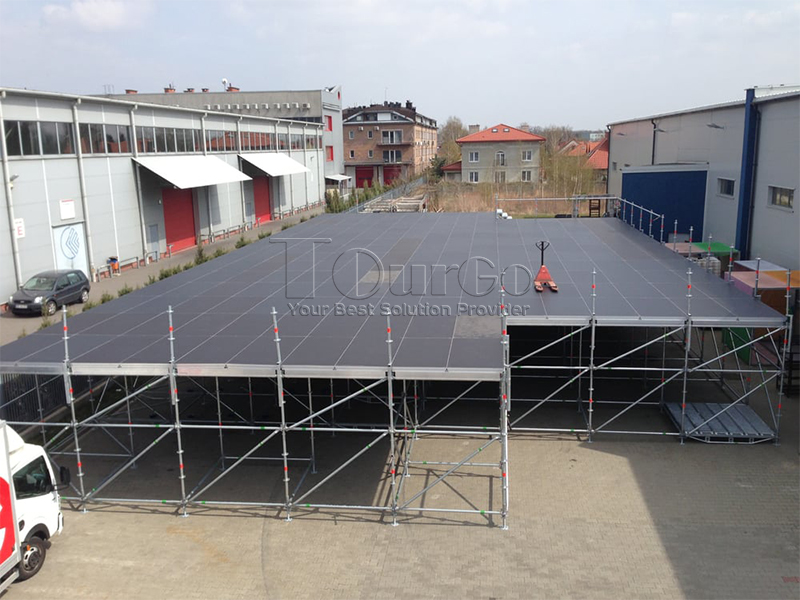

Layer Stage
Specification:
|
Name
|
steel layer stage
|
|
Size
|
1.22*1.22m 4*4feet ,1.22*2.44m 4*8feet,2*1m,1*1m
|
|
horizonal tube
|
48*1.5mm
|
|
Material
|
steel
|
|
Height
|
0.4-0.6m, 0.6-1m, 0.8-1.2m, 1-1.5m, 1.5-2m
|
|
pillar tube
|
48*2.5mm
|
|
diagonal tube
|
42*2mm
|
|
Platform
|
glass/ plexiglass/ plywood
|
|
Loading capacity
|
750kgs/m2
|
|
Feature
|
strong,easy to assemble and dismantle. Adjustable height
|
|
Application
|
for dancing on following occassions:school stage, event stage, performance stage, celebration stage,concert stage,wedding stage
|
Application:
Post time: Feb-25-2022
