Product Show:
..

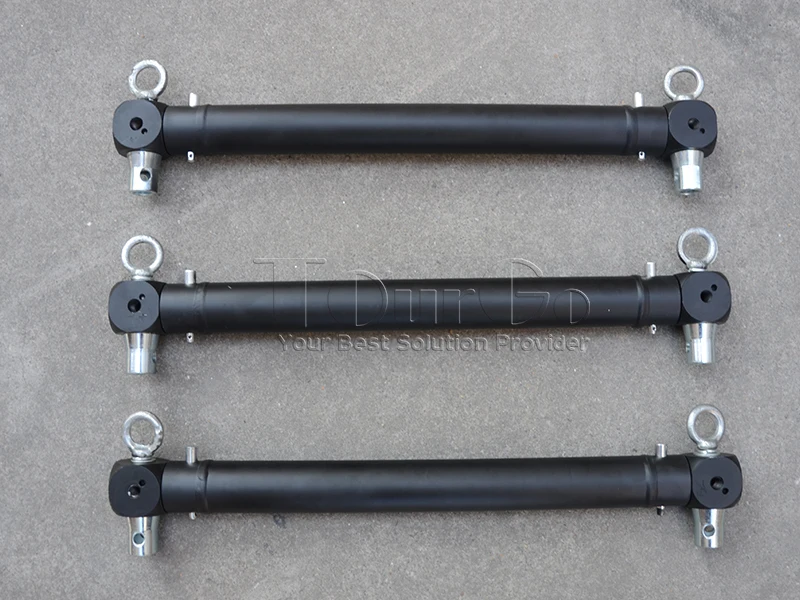

U Top:

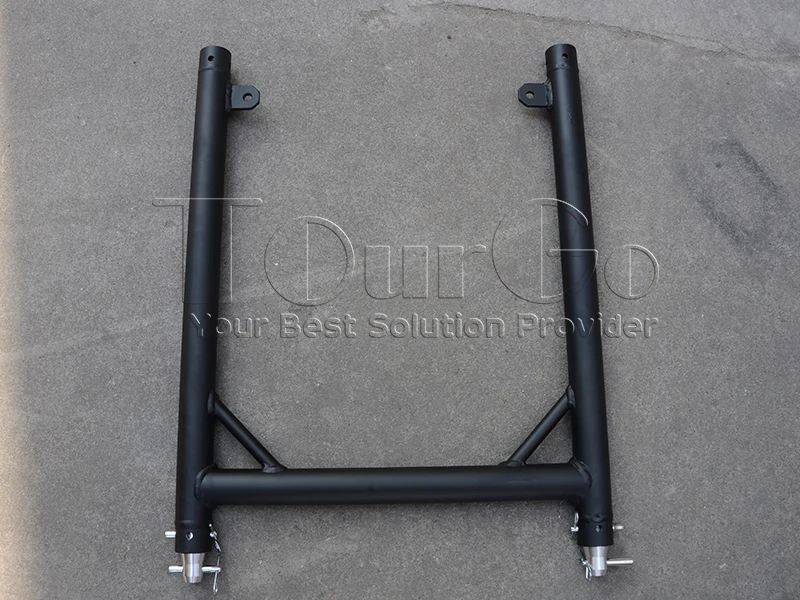

U Torm:

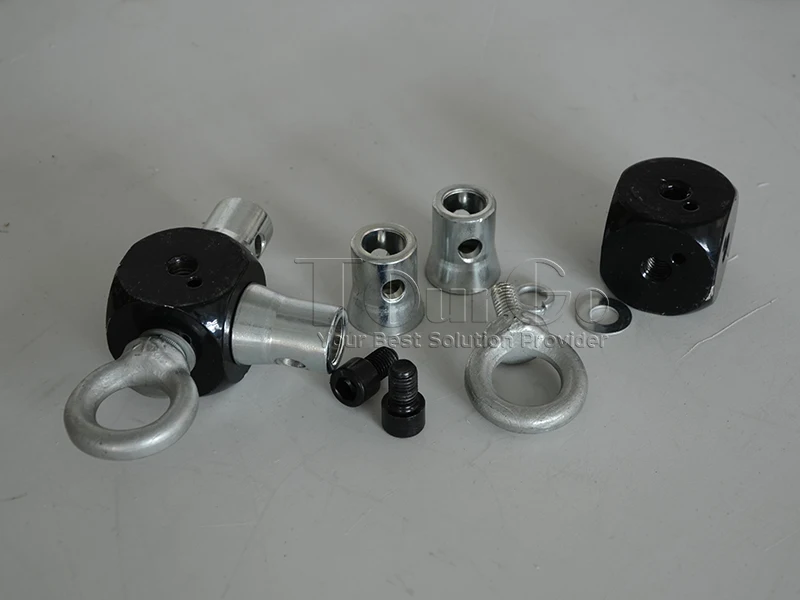

Accessories:
Base Plate with Wheels:
How to Connect:

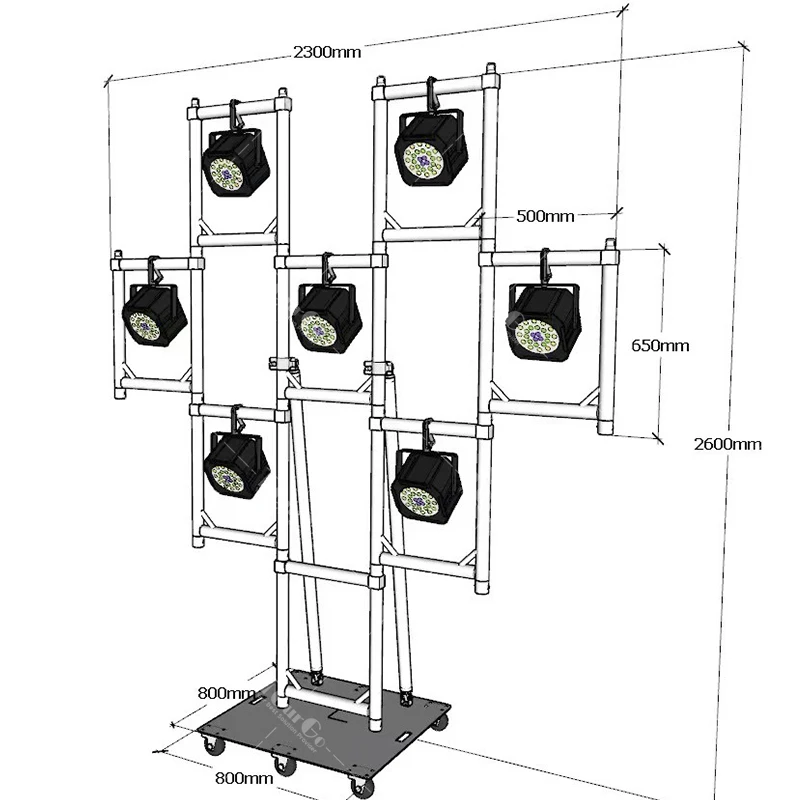

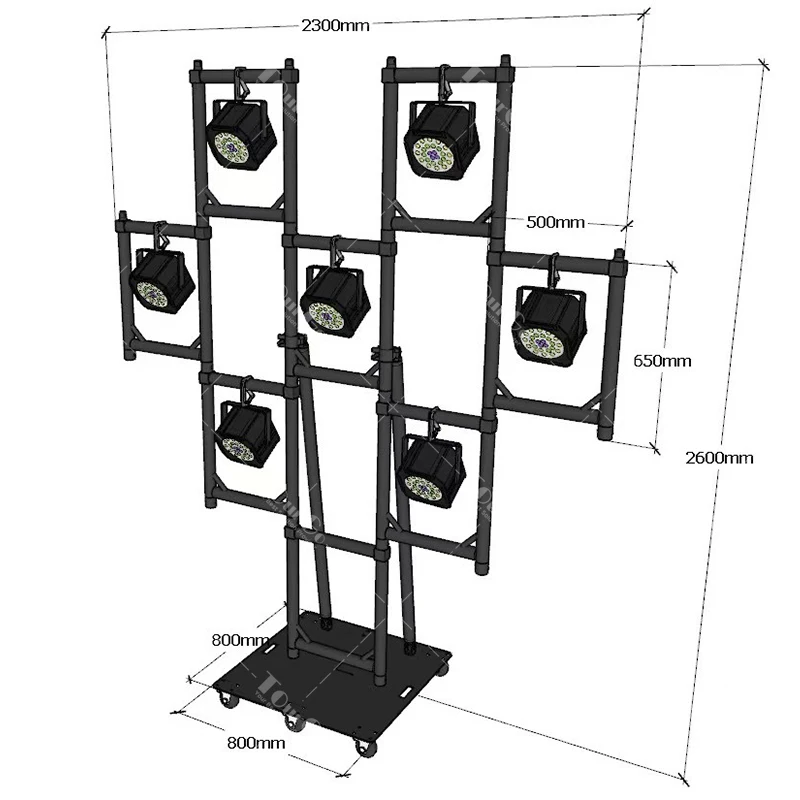

DIY Shape:
..
..
Specification：
Aluminum U Frame Cosmic U Torm Truss DT Quick Grid Truss System for Moving Head Lights
The Cosmic Truss U-Torm is a flexible solution to hanging drop positions for lighting fixtures. As well as projection or other equipment in a completely modular design.
U-Torm:
|
Outer Dimension
|
23.6″ x 2″ x 29.9″ (60 cm x 5 cm x 76 cm)
|
||
|
Inner Dimension
|
19.7″ x 2″ x 25.6″ (50 cm x 5 cm x 65 cm)
|
||
|
Weight
|
8.1 lbs. (3.7 kg)
|
||
|
Center point loading
|
110 lbs. (50 kg)
|
||
|
Material
|
6082-T6 aluminum alloy
|
||
|
Accessories :
|
Conical connecting element with pin and safety clip (2 included)
|
||
U-Top:
|
Dimensions with eyebolt
|
23.6″ x 2″ x 4.3″ (60 cm x 5 cm x 11 cm)
|
|
Weight
|
4 lbs. (2 kg)
|
|
Center point loading
|
110 lbs. (50 kg)
|
|
Accessories :
|
Conical connecting element with pin and safety clip (2 half conicals included)
|
