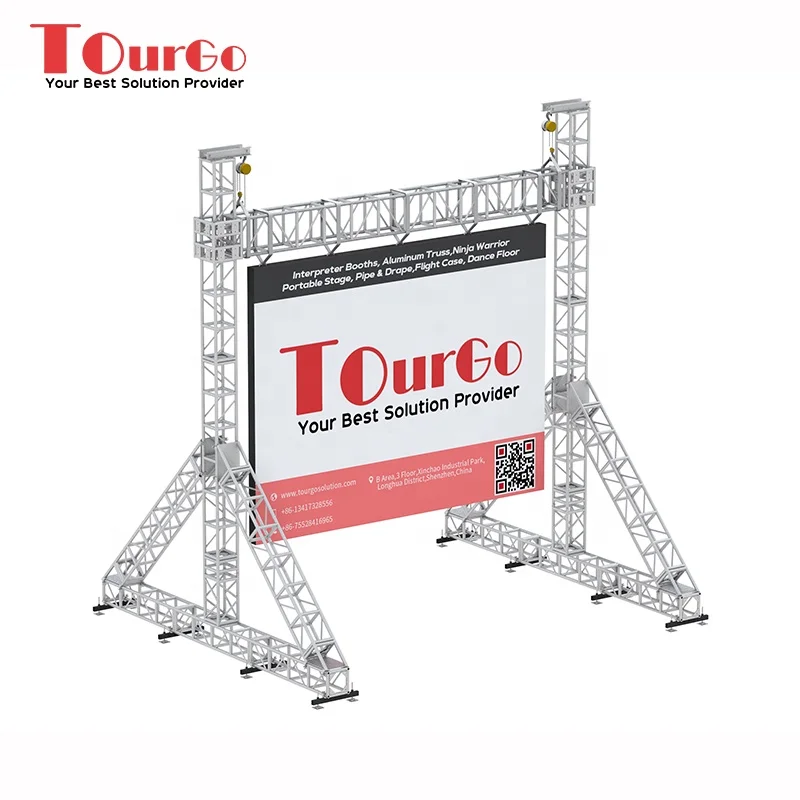

Tourgo LED Screen Solution:
Tourgo designs and manufactures a wide range of freestanding aluminum structures to lift and hang your
LED/Video screen, for both indoor and outdoor use.

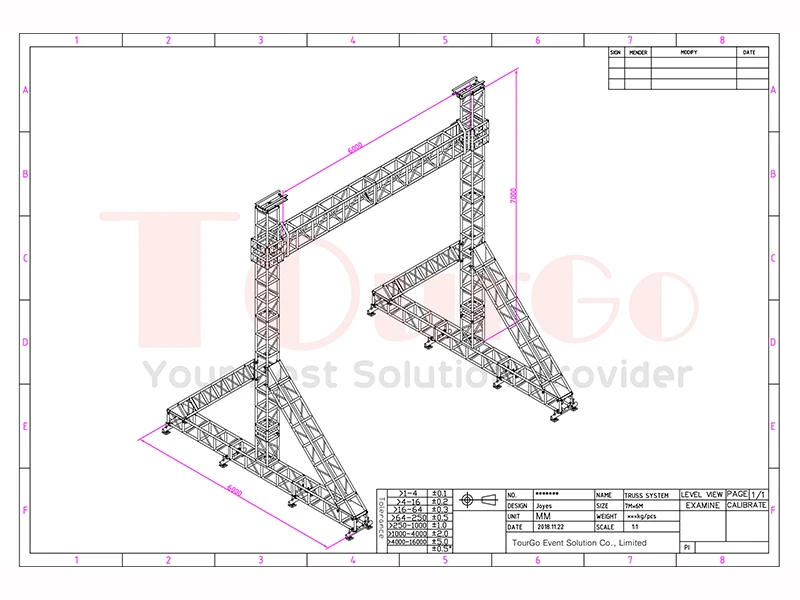

Design Drawing:
Specification:
| Material | Aluminum 6082-T6 |
| Truss Type | Bolt Truss |
| Span | 6m |
| Height | 7m |
| Load Capacity | 2500kg( depends on the truss size) |
| Application | Hanging LED screen, speaker, audio and lights |
Truss Project:
。。。

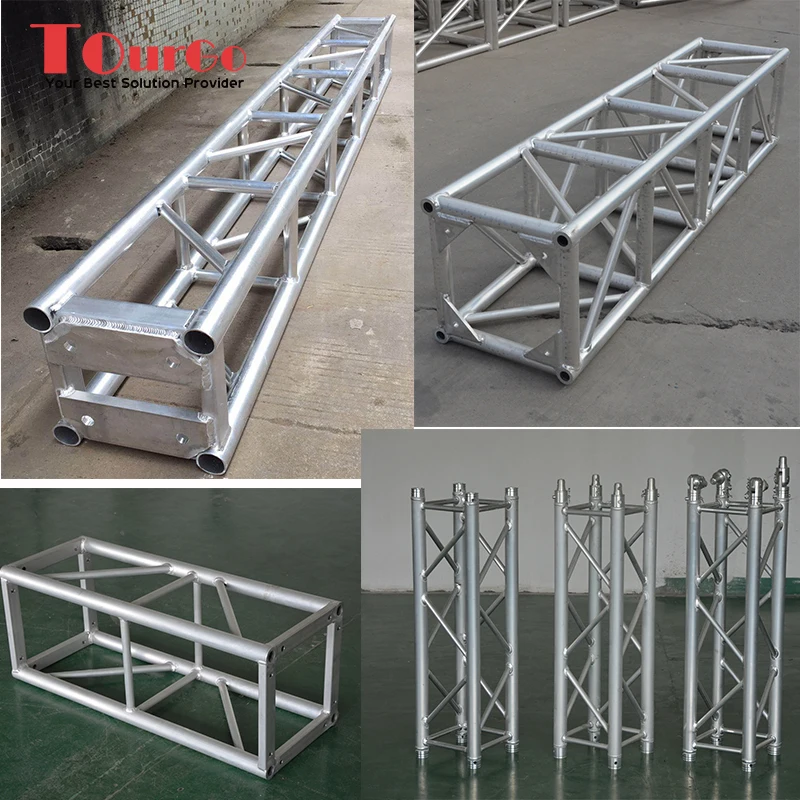

Aluminum Truss:
LED screen Support structures made up of heavy-duty truss systems available in square truss: 300 x 300 mm, 400x400mm, 400*600mm…to meet your different load capacity
Related Truss: Thomas Truss, Screw Truss and Spigot Truss.
Truss Details: made of aluminum 6082-T6, main tube:50*3mm, brace tube: 25*2mm
Advanced welding technology and full welding spot, make truss more stronger and durable with long life time
LED Ground Support Truss Accessories:
Our heavy duty aluminum truss combined with our modular GROUND SUPPORT towers and a comprehensive range of box corners, base plates, angles and other accessories enables us to construct your specific LED support structure. All support systems consist of our standard towers and truss range to offer the possibility to use these components for other applications.
Please contact our technical department to discuss your specific needs (screen weight, height and width) and we will design the best solution for your LED / Video screen.

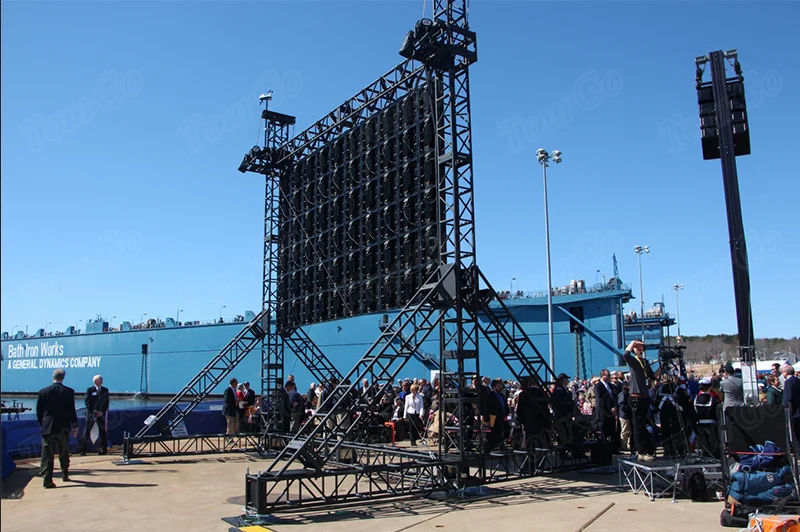

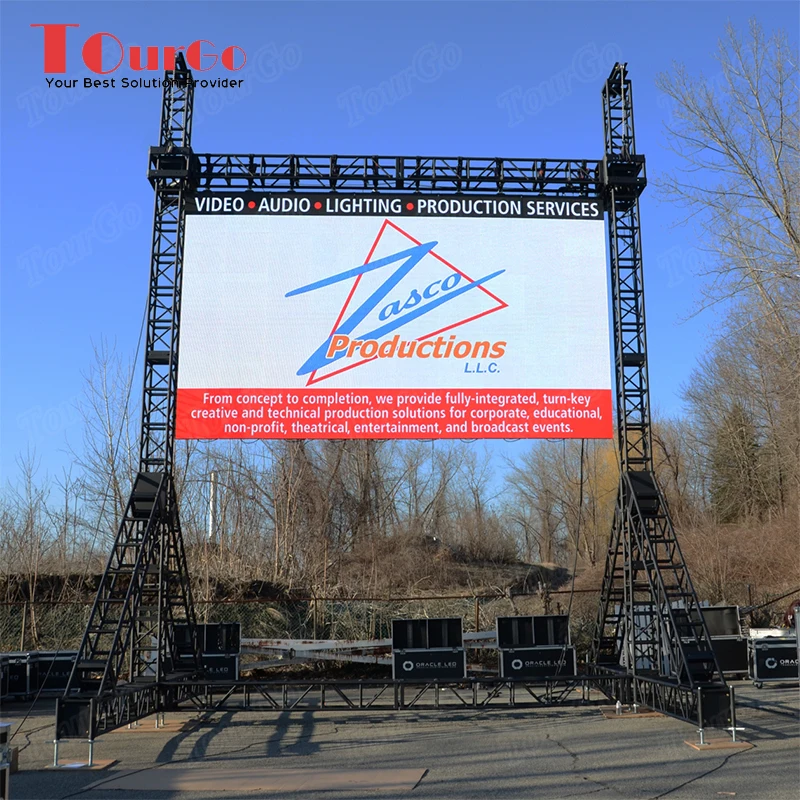

LED Truss we did before:
