We are professional truss manufacturer ,which specialized in aluminum truss and stage for 12 years,our aluminum trusses are 100% Compatible with Tomcat truss, have TUV Certificate. we advocate High Quality, Pro-Design, Best Service !
|
Materials :
|
Aluminum 6082-T6
|
||
|
Specification
|
for 12×12 inch Truss
|
||
|
Shape
|
Square Truss/Box Truss
|
||
|
Size:
|
0.5m/1m/1.5m/2m/2.5m/3m/3.5m/4m,any other sizes also can be customized
|
||
|
Colors:
|
Sliver ,Black ,Pink …
|
||
|
Accessories :
|
Related accessories such as corner ,baseboard … will be provied according to your sizes and design
|
||
Features:
* 12″ H x 12” W Professional Box Truss W/Bolt Connection.
* Industry Standard Bolt Pattern 6 3/4″ x 6 3/4″ with 5/8″ Holes
* Load Tested & Inspected During Manufacturing and Quality Control
* Includes one set of Four 5/8″ – 11 x 2.5″ (NC) attachment bolts, nuts, flat & lock washers.
* Compatible with most other 12″ Professional Box Truss Manufacturers
* Outer Tube Diameter of 2″, Wall Thickness 3mm (1/8″), Diagonal 1”, Wall of 3mm (1/8″),
* Welded to TÜV standards, 6082-T6 Alloy by GSI SLV-certified welders
* 12″ H x 12” W Professional Box Truss W/Bolt Connection.
* Industry Standard Bolt Pattern 6 3/4″ x 6 3/4″ with 5/8″ Holes
* Load Tested & Inspected During Manufacturing and Quality Control
* Includes one set of Four 5/8″ – 11 x 2.5″ (NC) attachment bolts, nuts, flat & lock washers.
* Compatible with most other 12″ Professional Box Truss Manufacturers
* Outer Tube Diameter of 2″, Wall Thickness 3mm (1/8″), Diagonal 1”, Wall of 3mm (1/8″),
* Welded to TÜV standards, 6082-T6 Alloy by GSI SLV-certified welders
Truss Display:
..

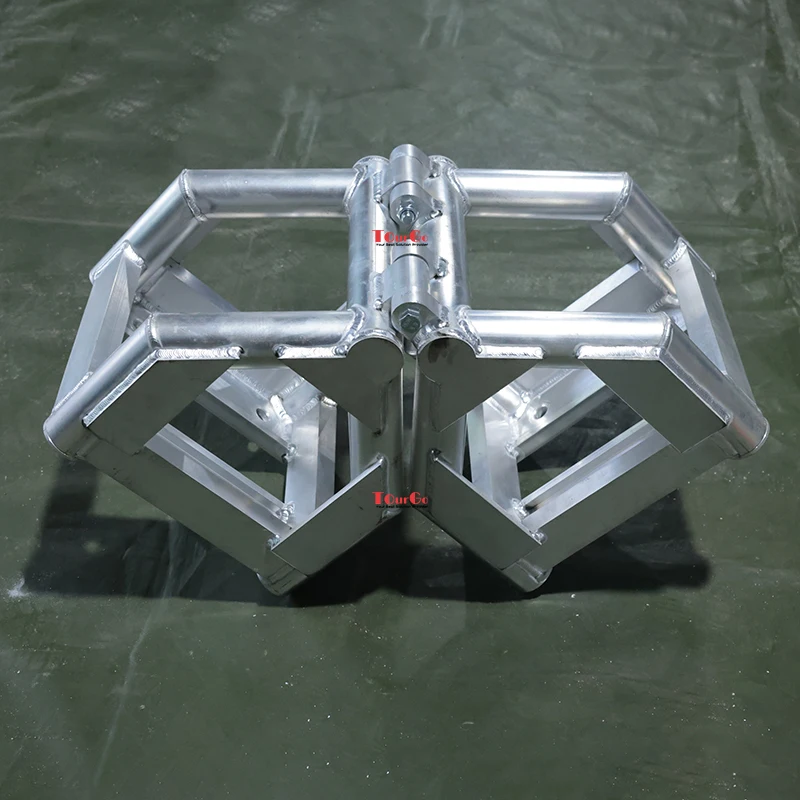

Variable Angle Corner:
..
..
..
Aluminum Truss:
..
..
..
..
..
..
Black Color:
..
..
..
