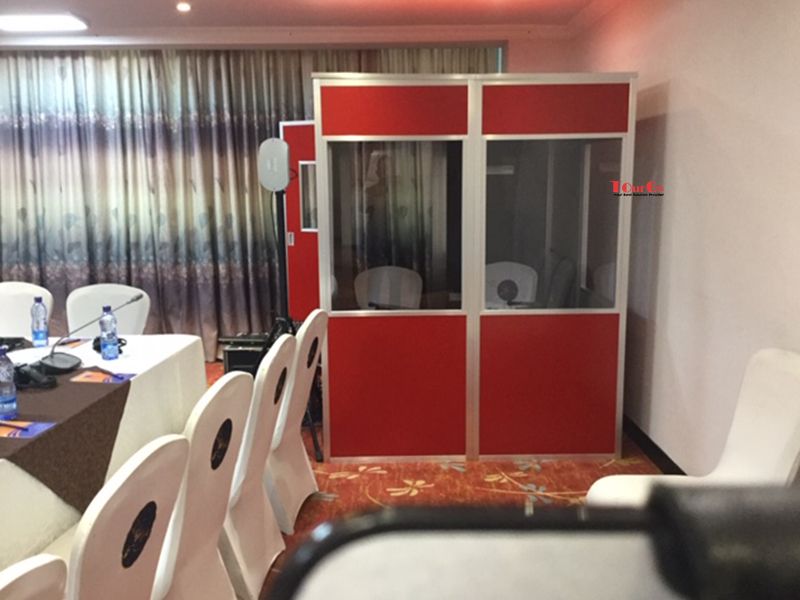

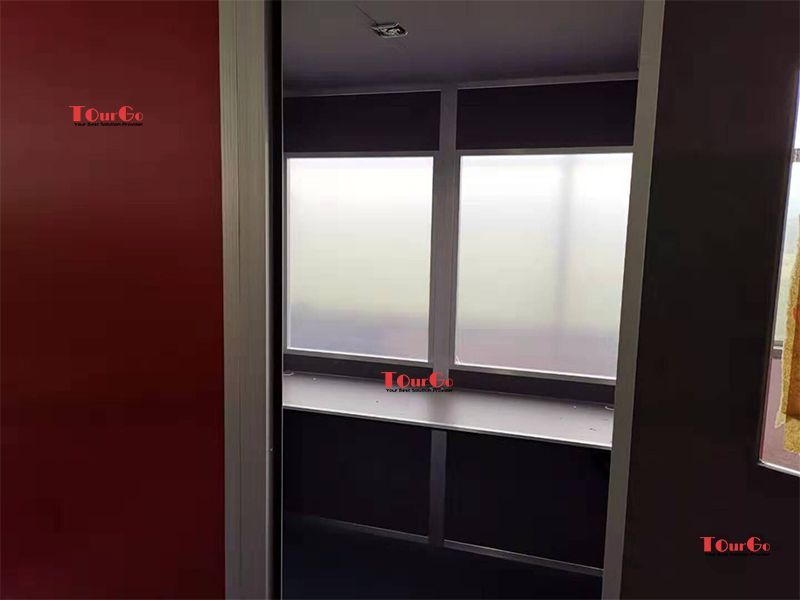

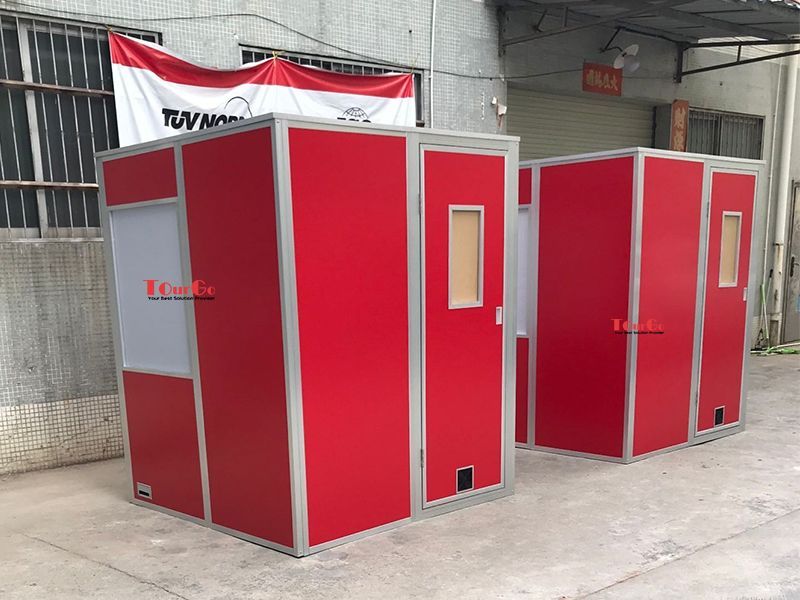

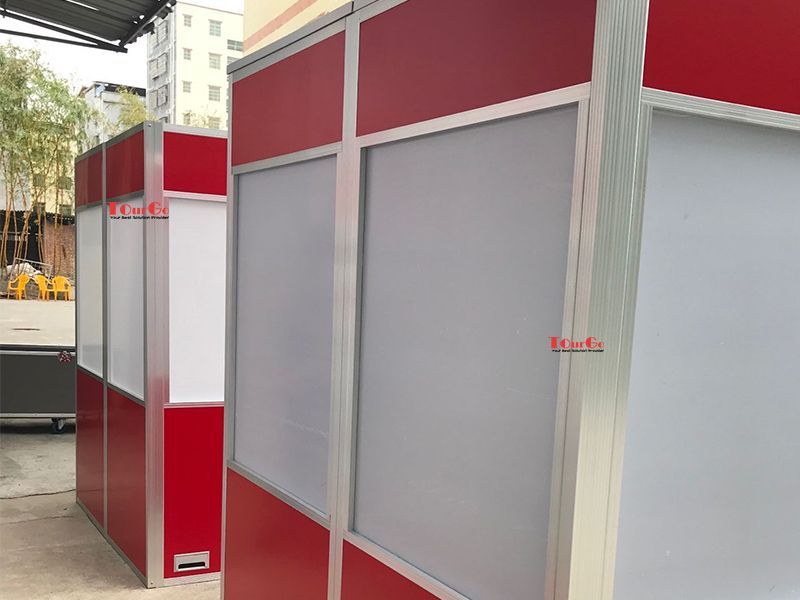

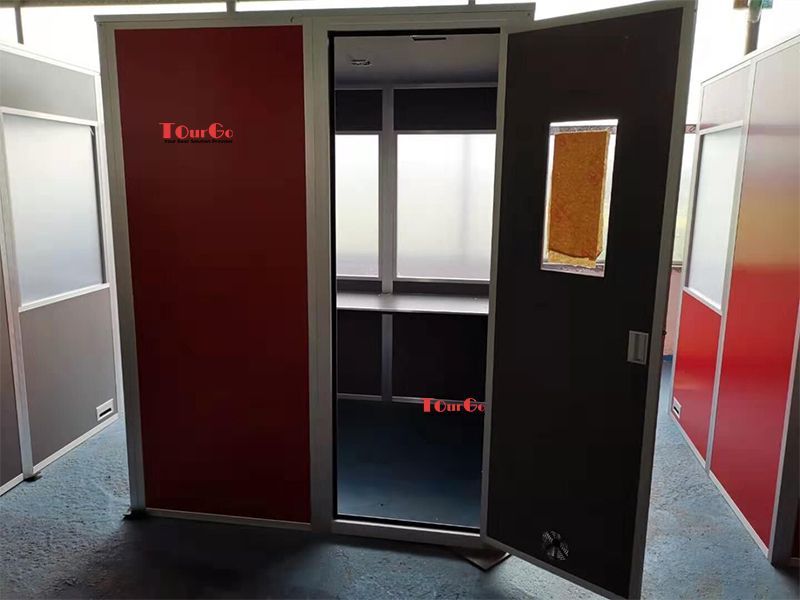

Two person red mobile soundproof simultaneous interpretation booth
The light weight interpreter booths TG-2LBOOTHS is a light weight, modular, easy to mount interpreter booth for 2 persons, and can be extended for up to 4 persons, using the optional extension sets. 1 or 2 persons can easily build the booth without any tools. The TG-2LBOOTHS complies with the ISO 4043 2016 norm, this is our new design booth, the outside material of the booth is aluminum composite panels, and match a small window on the door.
|
Ref.
|
TG-2LBOOTHS
|
|||
|
External Dimension in mm
|
W 1670 x D 1670 x H 2150 incl, ventilation fans
|
|||
|
Internal Dimension in mm
|
W 1600 x D 1600 x H 2000
|
|||
|
Panel Thickness in mm
|
35
|
|||
|
Weight
|
244.5 kg (incl. ventilation system and table Dark)
|
|||
|
Colour
|
white (Other colours available on request)
|
|||
|
Sound insulation capacity
|
Comply with ISO 4043:2016
|
|||
|
Table Dimensions in mm
|
1600 x 500
|
|||
|
Side Window Dimension in mm
|
680 x 860
|
|||
|
Ventilation
|
included
|
|||
|
Power Supply
|
110~130V/220~240V – 50~60Hz 10A
|
|||
|
Be Optional
|
LED lights on the roof
|
|||
Post time: Oct-19-2021
