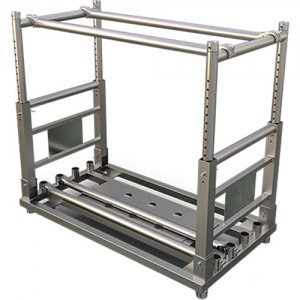

Compact and Lightweight CHAUVET PROFESSIONAL CP Rack

Product Model : TG-CPCPR

Product Features :

Product Detail

Specifications

FAQ

Product Tags

CP RACK

Designed Durable Professional truck pack fixtures CP Rack Compact and Lightweight adjustable Rack to transport Hold Lights

Key Features
Holds Gear Weighing up to 1000 lb
Can Be Stacked Two High
4′ High: Fits in Elevators, Halls, Etc.
Can Be Configured to Your Requirements

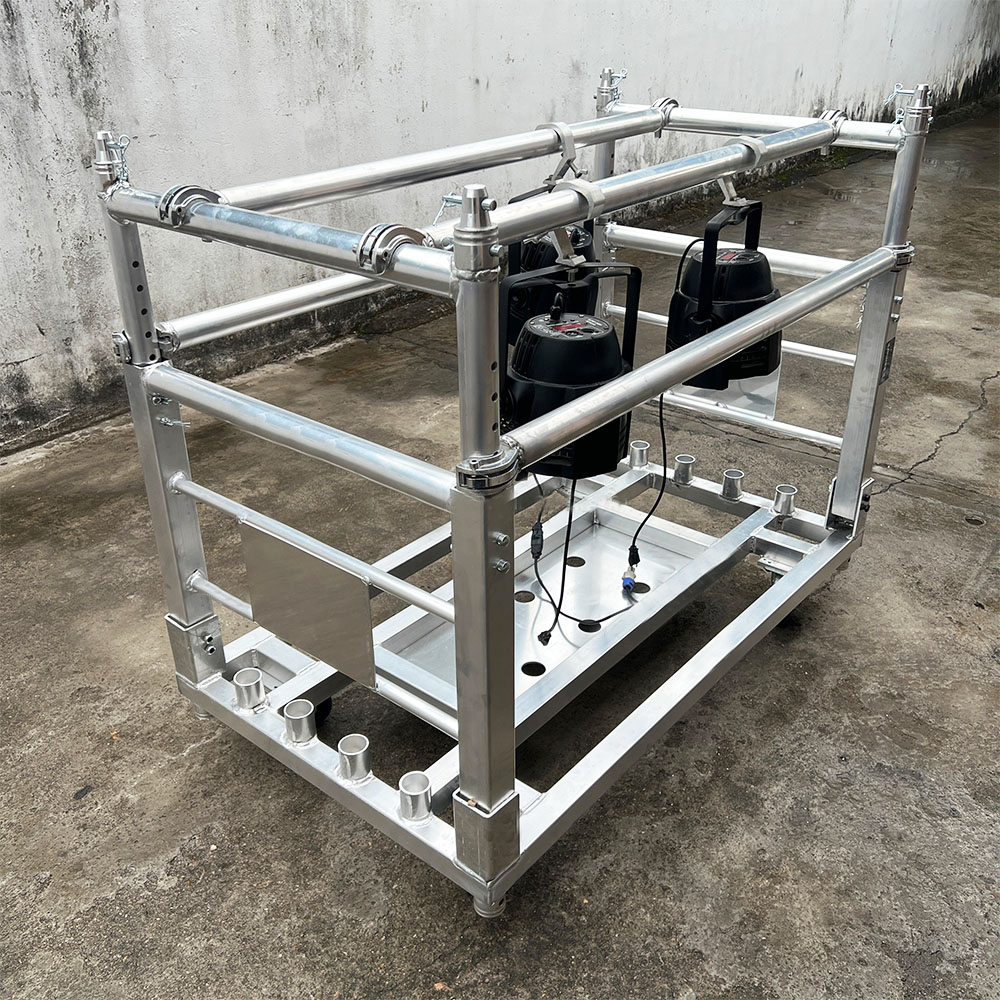

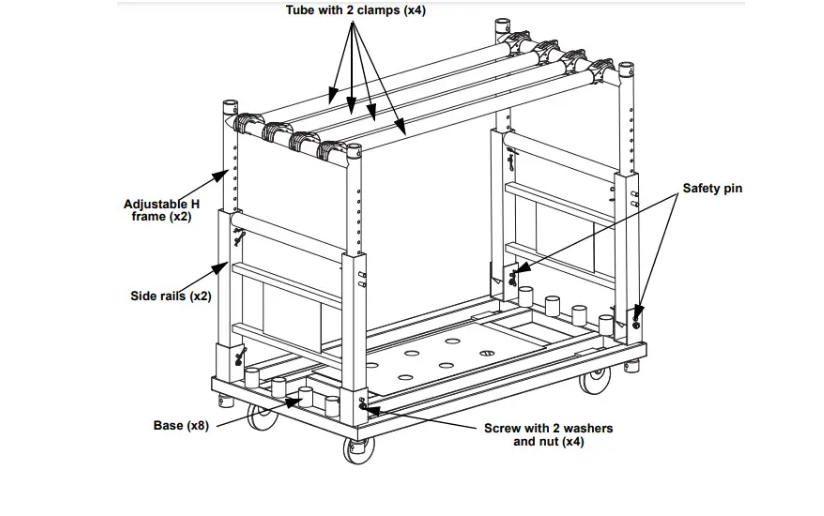

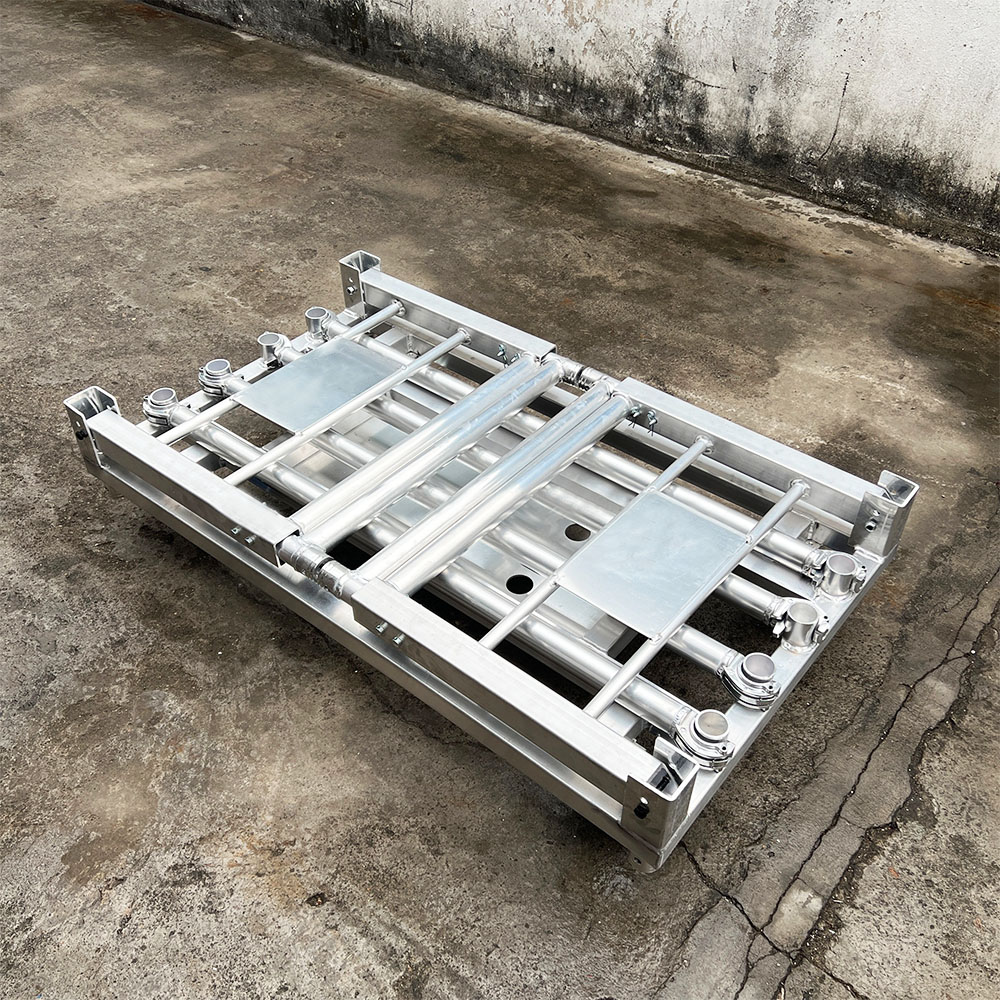

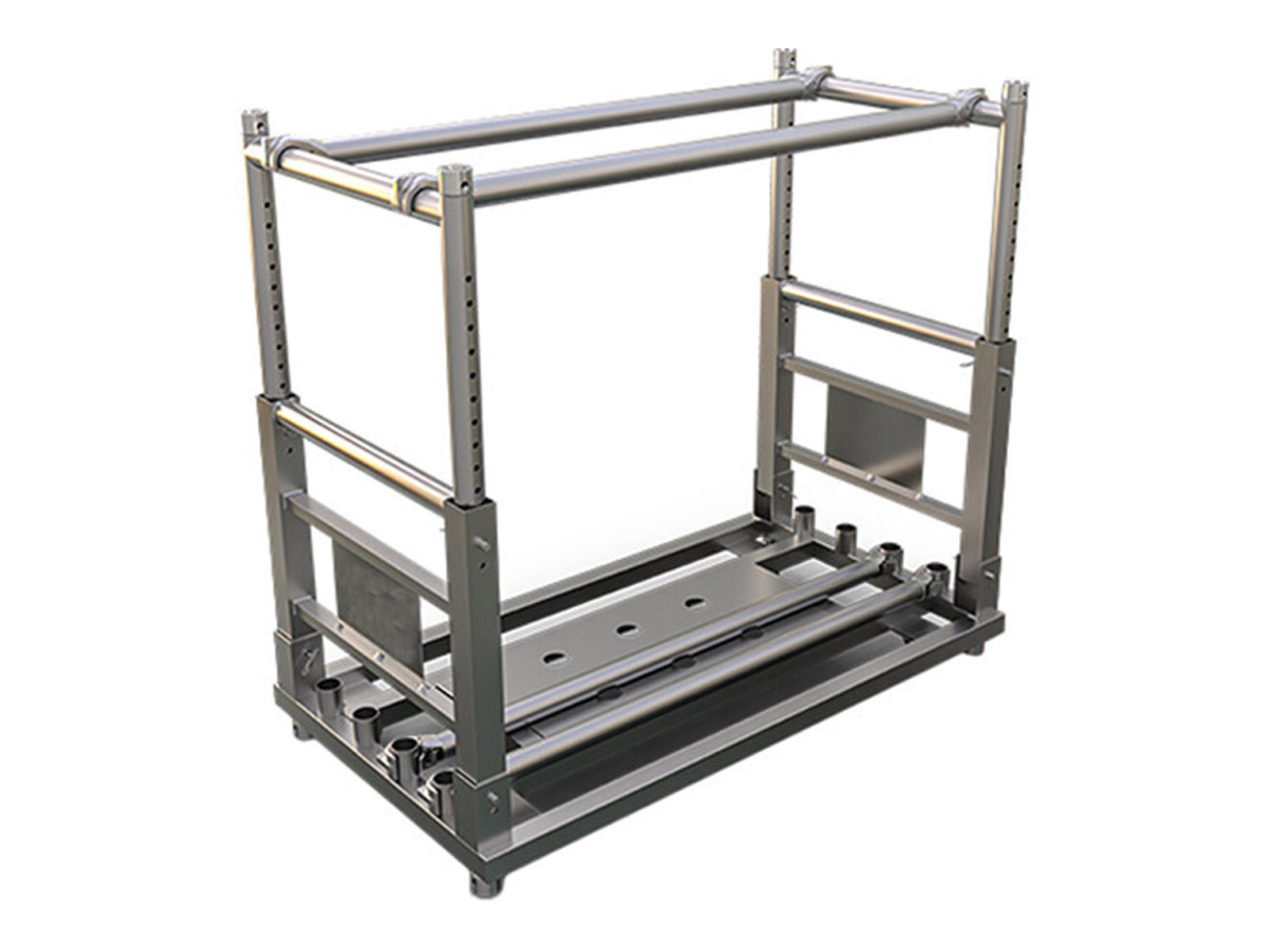

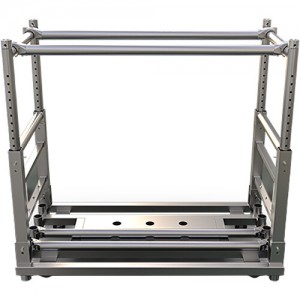

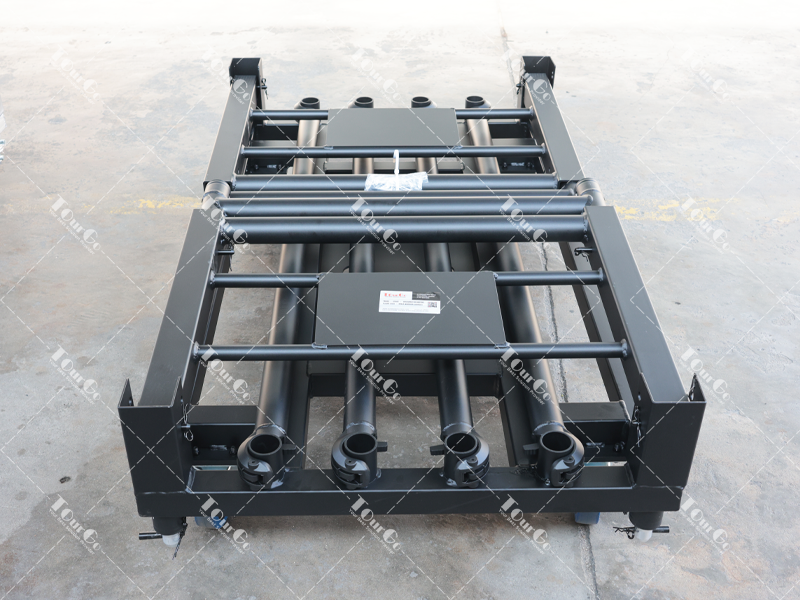

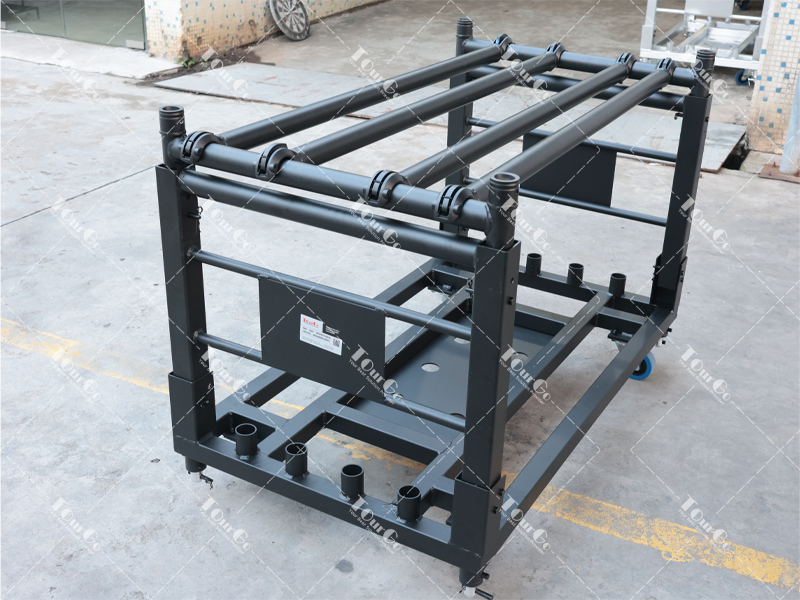

The CHAUVET PROFESSIONAL CP Rack is designed to hold up to 1000 lb of lighting fixtures with the ability to raise and lower its overall height and fold down when not in use for easy storage. The CP Rack can be stacked two high, allowing for better space utilization when transporting.

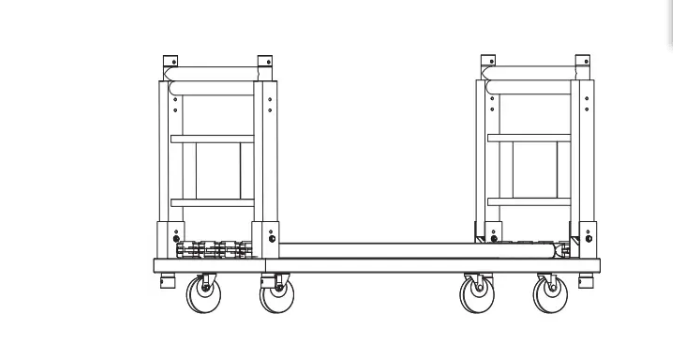

To begin setup

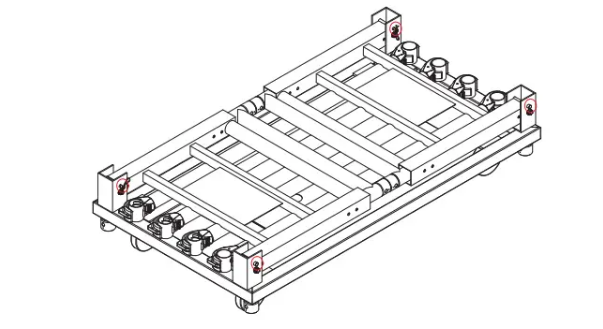

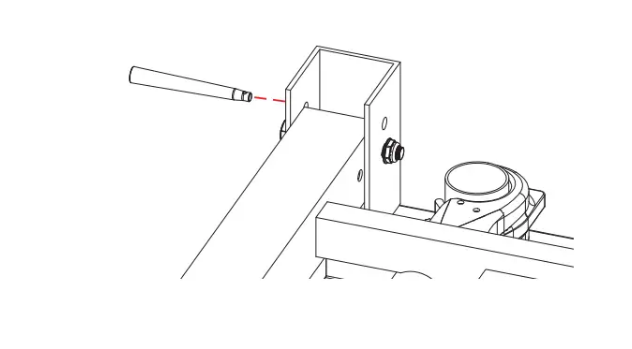

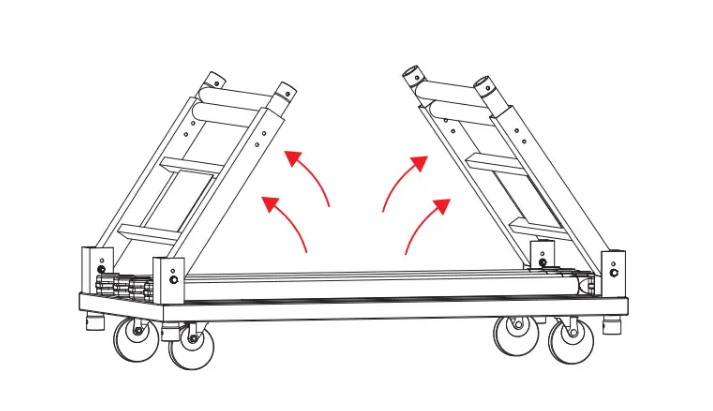

Raise each side rail of the CP Rack by removing the pins at the base of each side rail.

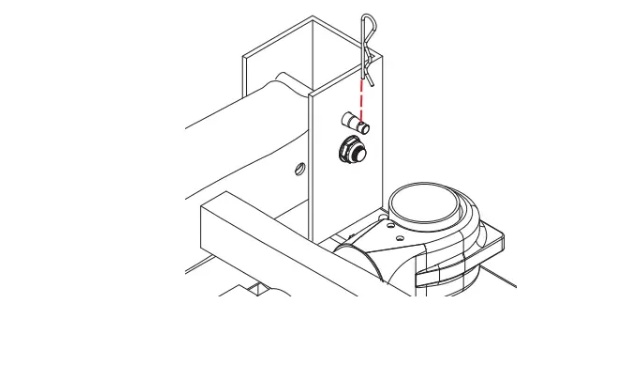

To remove the pin, remove the safety clip first.

It is possible to remove both of the H frames from the CP Rack. The H frames may then be hung from a truss.

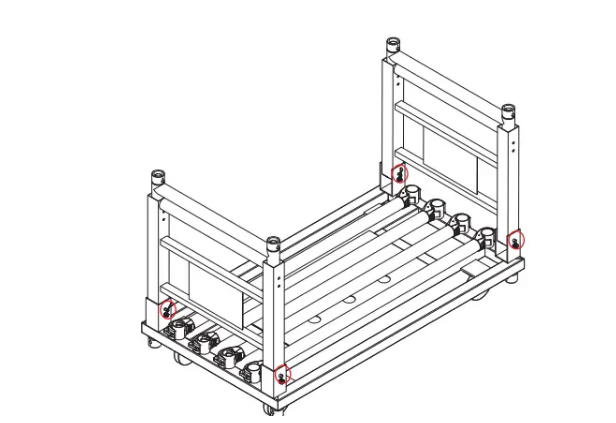

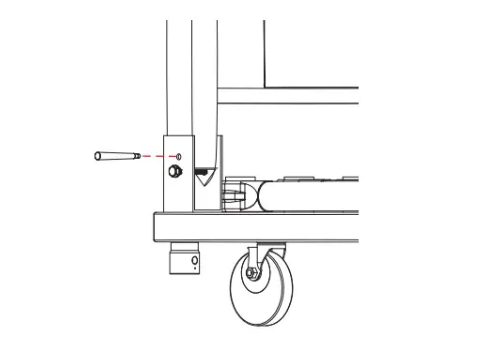

Insert the pin to lock the side rail into upright position.

Insert the safety clip into the pin.

Repeat steps 1-f and 1-g with all bases to lock the side rails.

Warning! Ensure that all attachment points are fully tightened. Failure to do so may cause safety hazards!

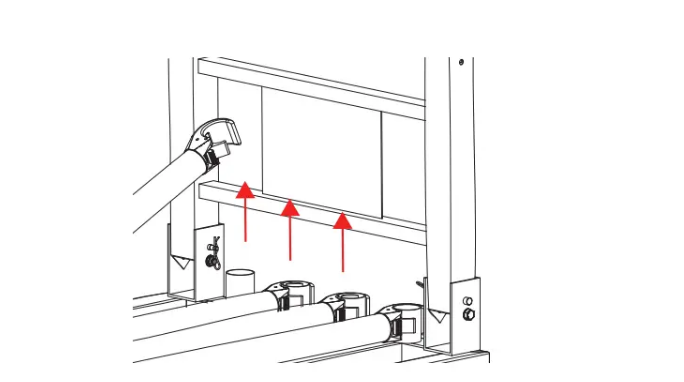

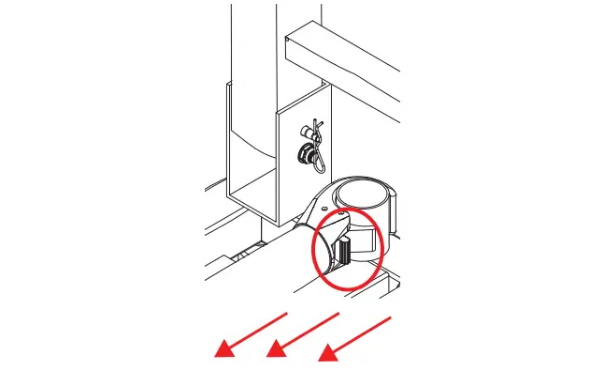

To detach the tubes from bases

a. Release the clamp by depressing the switch.
b. Remove the tube.
Repeat the process with the other clamp to release the tube completely.

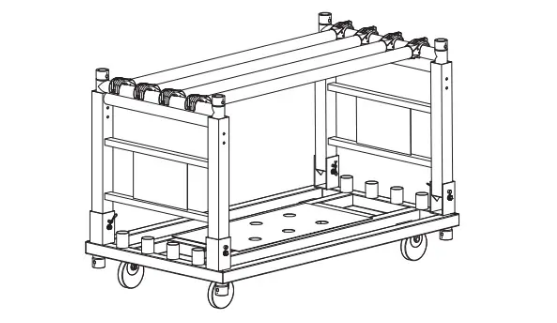

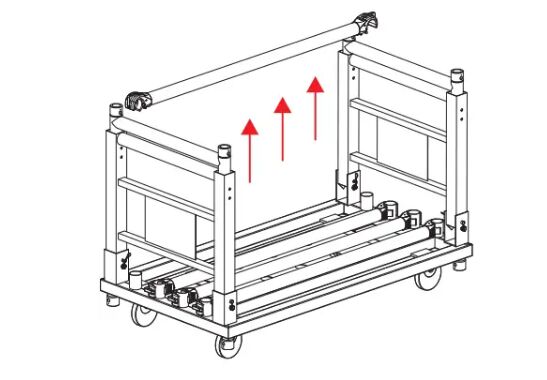

To connect the tube(s) to the H frames

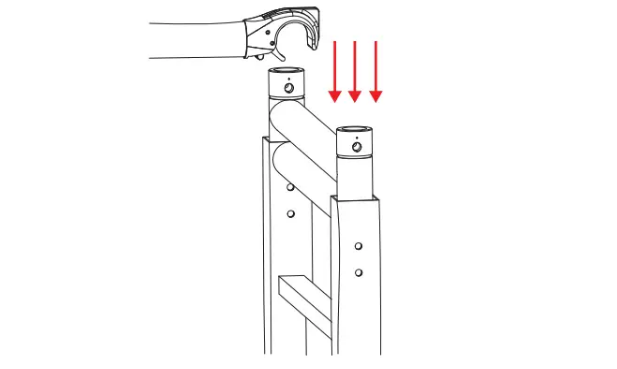

a. Ensure that the clamp is facing down and press the clamp onto the horizontal bar of the H frame
b. Ensure that the clamp is firmly attached to the H frame.
c. Repeat the previous steps with any other desired tubes:
- - The maximum load capacity for this product is 1,000 lbs. Do not exceed this weight, as failure to do so may cause safety hazards.

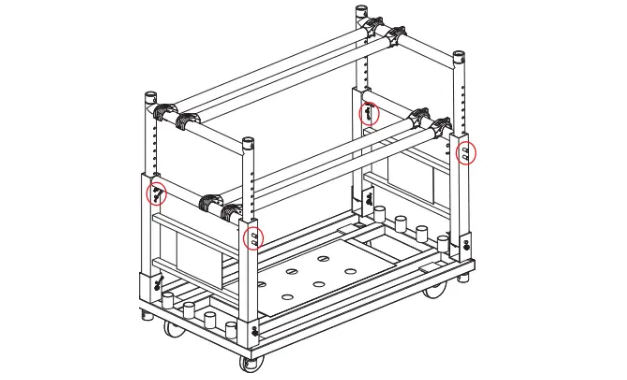

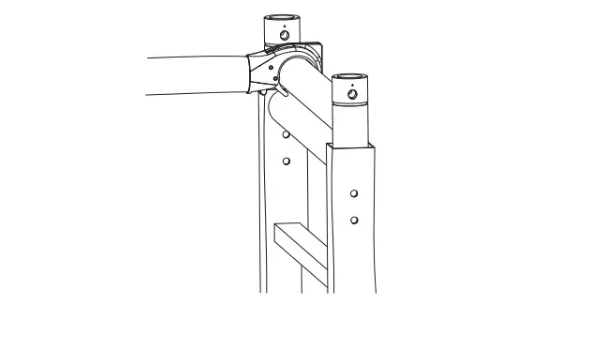

  It is possible to extend the H frames to double the height of the CP Rack. To extend the H frames
  - a. Remove safety clips locking H frame in place.
  - b. Extend or lower the pin to the desired height.
  - c. Re-insert the safety clips and pins to stabilize the H frames at the desired height.

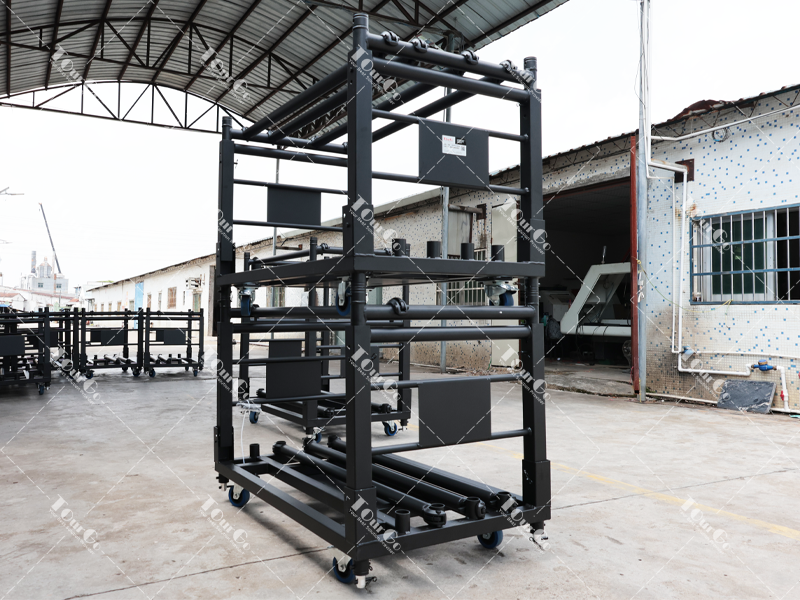

  - It is possible to stack another CP Rack on top of this product. Maximum stacking is 2 products high.
