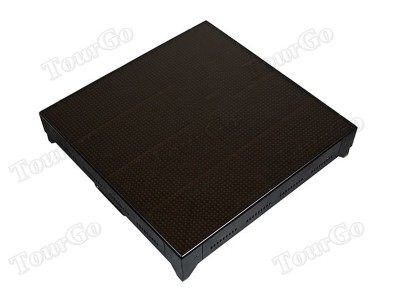

P8 Outdoor Interactive LED Video Dance Floor

P8 Outdoor Interactive LED Video Dance Floor
  • P8 Outdoor Interactive LED Video Dance Floor
  • P8 Video Floor
  • p8 LED Video Floors
  • p8 Stage LED Video Dance Floor
  • Led Video Dance Floor
  • P8 interactive led dance floor
  • P8 Rgb Led Dance Floor Video

Product Model : TG-LDP8

Product Features :
1. Pixel pitch: 8mm
2. Walking interactive design, Flexible and changeable effects
3. Loading Capactity: 500kg/m2
4. IP Grade: IP65


  • captcha

Product Detail



Product Tags

Product description

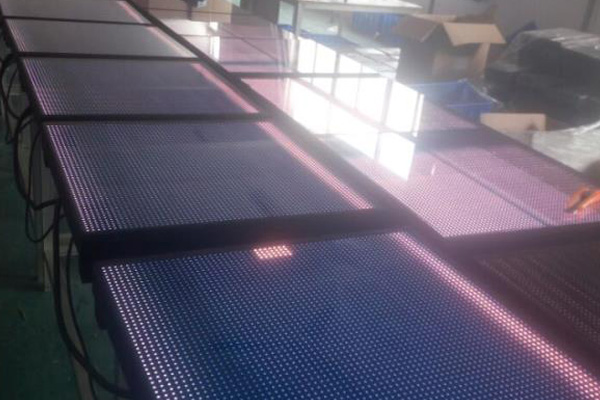

Floor LED display is a brand-new digital ground-based display with excellent protecting structure.

By adopting synchronous video control mode, the floor screen can represent video effect with soft color and high resolution, perfectly integrating virtual stage landscaping with interactive performance.


1. Components: sending cards, receive cards, software, network cable,computer and so on.

2. Using SMD 3 IN 1 LED light source, light bead spacing 8mm (P8).

3. The use of sheet metal base and tempered glass panel, ultra-thin, compact, high-end, beautiful, generous.

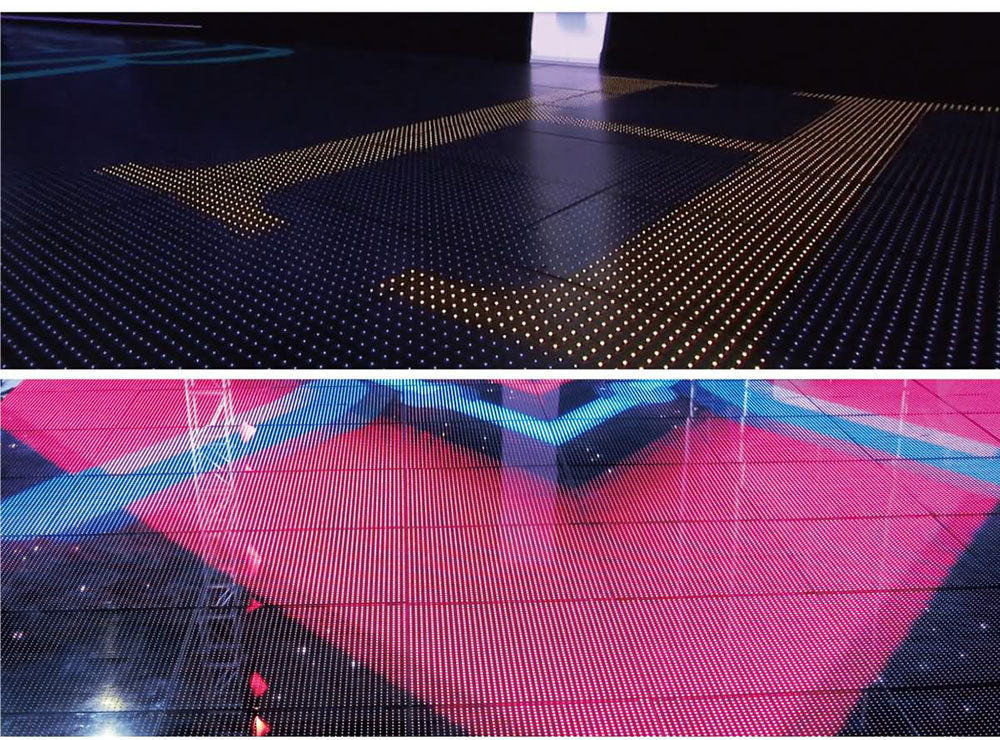

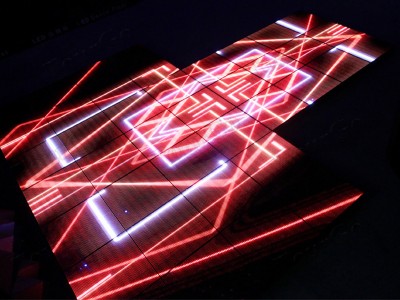

4. It can display different lighting effects, text, graphics, flash, video and so on.

5. Applicable to multi-purpose hall, stage, T stage show, car show and so on.



1. Super pixel, slim structure

2. Walking interactive design, Flexible and changeable effects

3. Tempered glass cover and high class appearance

4. High-end level

5. Flat and smooth connection, fast and convenient installation

6. Strictly pressure testing and can stand pressure 500kg/m2

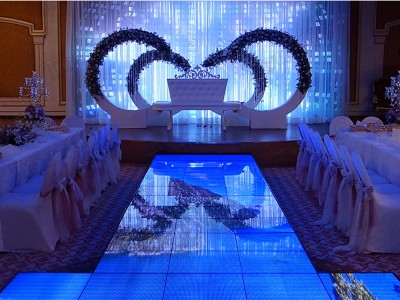

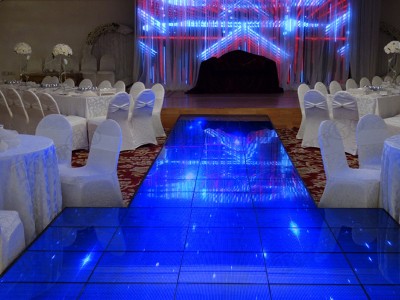

It’s widely used in Huge wedding, Dance Stage, Shopping Mall, ,discos, pubs, T-show, concerts, and dramas, bars, floor decorations and entertainment stages etc.


Dance Floor Led Stage Display Interactive

  • Previous:
  • Next:


    • Controller mode: LED Flash Computer Control System
    • Working Voltage: AC100-250V, 50/60Hz
    • Max Power: 200w
    • Pixel pitch: 8mm
    • Light source: SMD3528 RGB 3in1
    • Life span: >50,000Hours
    • Luminance: 500CD/m2
    • Cover color: Brown colour temper glass
    • Cover material: Temper glass
    • Isolating grade: class‖

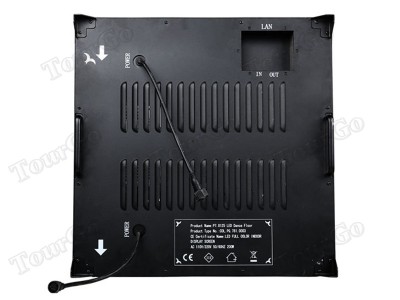

    • Housing material: metal
    • Beam angle: 110°
    • Working temperature: -20~ + 45 Degree
    • IP Grade: IP65

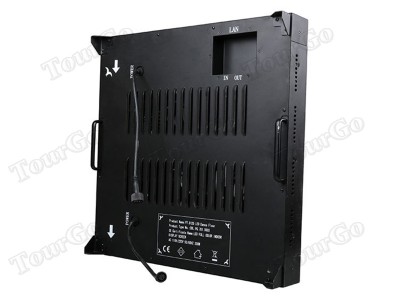

    • Cabinet size: 502*502*107mm
    • Net weight: 17kg

    LED Video Floor

    led dance floor

    led dance flooring

    1.  Why your factory provide not only  lighting truss, but also  flight case, portable stage, pipe and drape ,ect ?


    Actually, the reason is very simple. All our product need the similar raw material , like plywood, aluminum alloy tube. We just need buy the professional machines, hire the skillful workers and enhance the R& D Team. We hope we could provide “ One-Stop service” for our clients.

    Our concept is “ Tourgo , Build your dream”  Our goal is to win the bright future and be the No. 1 Pro sound & Light equipment manufacturer.


    2. Does Tourgo company provide the OEM service?


    Yes, Tourgo could provide the OEM service according to your request.

    We have the ten-year designers team, the customized flight case, portable stage, and  lighting truss also is available,  just need your idea!


    3. Does Tourgo company offer warranty for the sold products?


    Only if your products are purchased from Tourgo company, we promise life time warranty. In other words, if your products are purchased directly from us or our dealers, you can enjoy such warranty.


    4. Do you provide the flight cases parts for replacement I purchased from Tourgo company ?


    Well, almost all our flight cases parts are replaceable. You can replace them yourself. If you want to get them, you can contact us soon.


    5. What is the mean of Alphabet “U” in rack case catalog?


    For rack case, we offer 2U, 4U, 6U, 8U and other models of “U” cases. “U” here is a unit referring to inner height of the rack case . Usually, 1 U equals 1.75” (4.45cm).


    6. I want to distribute your products in my country. How can I become a distributor ?


    Tourgo has searched global deals for all our products. We will provide preferential offers for all deals, especially those in large amount. For most information about dealership, please visit our Distributor Wanted.


    7. What is the MOQ for your products?


    Tourgo requires no minimum order quantity, and we can ship single item samples or large orders worldwide for any clients who are in need of our products


    8. Can I get any discount for my order?


    Yeah, you can contact our sales team, depending on the amount of your order

    - The products you need

    - The exact desired order quantity

    - Your desired time frame

    - Any special packing instructions

    With this information we will get back to you with a quotation.

    We also offer limited time promotion, please notice our post in our website.


    9. What is your payment term, delivery time? Do you have the reliable freight agent?


    The payment term is T/T, Western Union.

    Delivery time is 7 – 15 days after we get the payment. Surely, if you need the goods urgently, we  try our best to meet your demand. Moreover, we  will send your goods pictures to you before the shipping

    Yes, as a leading manufacturer, we have the reliable freight agent and has done the business with them for many years. If you have your own agent,  we would like to coordinate with them fully.


    10. Will you send the drawing of the custom product for our confirmation before the production?


    Yes, Absolutely! Like custom flight case, lighting truss project, portable stage project. We will provide the professional drawing for your confirmation before our production.
